4.2. Assembly Instructions
NOTE:
Make sure whether there is NO foreign substance sticking around a part covered with waterproof seal.

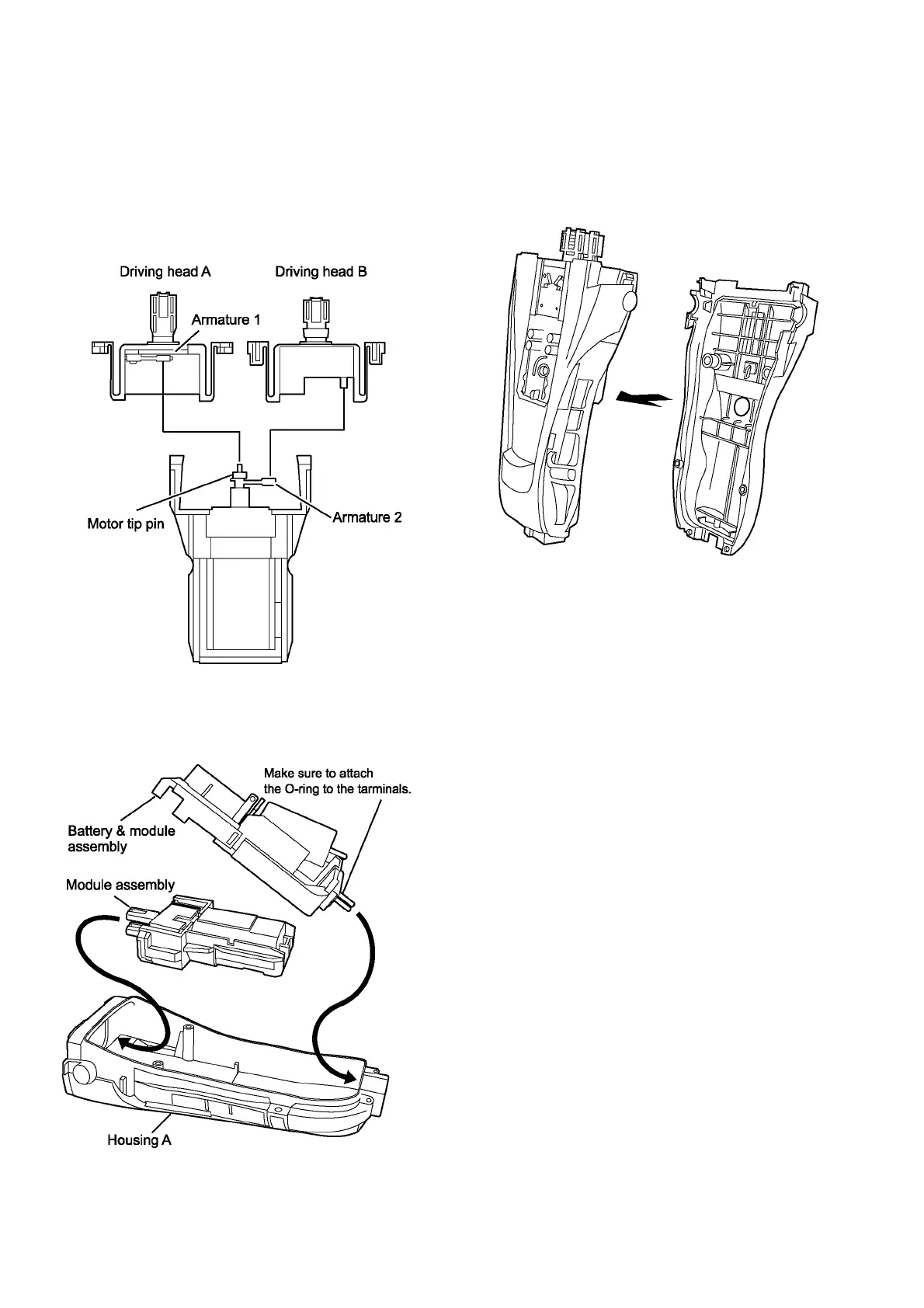

1. Install the driving A in the motor mounting base after
inserting the motor tip pin into the hole of armature 1 of
the driving A. Then, install the driving head B in the
above assembly after inserting the driving head B axis
into the hole of the armature 2 of the motor.
2. Insert the battery & module assembly into the housing A.
3. Put the motor assembly into the housing A.
4. Set the housing A and B and tighten 6 screws. And
attach the side panels and tighten a screw on bottom.
5. Set the trimmer and the trimmer driving bar.
