Panasonic FPG-C24R2H - Page 208

7-58

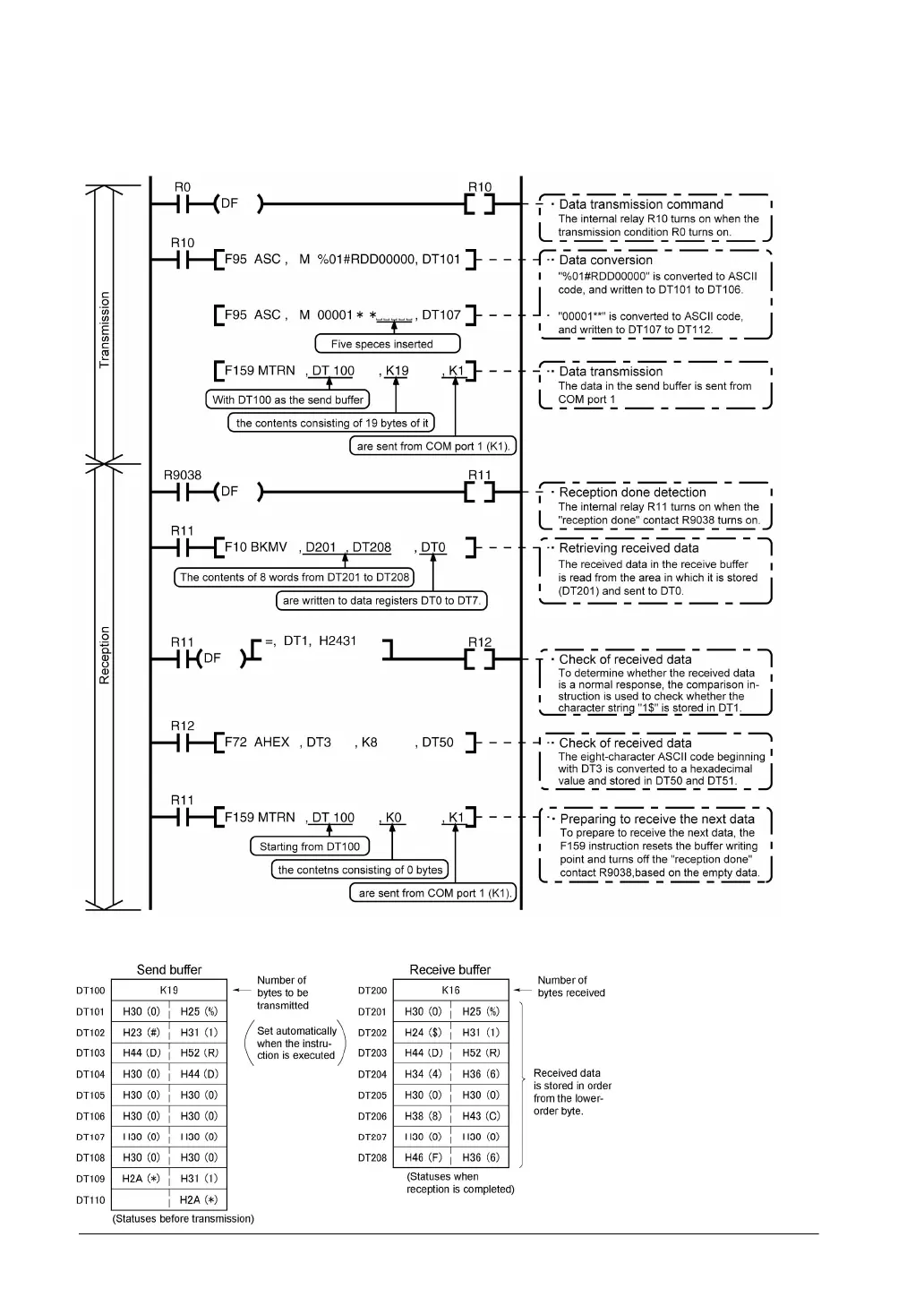

Sample program
In the following example, the FP series PLC is connected to COM1 port.
Buffer statuses
The tables below show the statuses of the send and receive buffers when the sample program is run.
