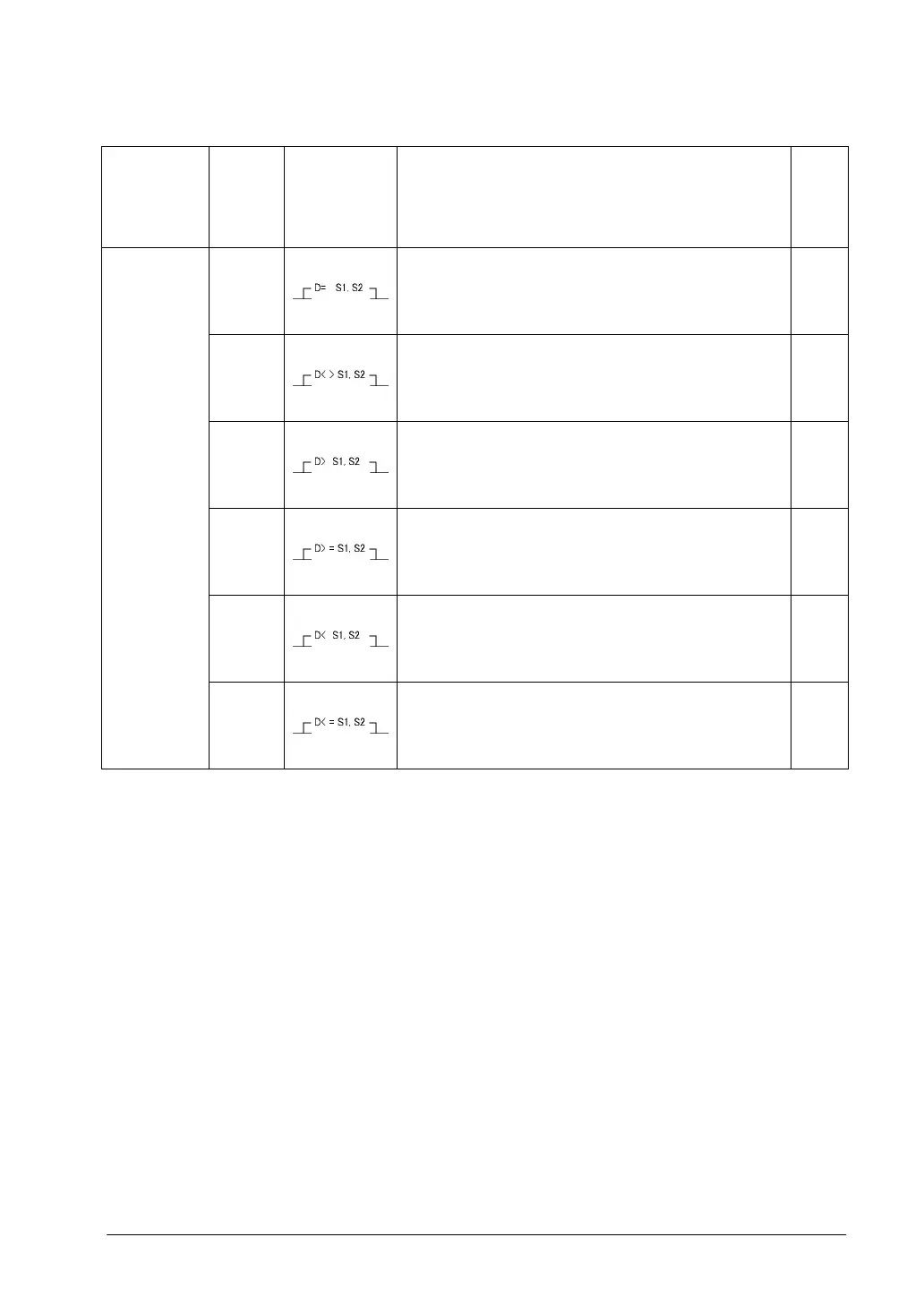

Name Boolean Symbol Description Steps
AND= Connects a Form A (normally open) contact serially by
comparing two 32-bit data in the comparative condition
“(S1+1, S1)=(S2+1, S2)”.
9
AND<> Connects a Form A (normally open) contact serially by
comparing two 32-bit data in the comparative condition
“(S1+1, S1)<(S2+1, S2)” or “(S1+1, S1)>(S2+1, S2)”.
9
AND> Connects a Form A (normally open) contact serially by
comparing two 32-bit data in the comparative condition
“(S1+1, S1)>(S2+1, S2)”.
9
AND>= Connects a Form A (normally open) contact serially by
comparing two 32-bit data in the comparative condition
“(S1+1, S1)>(S2+1, S2)” or “(S1+1, S1)=(S2+1, S2)”.
9
AND< Connects a Form A (normally open) contact serially by
comparing two 32-bit data in the comparative condition
“(S1+1, S1)<(S2+1, S2)”.
9
32-bit data
compare
(AND)
AND<=
Connects a Form A (normally open) contact serially by
comparing two 32-bit data in the comparative condition
“(S1+1, S1)<(S2+1, S2)” or “(S1+1, S1)=(S2+1, S2)”.
9
