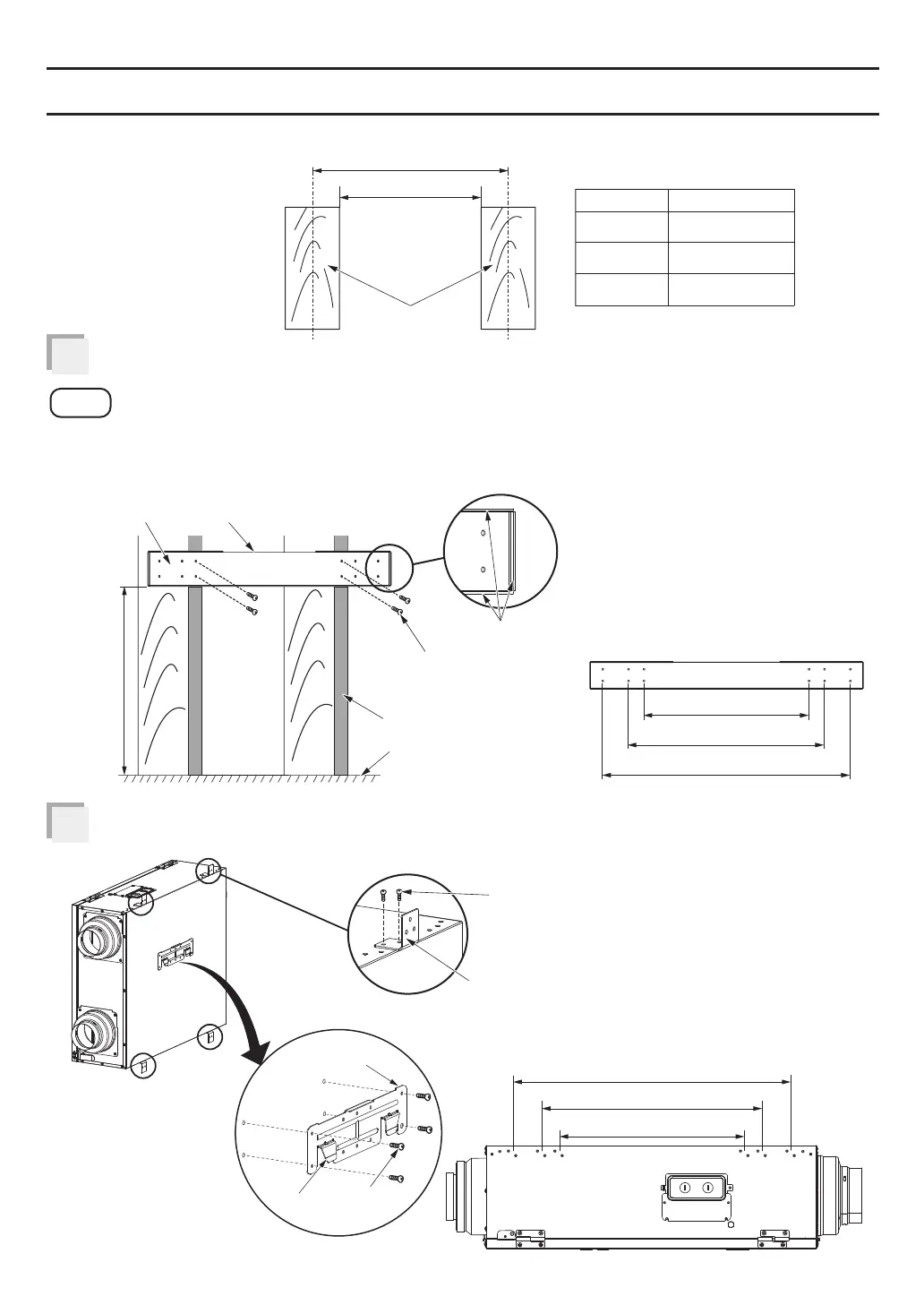

INSTALLATIONⅠ(WALL MOUNT)
7
This method can be used in stud as below.
Unit: inches (mm)
Note
(1)Attach with flanged edge facing outward and edge without flange facing upward
when mounting wall bracket.
(2)Choose the mounting hole on wall bracket according to the distance between studs.
Unit: inches (mm)
A B
24 (609.6)
16 (406.4)
19 (482.6) 17 1/2 (444.5)
14 1/2 (368.3)
22 1/2 (571.5)
A
B
Stud
4-long screws
(ST4.2X30)
Stud
Wall bracket
Floor
Edge without flange
Flange
>31 1/2 (800)
24 (609.6)
16 (406.4)
19 (482.6)
2-screws
(M4X8)
4-screws
(M4X8)
L plate
Install L plates
HangerⅠ
Install HangerⅠ
Claw
24 (609.6)
16 (406.4)
19 (482.6)
Mount hangerⅠ and L plates.
1
2
Mount wall bracket.
To Next Page
