FZ-10

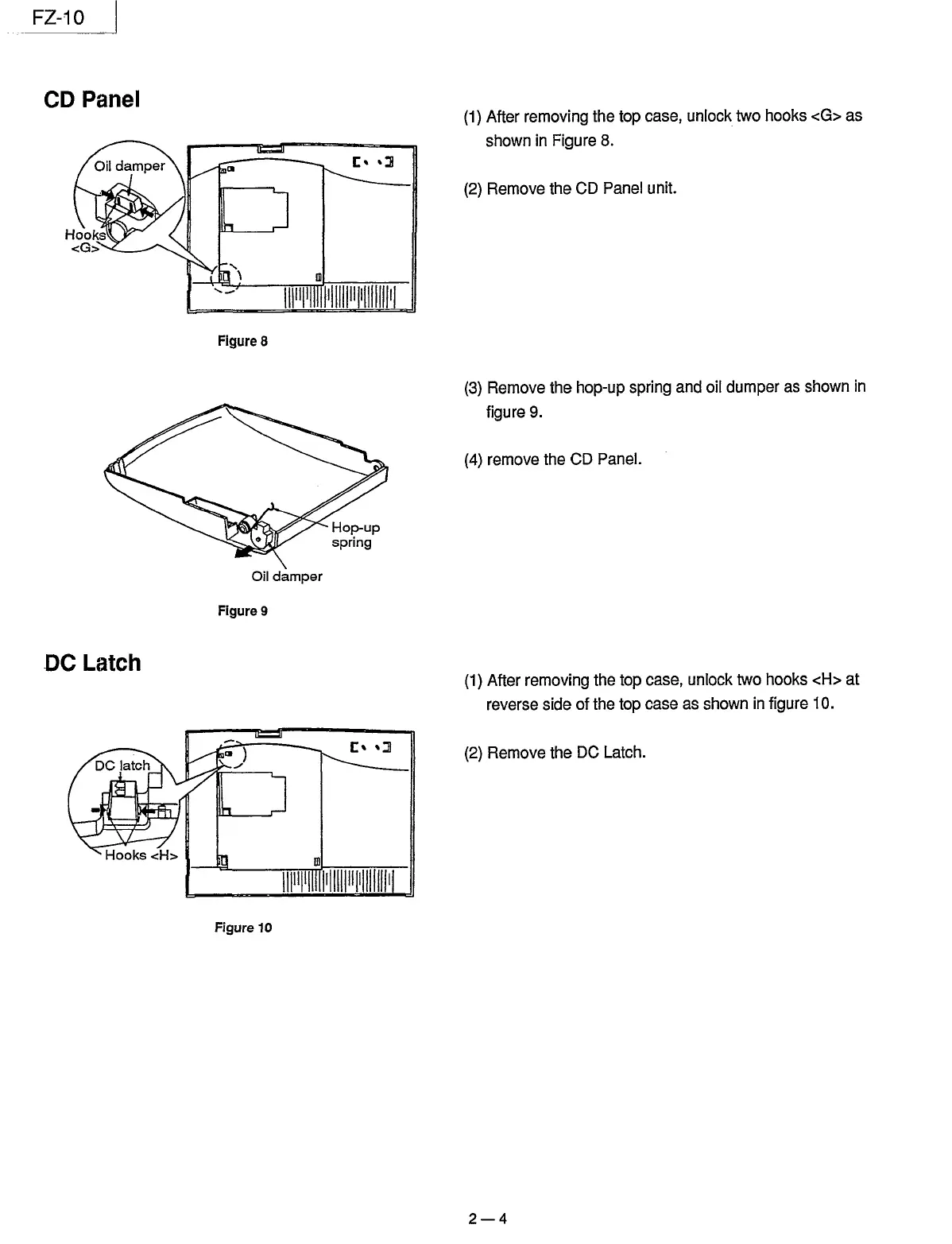

CD Panel
DC
Latch
m
Figure
8
Oil
damper
Figure
9
Figure
10
(1)
After
removing
the
top
case,
unlock
two
hooks
<G>
as
shown
in
Figure
8.
(2)
Remove
the
CD
Panel
unit.
(3)
Remove
the
hop-up
spring
and
oil
dumper
as
shown
in
figure
9.
(4)
remove
the
CD
Panel.
(1)
After
removing
the top
case,
unlock
two
hooks
<H>
at
reverse
side
of
the top
case
as
shown
in
figure
10.
(2)
Remove
the
DC
Latch.
2-4
