C760
Power PCB
Main PCB
0
Figure 4
Figure 5
LED guide panel
Figure 6
CN420
Figure 7
FMV
cover
2-3
Fz.:10

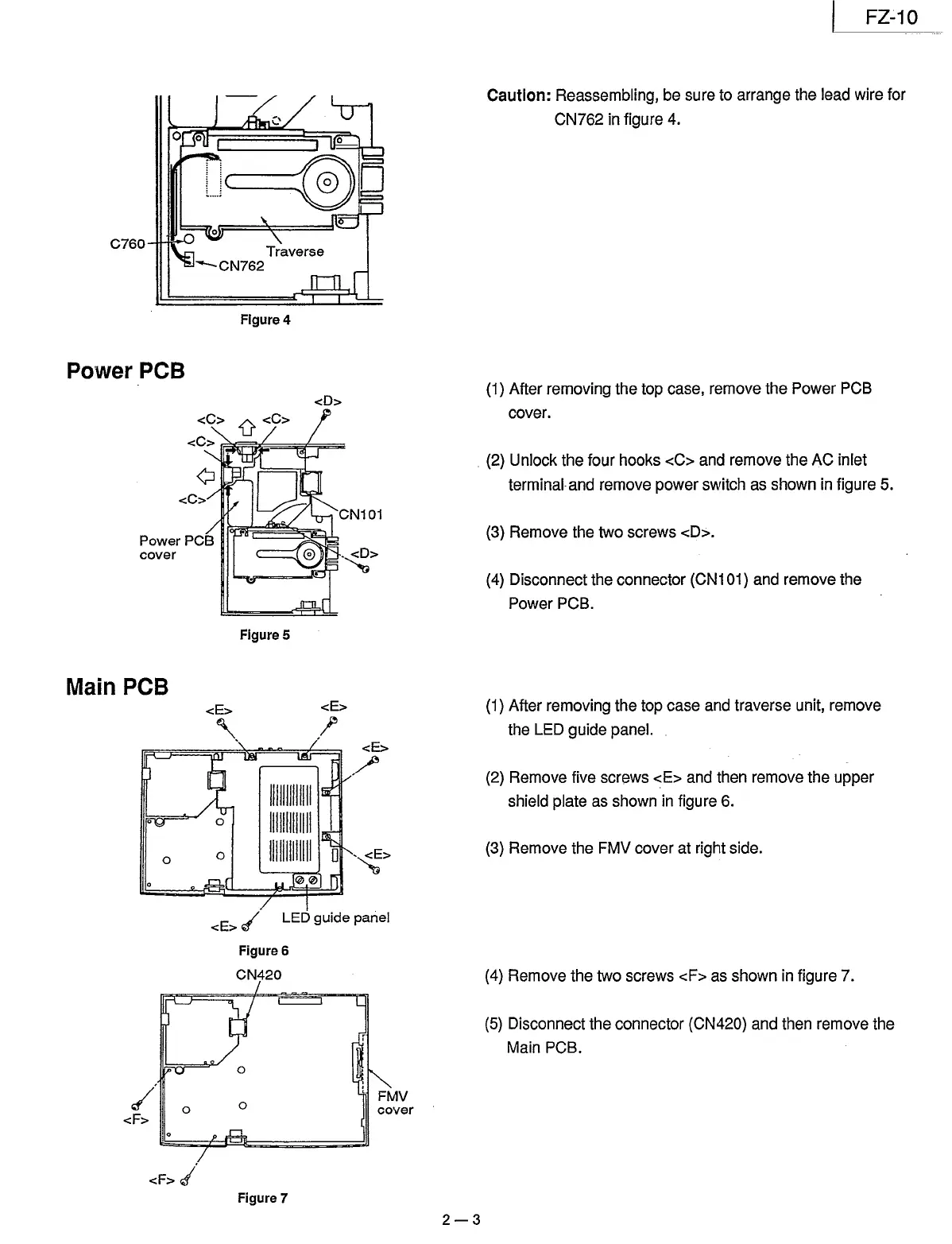

Caution: Reassembling, be sure to arrange the lead wire for
CN762 in figure 4.
(1) After removing the top case, remove the Power PCB
cover.
(2) Unlock the four hooks <C> and remove the AC inlet
terminal-and
remove power switch as shown in figure 5.
(3) Remove the two screws <D>.
(4) Disconnect the connector (CN101) and remove the
Power PCB.
(1) After removing the top case and traverse unit, remove
the LED guide panel.
(2) Remove five screws <E> and then remove the upper
shield plate as shown in figure 6.
(3) Remove the FMV cover at right side.
(4) Remove the two screws <F> as shown in figure 7.
(5) Disconnect the connector (CN420) and then remove the
Main PCB.
