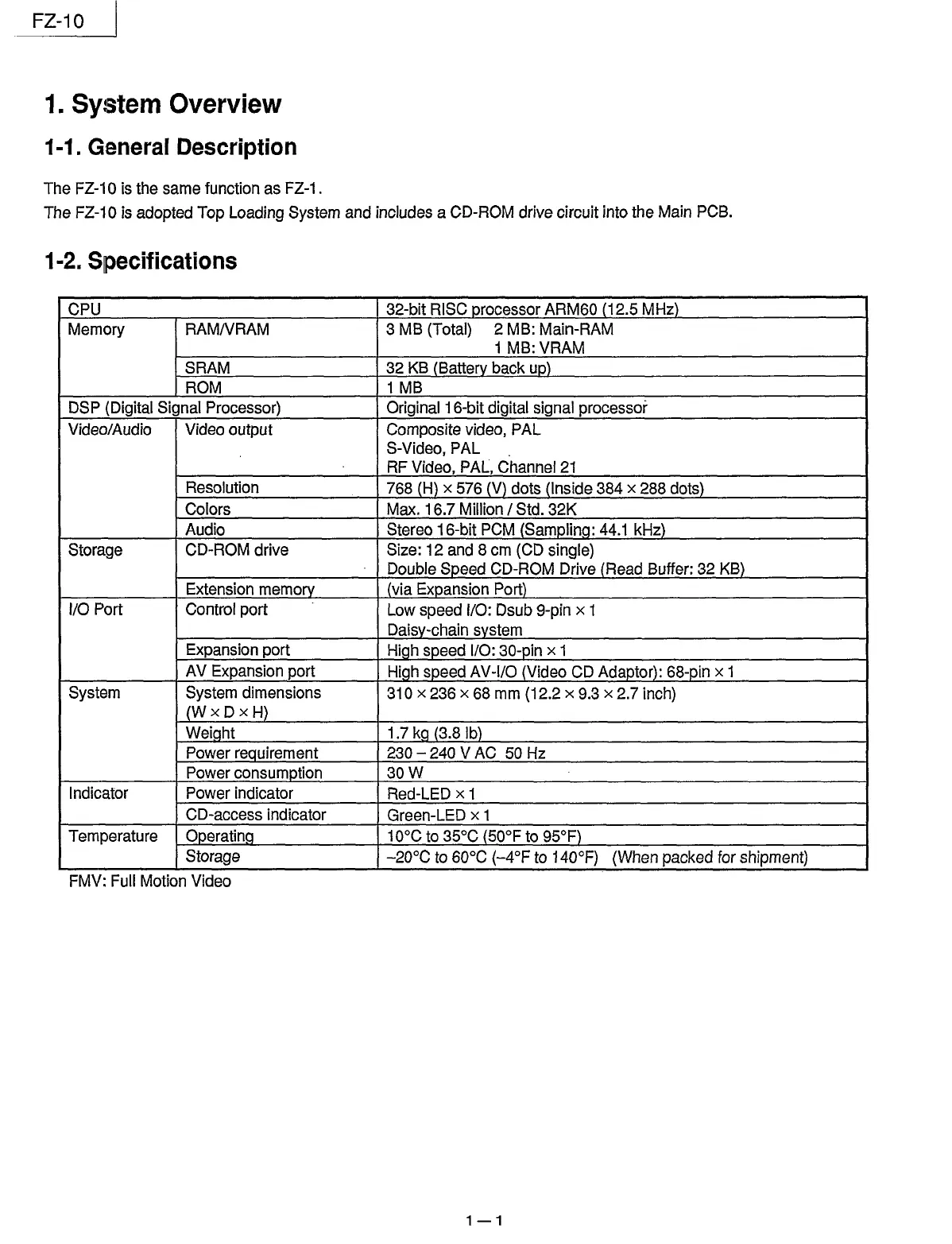

1. System Overview
1-1. General Description
The FZ-10 is the same function as FZ-1.
The FZ-10 is adopted Top Loading System and includes a CD-ROM drive circuit into the Main PCB.
1-2. Specifications
CPU
32-bit RISC orocessor ARM60 (12.5 MHz)
Memory RAMNRAM 3 MB (Total) 2 MB: Main-RAM
1 MB:VRAM
SRAM
32 KB (Batterv back uo)
ROM 1 MB
DSP (Digital Signal Processor) Original 16-bit digital signal processor
Video/
Audio Video output Composite video, PAL
S-Video, PAL
RF Video, PAL, Channel 21
Resolution
768 (H) x 576 (V) dots (Inside 384 x 288 dots)
Colors
Max. 16.7 Million/ Std. 32K
Audio
Stereo 16-bit PCM (Samplina: 44.1 kHz}
Storage CD-ROM drive
Size: 12 and 8 cm (CD single)
Double Soeed CD-ROM Drive (Read Buffer: 32 KB)
Extension memory
(via Expansion Port)
1/0 Port
Control port
Low speed 1/0: Dsub 9-pin x 1
Daisv-chain
svstem
Expansion port
Hiah speed 1/0: 30-pin x 1
AV Expansion port
Hiah speed AV-I/O (Video CD Adaptor): 68-pin x 1
System System dimensions
310 x 236 x 68 mm (12.2 x 9.3 x 2.7 inch)
(Wx D x H}
Weiaht
1.7 ka (3.8 lb)
Power reauirement 230 - 240 V AC 50 Hz
Power consumotion 30W
Indicator Power indicator
Red-LED x 1
CD-access indicator
Green-LED x 1
Temperature
Ooeratina 10°c to 35°C (50°F to 95°F)
Storage
-20°C to 60°C (-4°F to 140°F) (When packed for shipment)
FMV: Full Motion Video
