Panasonic KX-TG1034B

77
KX-TG1034B/KX-TG1035S/KX-TGA101B/KX-TGA101S
13.2. Circuit Board (Base Unit_Operation)
13.2.1. Flow Solder Side View
KX-TG103 H
REPEAT
ERASE
LOCATOR
110
PQUP11503Z
VOL_DOWN VOL_UP
A
STOP
PLAY
CN10
SKIP ANS_ON
LED2
LED1
GND
LED1 LED2
VDD
PbF

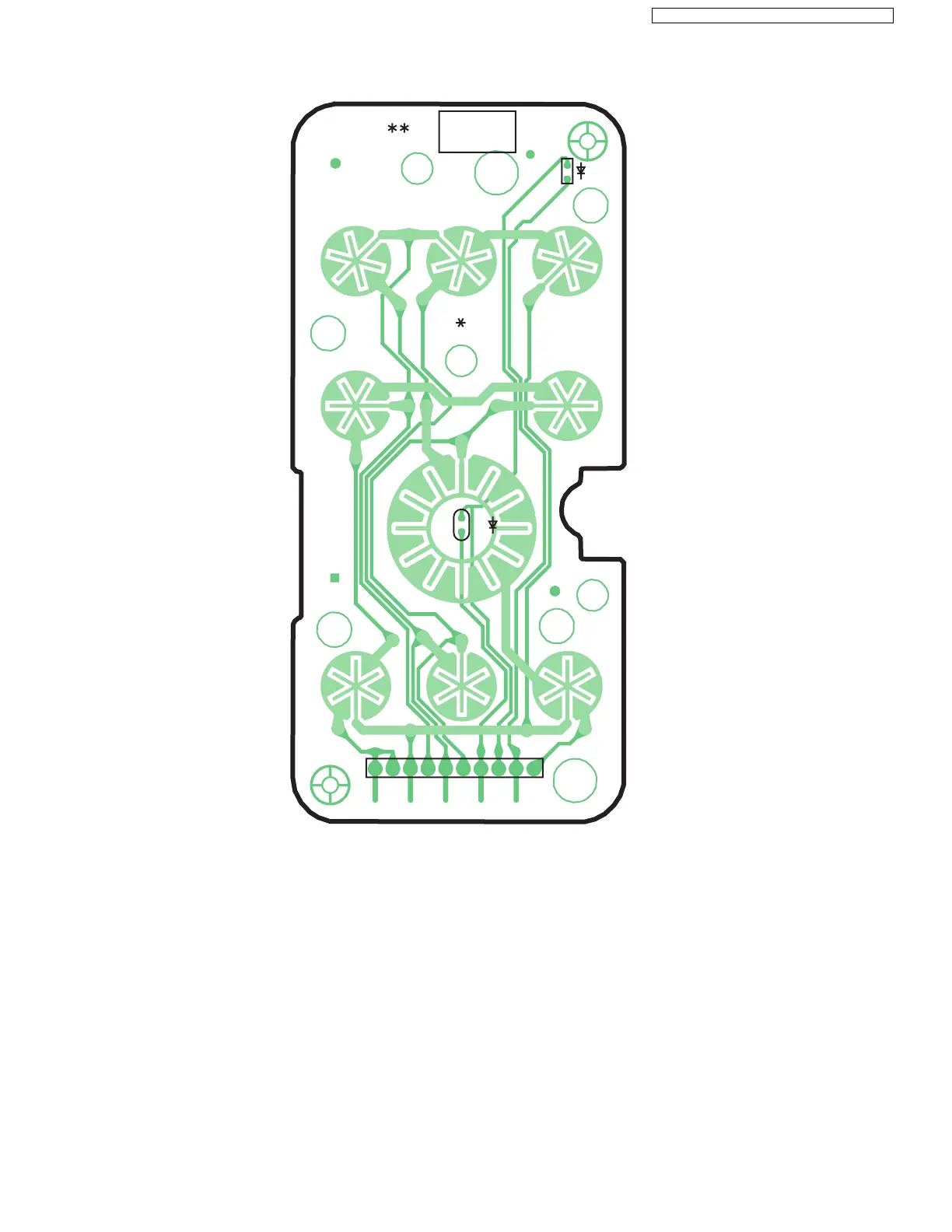

KX-TG1034/1035 CIRCUIT BOARD (Base Unit_Operation (Flow Solder Side View))
