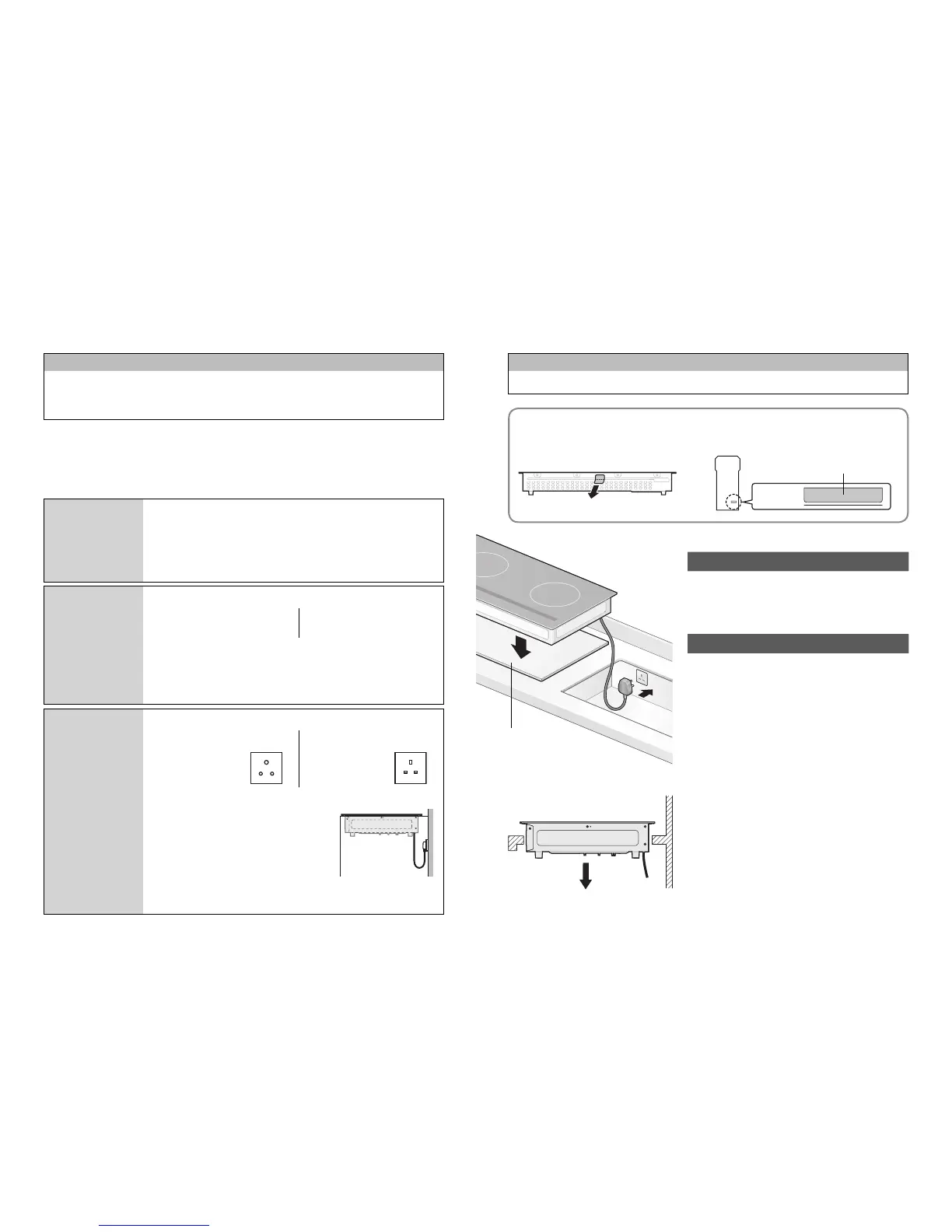

Electrical Work Installing the Appliance
Warning
• Electrical work must be performed by a legally qualifi ed electrician.
• Be sure to establish the earth connection. (Provide socket wiring for
single-pole earthing.)
Note
• Wire the appliance following local regulations concerning wiring, earthing and
safety applied in the area.
•
Install the socket at a location where it can be easily disconnected in an emergency.
• Be careful of the plug's direction, avoiding twist of or load on the power cord.
Dedicated
circuit
Single-phase 220 V/20 A (with a circuit breaker)
■ Electric wire for house wiring
Single wire of at least 2.0 mm in diameter
• Stranded wire of at least 3.5 mm
2
can also be used
for the wall socket (box type).
Earth leakage
circuit breaker
■ Rated current
• KY-E227D:
30 A
•
KY-C227D/KY-A227D:
20 A
■ Rated sensitivity current: 30 mA
* In accordance with the electrical wiring rules,
incorporate the breaker and the earth leakage circuit
breaker in the home electrical wire.
Wall socket
■ Type of socket
• KY-E227D: •
KY-C227D/KY-A227D:
BS546 type
(15 A)
BS1363 type
■ Installation Location
• Built-in:
Install the socket at a location
where the plug can be
disconnected after installation.
• Free-standing:
Install the socket at a location where it is not exposed
to hot air, water or splattered food.
Warning
• Do not disassemble the top plate.
Before installation, remove the serial number sticker on the back of the appliance.
1) Tear off along perforation. 2) Attach it on the Guarantee Certifi cate.
Free-standing
1
Insert the plug to the socket.
• Do not place paper or sheet under
the appliance.
Built-in
1
Insert the plug to the socket.
2
Embed the appliance
in the countertop cutout.
• Do not drop the appliance on the
countertop.
• Make sure that the spaces between
the countertop and the edge of the
bottom surface of the top plate are
even in the front, back, right and left.
(If the power cord is caught between
the appliance and the cabinet, the
appliance body fl oats and the spaces
are uneven.)
Serial No.
Attach here.
1
2
Fig.: Built-in setting
Template
• Lay it to avoid
damage of the
countertop.
• Insert
horizontally.
