Panasonic LCD-2016 - Page 8

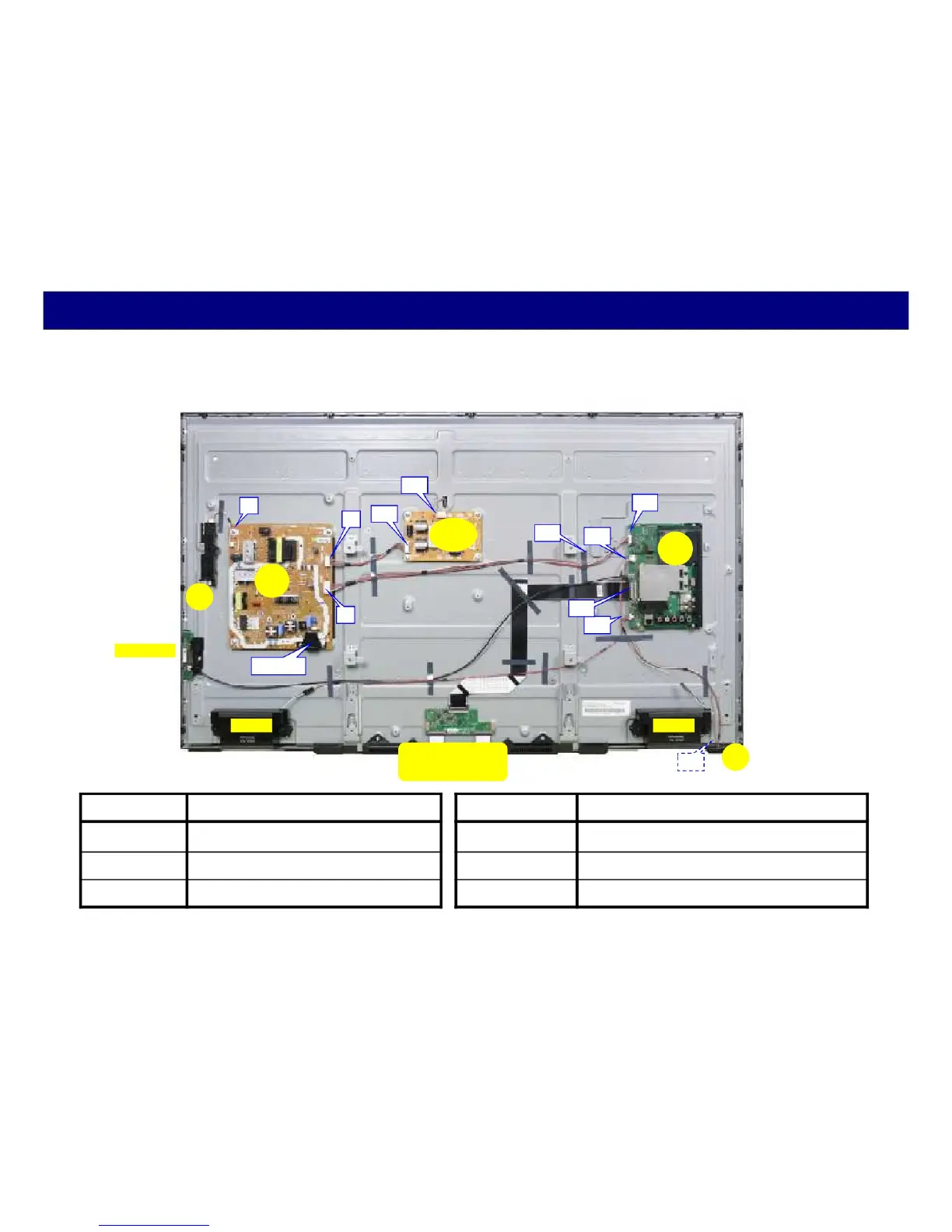

Board Layout -2
A+P+LD/LDP
P5
P4
P
GK
P2
WiFi Module
AC input
Speaker
LD2
LD1
LD A15 A10
A19
A12
(T-CON)
Not repairable,
One of the panel module
( 49DS630 )
A02
A
Speaker
K10 K
Board Name Function Board Name Function
A-Board Main Board GK-Board Key
P-Board Power supply for Signal Process K-Board Remote Receiver, Power LED
LD-Board Power supply for Backlight Drive
8
