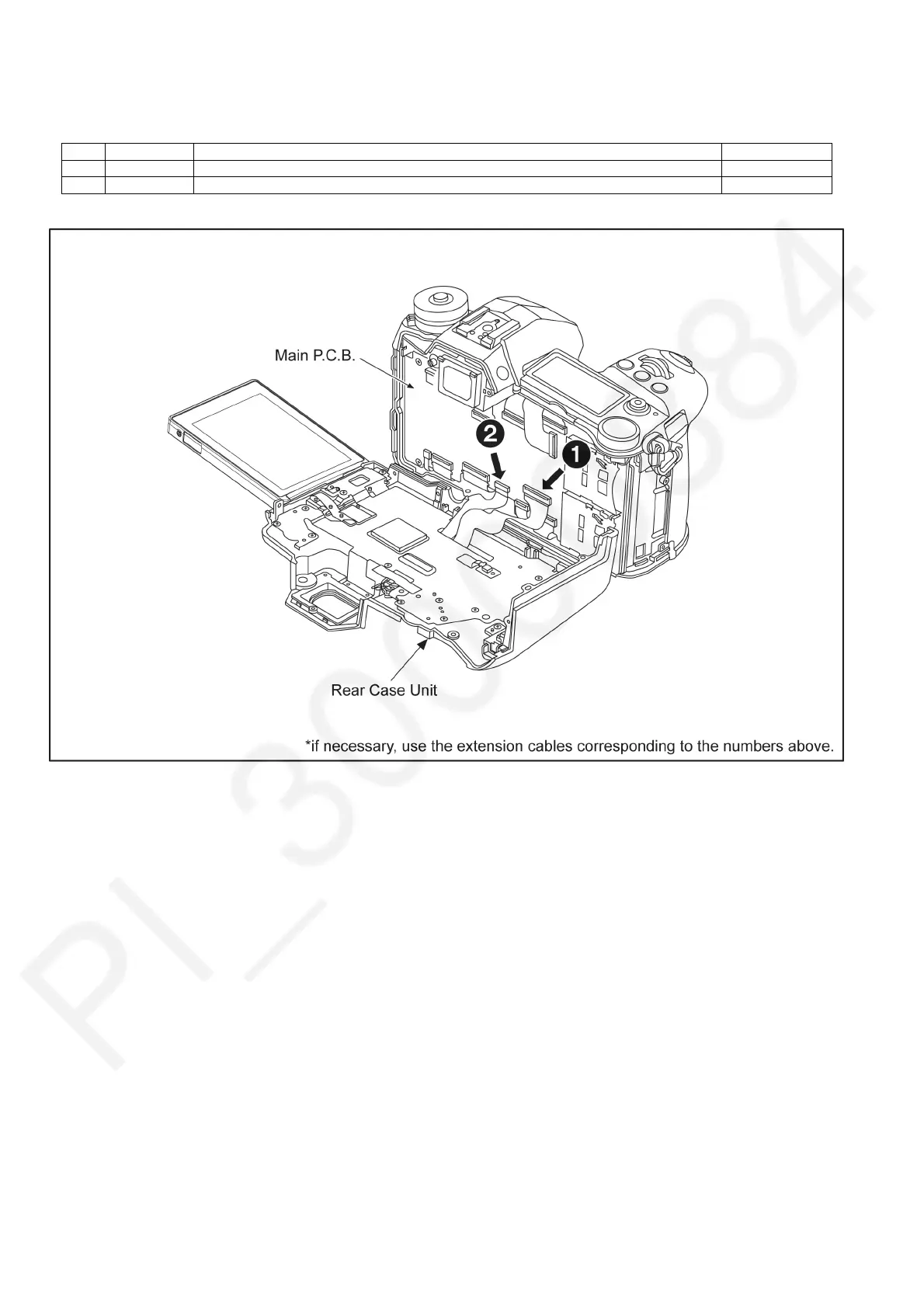

8.4. Service Position (When checking the each P.C.B.)
This service position is used for checking and replacing parts. Use the following extension cables for servicing.
Table S1 Extension Cable List
No. Parts No. Connection From
1 RFKZ0477 FP4001(MAIN P.C.B.)←→LCD UNIT 45pin / 0.3 FFC
2 RFKZ0626 FP6009(MAIN P.C.B.)←→REAR PLATE UNIT(REAR OPERATION FPC) 21pin / 0.3 FFC
