55
10 Measurements and Adjustments

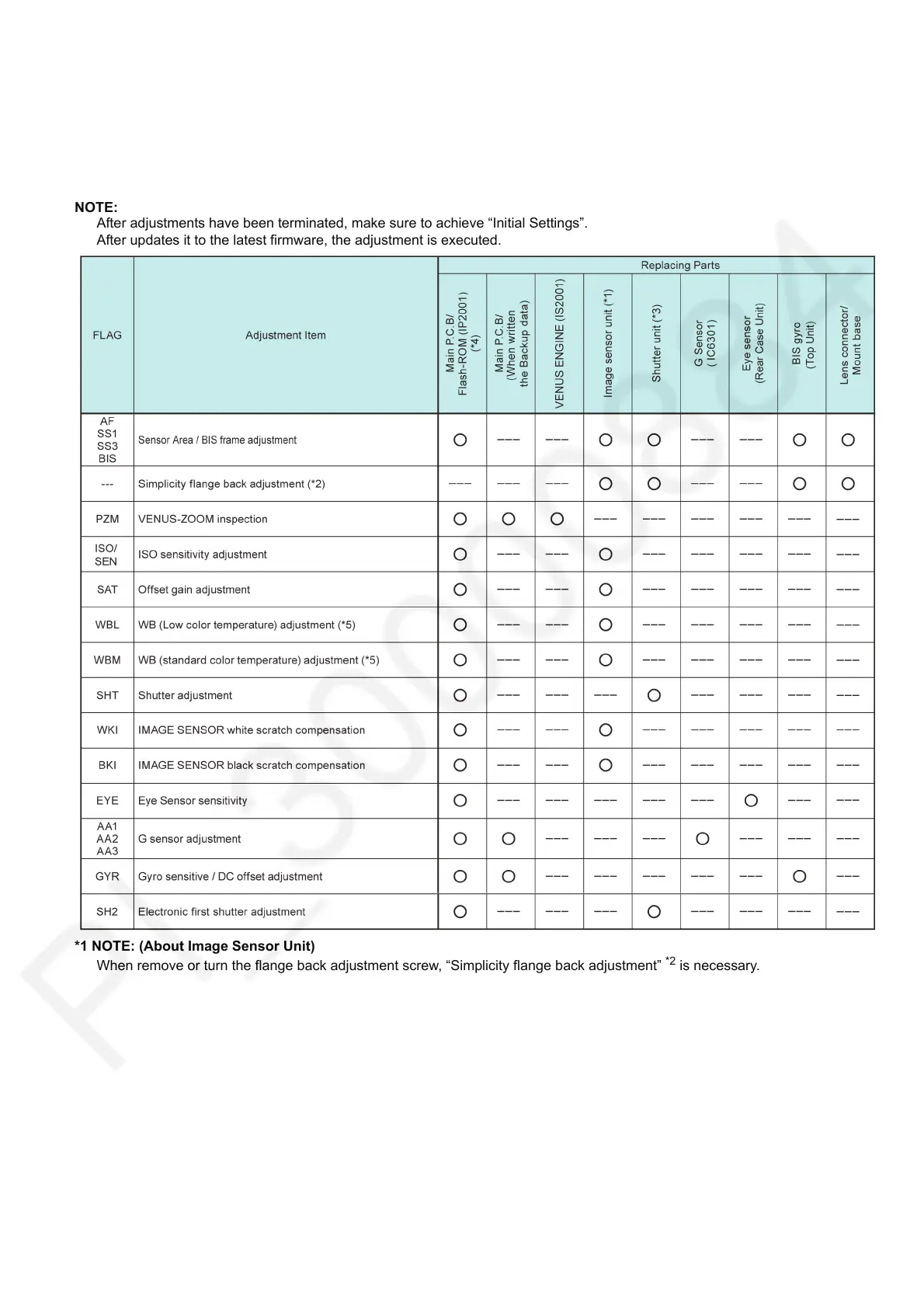

10.1. Matrix Chart for Replaced Part and Necessary Adjustment
The relation between Replaced part and Necessary Adjustment is shown in the following table.
When concerned part is replaced, be sure to achieve the necessary adjustment(s).
As for Adjustment condition/procedure, consult the “Adjustment Manual” which is available in Adjustment software.
NOTE:
After adjustments have been terminated, make sure to achieve “Initial Settings”.
After updates it to the latest firmware, the adjustment is executed.
*1 NOTE: (About Image Sensor Unit)
When remove or turn the flange back adjustment screw, “Simplicity flange back adjustment”
*2
is necessary.
To Next Page
