• Function buttons ([Fn7] to [Fn11]) (P26)
are touch icons.
Touch the [ ] tab on the recording screen to
display them.
45
47
48
49
51
52
53
31
54
35 36
41
42
37
60 5657
33
32
44
43
50
55
46
34 38 39
40
59 58
31

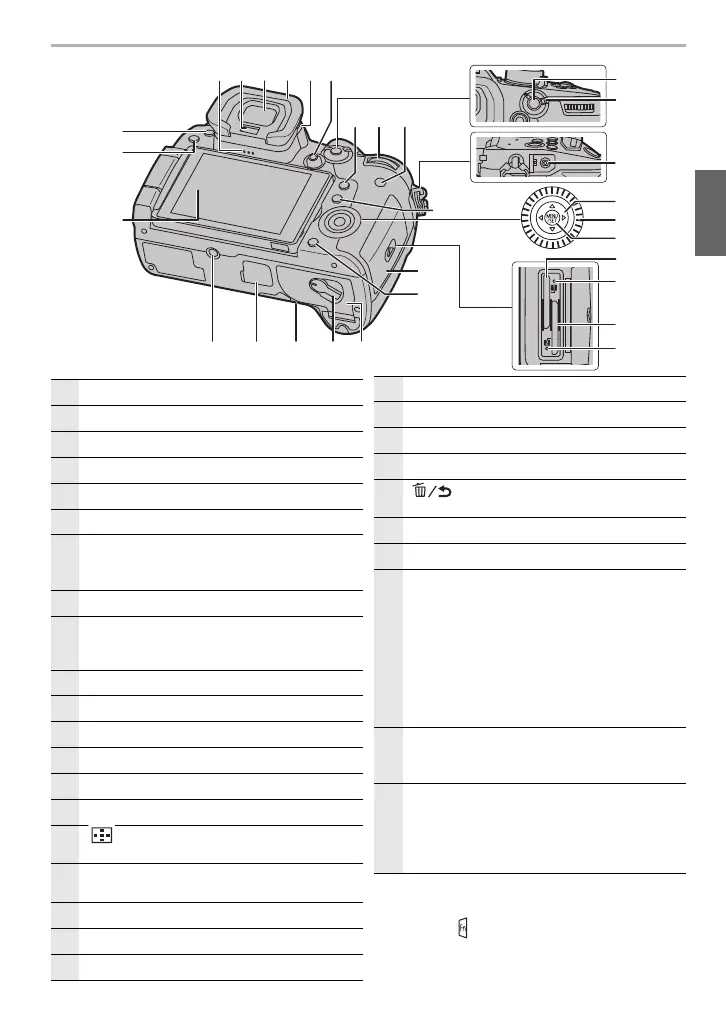

Touch screen (P23)/monitor (P106)
32
[(] (Playback) button (P70)
33
[LVF] button (P21)/[Fn5] button (P26)
34
Speaker
35
Eye sensor (P21)
36
Viewfinder (P21)
37
Eye cup
• Keep the eye cup out of reach of children to
prevent swallowing.
38
Diopter adjustment dial (P14)
39
Joystick (P19, 33)/Function button (P26)
Centre (Fn12)/3 (Fn13)/1 (Fn14)/4 (Fn15)/
2 (Fn16)
40
[Q.MENU] button (P25)/[Fn2] button (P26)
41
Rear dial (P18)
42
[DISP.] button (P21)
43
[AF/AE LOCK] button (P35)
44
Focus mode lever (P30, 34)
45
[REMOTE] socket
46
[ ] (Auto Focus Mode) button (P30)/
[Fn3] button (P26)
47
Cursor buttons (P18)/Function button (P26)
3 (Fn17)/1 (Fn18)/4 (Fn19)/2 (Fn20)
48
Control dial (P18)
49
[MENU/SET] button (P18, 24)
50
Card slot 1 (P11)
51
Access lamp (card 1) (P12)
52
Card slot 2 (P11)
53
Access lamp (card 2) (P12)
54
Card door (P11)
55
[ ] (Delete/Cancel) button (P73)/
[Fn4] button (P26)
56
Battery door (P11)
57
Release lever (P11)
58
DC coupler cover (P120)
• When using an AC adaptor, ensure that the
Panasonic DC coupler (DMW-DCC12:
optional) and AC adaptor (DMW-AC10G:
optional) are used.
• Always use a genuine Panasonic AC adaptor
(DMW-AC10G: optional).
• When using an AC adaptor, use the AC cable
supplied with the AC adaptor.
59
Cover for the battery grip connector
• Keep the cover for the battery grip connector
out of reach of children to prevent swallowing.
60
Tripod mount
• It may not be possible to attach and securely
fasten a tripod with a screw length of 5.5 mm
(0.22 inch) or more to the camera. Doing so
may also damage the camera.
