Before Use

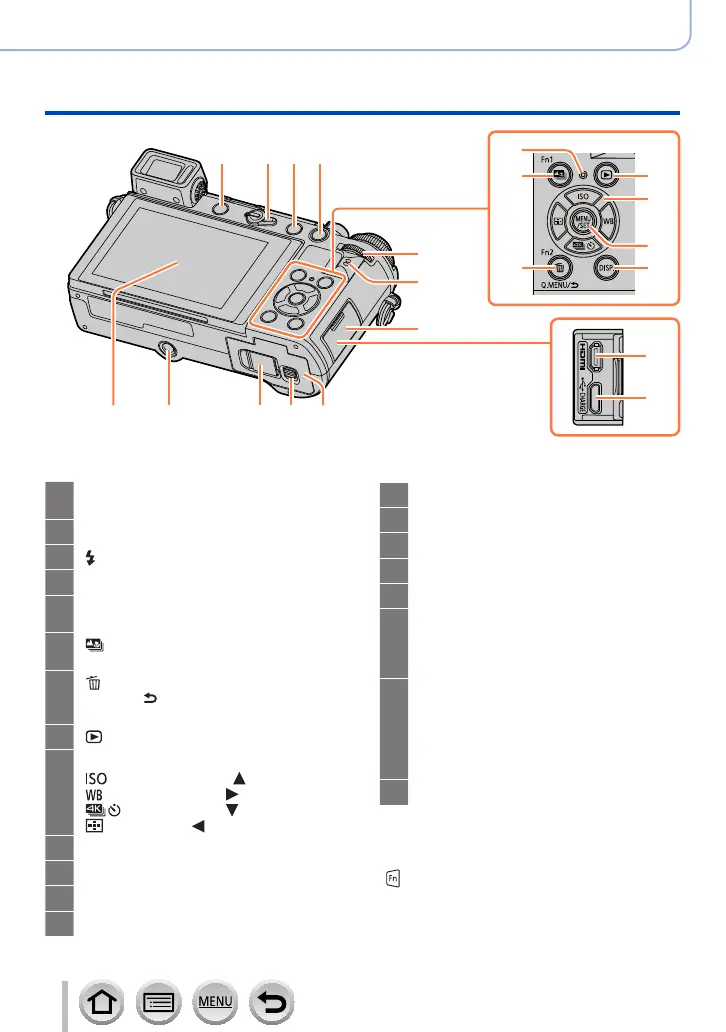

Names and Functions of Main Parts
22
[LVF] button (→45) /
[Fn3] button (→60)
23
Focus mode lever (→96, 108)
24
[ ] (Flash open) button (→161)
25
[AF/AE LOCK] button (→111)
26
Charging lamp (→25) /
WIRELESS connection lamp (→253)
27
[ ] ([Post Focus]) button (→132) /
[Fn1] button (→60)
28
[ ] (Delete) button (→187) /
[Q.MENU/
] (Cancel) button (→58) /
[Fn2] button (→60)
29
[ ] (Playback) button (→180)
30
Cursor button (→50)
[
] (ISO sensitivity) ( ) (→114)
[
] (White balance) ( ) (→116)
[
] (Drive Mode) ( ) (→137)
[
] (AF Mode) ( ) (→97)
31
[MENU/SET] button (→50, 56)
32
[DISP.] button (→50)
33
Rear dial (→47)
34
Speaker (→42, 225)
35
Socket cover (→24)
36
[HDMI] socket (→300)
37
[USB/CHARGE] socket (→24, 307, 310)
38
Card/Battery door (→23, 32)
39
Release lever (→23, 32)
40
DC coupler cover (→314)
When using an AC adaptor, ensure that
the Panasonic DC coupler (optional) and
AC adaptor (optional) are used.
41
Tripod mount (→338)
Do not attach this unit to tripods that
have screws with a length of 5.5 mm
(0.22 inch) or more. Doing so may
damage this unit or the unit may not be
secured properly on the tripod.
42
Touch screen (→53) / monitor (→315)
Function buttons [Fn4] to [Fn8] are
touch icons.
They can be displayed by touching the
[ ] tab on the recording screen.
