Connecting to other equipment
[PLAYBACK] mode: ¸
Playing Back Pictures on a TV Screen
Please use the supplied AV cable. (DMC-FS7/DMC-FS6)
Please use the optional AV cable (DMW-AVC1). (DMC-FS8)
Preparations:
Set the [TV ASPECT]. (P28)
Turn this unit and the TV off.

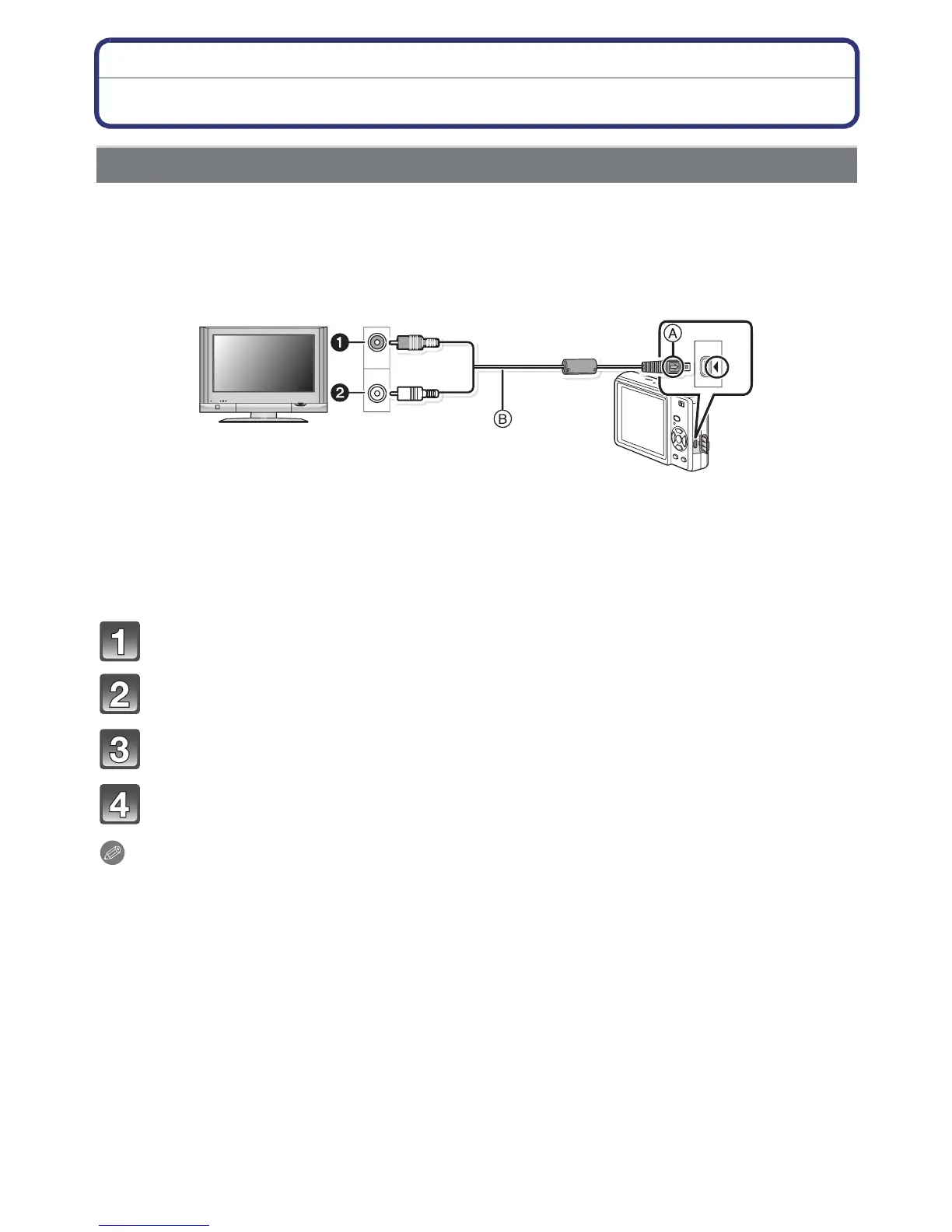

1 Yellow: to the video input socket
2 White: to the audio input socket
A Align the marks, and insert.
B AV cable
• Check the directions of the connectors, and plug them straight in or unplug them straight out.
(Otherwise the connectors may be bent out of shape which will cause trouble.)
Connect the AV cable to the video input and the audio input sockets on the TV.
Connect the AV cable to the [AV OUT] socket on the camera.
Turn the TV on and select external input.
Turn the camera on.
Note
• Depending on the [ASPECT RATIO], black bands may be displayed on the top and bottom or
the left and right of the pictures.
• Do not use any other AV cables except the supplied one. (DMC-FS7/DMC-FS6)
•
Do not use any other cables except a genuine Panasonic AV cable (DMW-AVC1; optional). (DMC-FS8)
• Read the operating instructions for the TV.
• When you play back a picture vertically, it may be blurry.
• You can view pictures on TVs in other countries (regions) which use the NTSC or PAL system
when you set [VIDEO OUT] in the [SETUP] menu.
Playing back pictures using the AV cable
