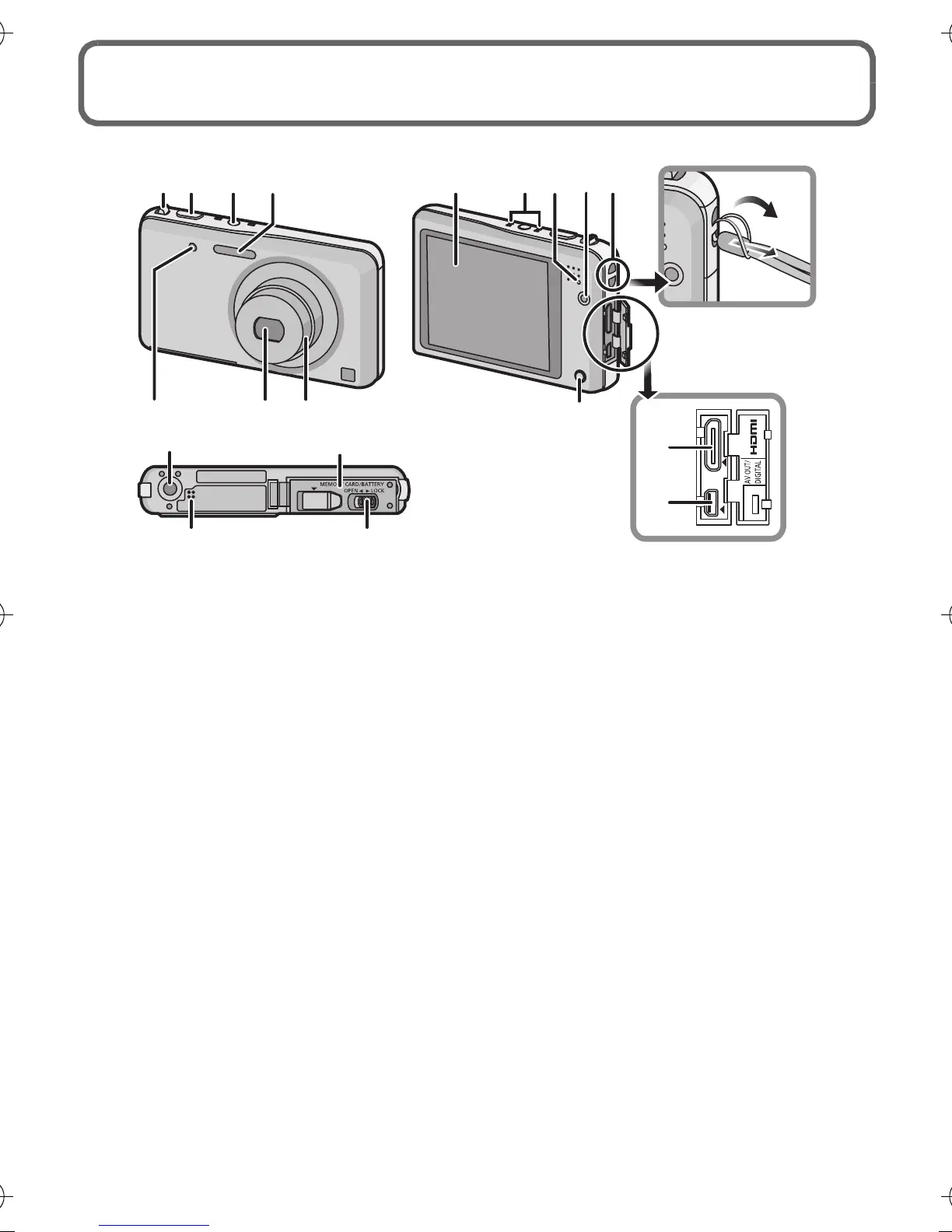

Names and Functions of Main Parts
1 Zoom lever
2 Shutter button
3 Power button
4Flash
5 Self-timer indicator
AF Assist Lamp
6Lens
7 Lens barrel
8 Touch screen/LCD monitor
9 Microphone
10 Charging lamp
11 Motion picture button
12 Strap eyelet
• Be sure to attach the strap when
using the camera to ensure that you
will not drop it.
13 Playback button
14 [HDMI] socket
15 [AV OUT/DIGITAL] socket
16 Tripod receptacle
17 Speaker
• Be careful not to cover the speaker
with your finger. Doing so may make
sound difficult to hear.
18 Card/Battery door
19 Release lever
14
15
17 19
16 18
1
567
23
94
11
128 10
13
