Names and Functions of Components

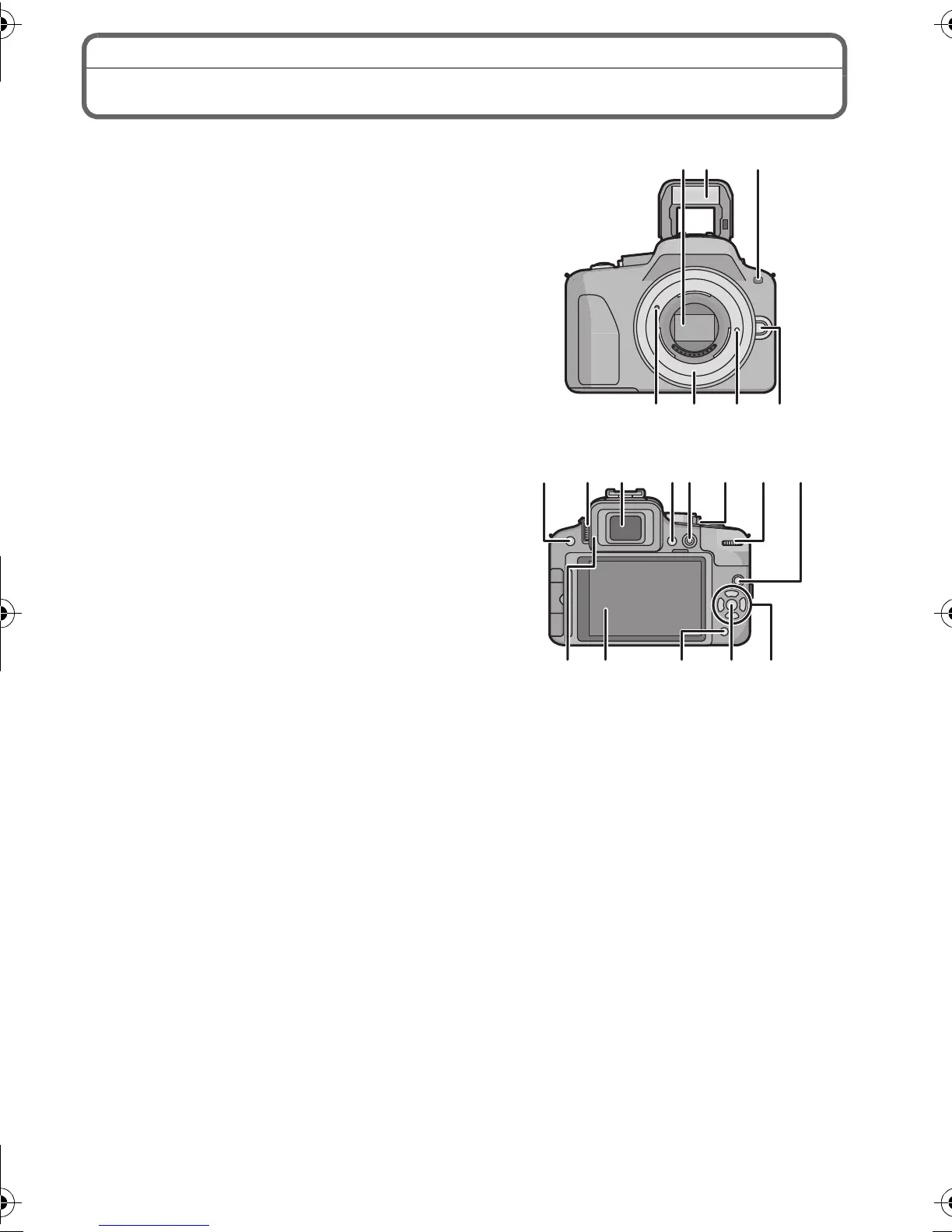

∫ Camera body
1 Sensor
2Flash
3 Self-timer indicator/
AF Assist Lamp
4 Lens fitting mark
5 Mount
6 Lens lock pin
7 Lens release button
8 [LVF/LCD] button
9 Diopter adjustment dial
10 Viewfinder
11 Playback button
12 Motion picture button
13 Camera ON/OFF switch
14 Rear dial
15 [DISP./Fn1] button
16 Eye Cup
17 Touch panel/LCD monitor
18 [Q.MENU/Fn2] button/
Delete/Return button
19 [MENU/SET] button
20 Cursor buttons
3/ISO
1/WB (White Balance)
2/AF Mode button
4/[DRIVE MODE] button
This button in picture record mode will allow the user to select between the following
options.
Single/Burst/Auto bracket/Self-timer
