Connecting to other equipment
- 182 -
Playing Back Pictures on a TV Screen
Pictures recorded with this unit can be played back on a TV screen.
Confirm the terminals on your TV and use a cable compatible with the terminals.
Image quality may vary with the connected terminals.
1 High quality
2 HDMI
socket
3 Video socket

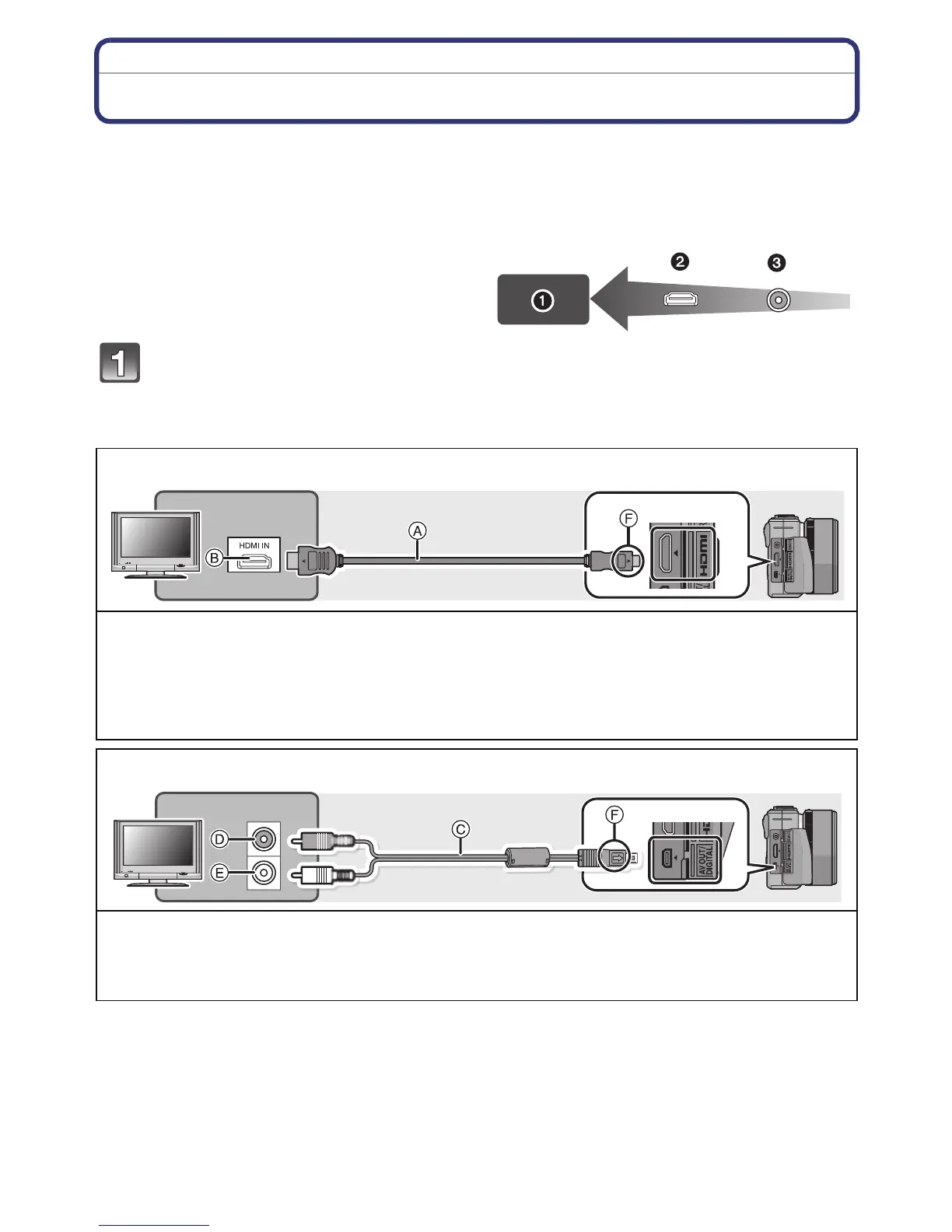

Connect the camera and a TV.
• Check the direction of the terminals and plug in/out straight holding onto the plug. (It
may result in malfunction by the deforming of the terminal if it is plugged in obliquely or
in wrong direction.)
A HDMI mini cable (optional)
B HDMI socket
C AV cable (optional)
D Yellow: to the video input socket
E White: to the audio input socket
F Align the marks, and insert.
Preparations: Turn this unit and the TV off.
To connect with an HDMI mini cable (optional)
•
Always use a genuine Panasonic HDMI mini cable (RP-CDHM15, RP-CDHM30; optional).
Part numbers: RP-CDHM15 (1.5 m) (5 feet), RP-CDHM30 (3.0 m) (10 feet)
• Check the [HDMI MODE]. (P71)
• Audio will be played back as stereo (2ch).
• No picture is displayed on the LCD monitor/Optional Live Viewfinder.
• For more details about VIERA Link (HDMI) playback, refer to P184.
To connect with an AV cable (optional)
•
Always use a genuine Panasonic AV cable (DMW-AVC1; optional).
• Check the [TV ASPECT]. (P71)
• Audio will be played back in monaural.
• The Optional Live Viewfinder cannot be displayed.
