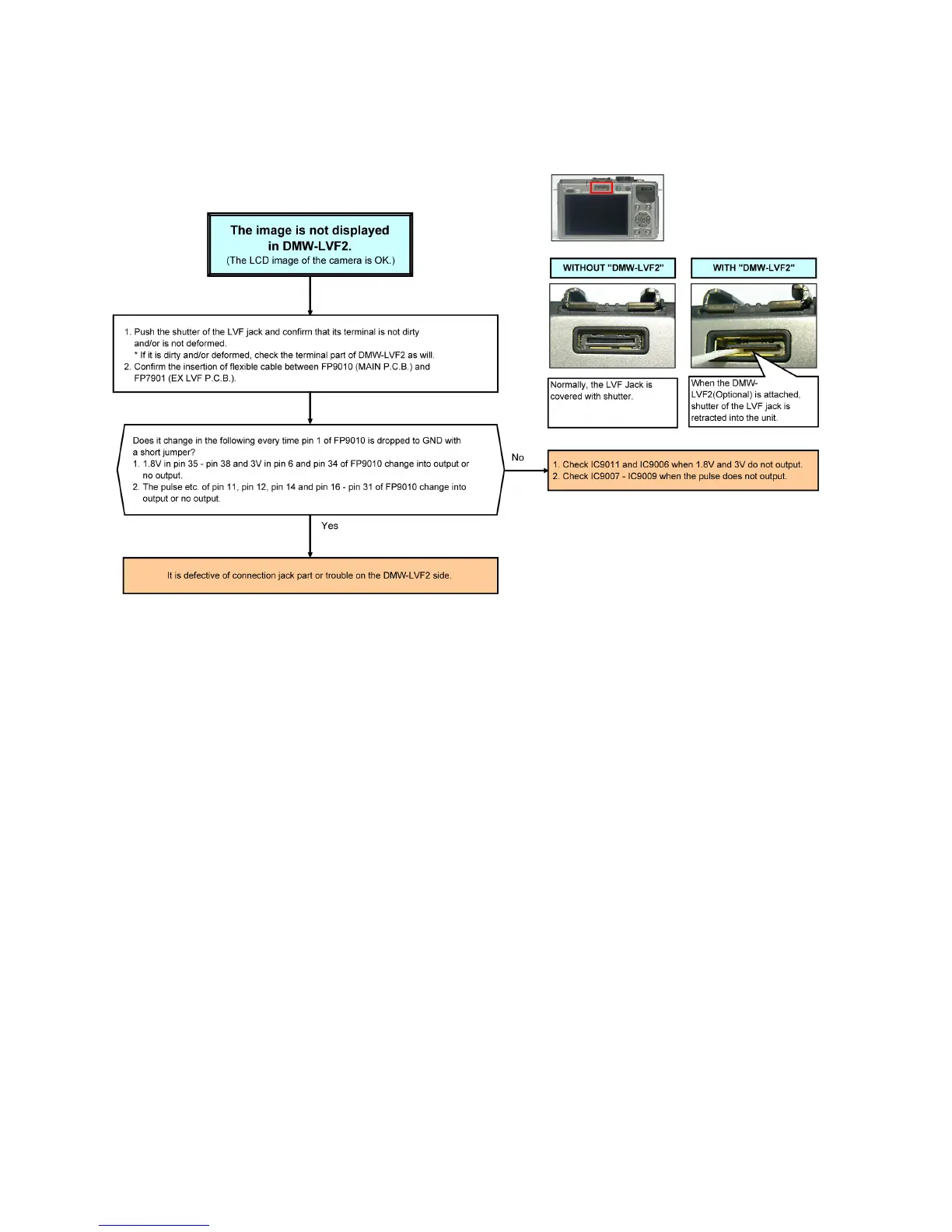

[Check Flow]
• Preparation:
When there is no DMW-LVF2, connect pin 2 of FP9010 to GND with a short jumper, and make the circuit operation simulate
when DMW-LVF2 was attached.
When there is DMW-LVF2, attach the DMW-LVF2 to DMC-GX1 and check the circuit.
