58
11 Maintenance
11.1. Notice in external cleaning
11.1.1. ABOUT THE BODY
NOTE:
Before cleaning the camera, remove the battery and/or disconnect power plug from the outlet.
Also, remove the SD Memory card and lens unit.
11.1.1.1. DUST/DIRT ON THE OUTER CASING PART (S)
1. Blow off the dust first, then sweep out the dust from narrower spaces with soft cleaning brush.
2. Wipe up fingerprint and/or dirt on the Outer casing part with the dry fuzz-free cloth.
11.1.1.2. DUST/DIRT ON THE IMAGE SENSOR

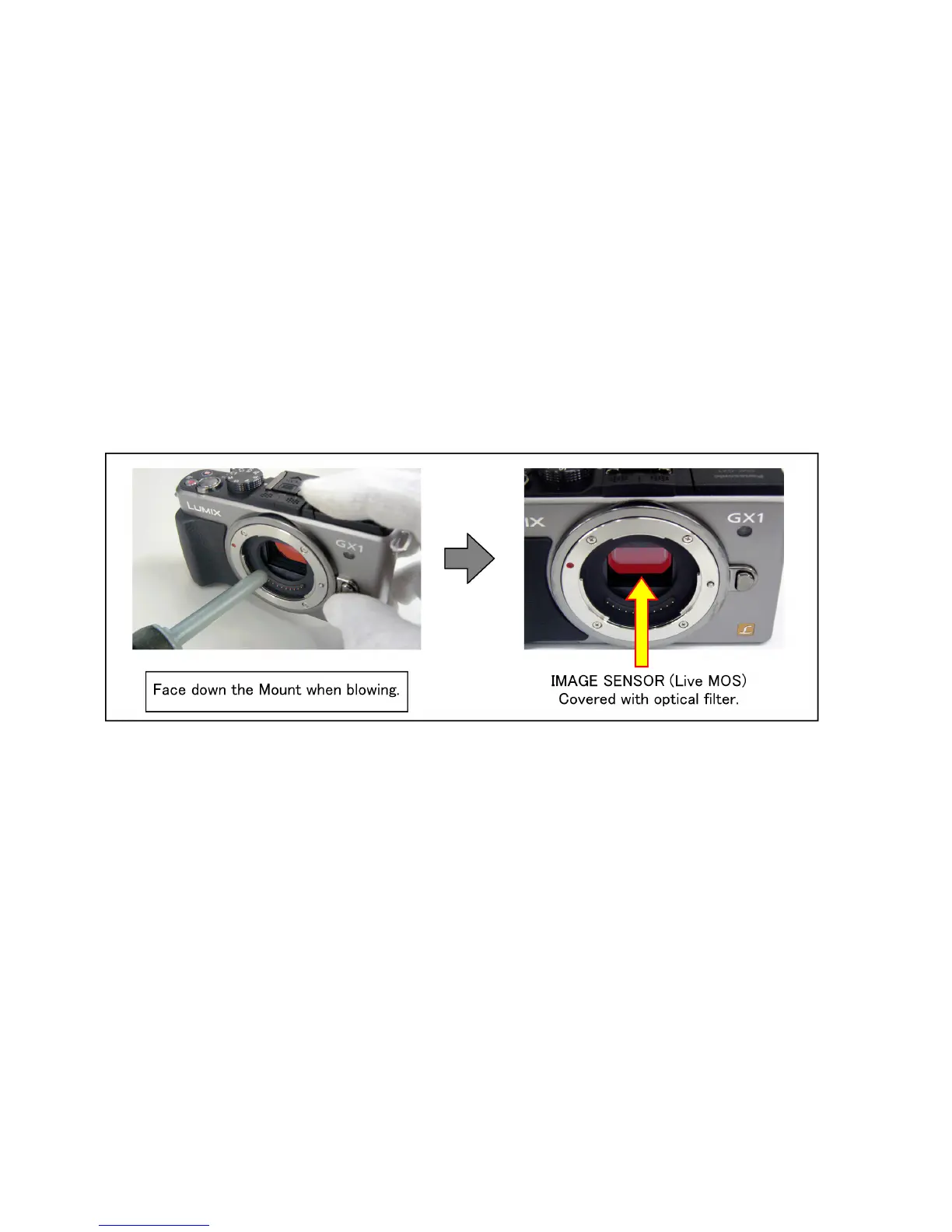

1. Blow off the dust on the surface of the Image sensor with the Blower. (Refer to the following Figure.)
• Keep the Mount Facing down condition towards to floor when cleaning.
• Do not put the Blower further inside than the lens mount.
• Be careful not to blow too strongly.
2. Wipe off the dirt on the image sensor surface with Lens cleaning KIT(BK)(VFK1900BK).
To Next Page
