9.2. Disassembly and Assemble Procedure for the Lens (H-PS14042)

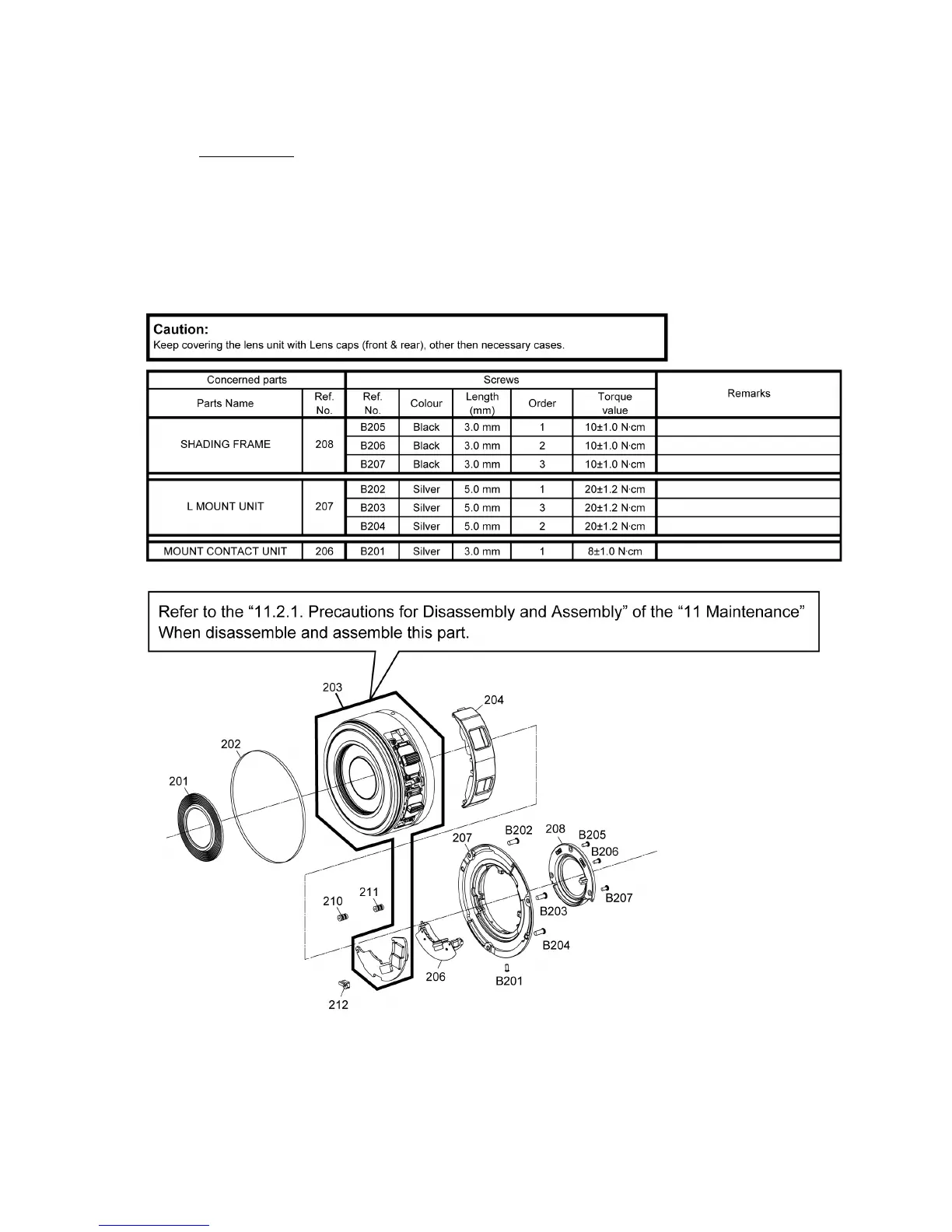

Proceed disassemble and assemble, by referring the following table Fig. W1.
Important:
1. It is recommended dealing with Clean box, to keep maintaining the dustproof environment.
(Refer to “8.2. Clean Box”
section of this service manual for detailes.)
2. To minimize the possibilities/risk of getting the dust/dirt on the lens surface, keep covering the lens unit with lens caps (front &
rear), other than necessary cases.
3. Do not touch the surface of the lens glasses with your fingers.
4. Blow off the dust on the surface of the lens with a blower brush.
5. Use lens cleaning KIT (BK)(VFK1900BK).
NOTE:
1. When tightening screws, use a torque driver (RFKZ0456) with specified torque mentioned in each step.
