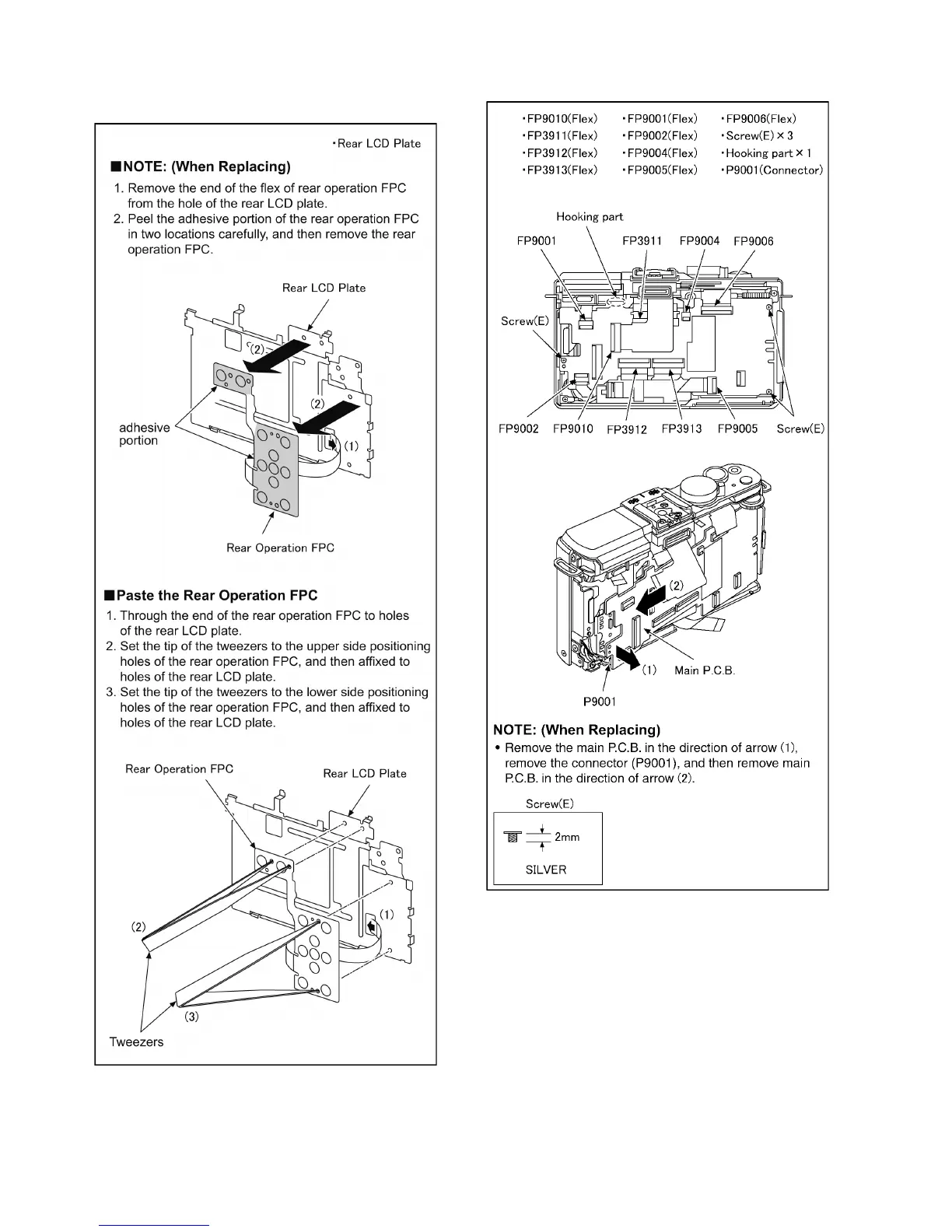

44
9.1.3.3.
Removal of
the Rear Operation
FPC
(Fig. D6)
9.1.3.4.
Removal of the Main P
.C.B.
(Fig. D7)
43
45
Table of Contents
Table of Contents
3
1 Safety Precautions
4
General Guidelines
4
Leakage Current Cold Check
4
Leakage Current Hot Check (See Figure 1.)
4
How to Discharge the E. Capacitor on Capacitor P.C.B. Unit
5
2 Warning
6
Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices
6
How to Recycle the Lithium Ion Battery (U.S. Only)
6
Caution for AC Cord (for EB/GC/GH)
7
Information for Your Safety
7
Before Use
7
How to Replace the Lithium Battery
8
3 Service Navigation
9
Introduction
9
Important Notice
9
General Description about Lead Free Solder (Pbf)
14
How to Define the Model Suffix (NTSC or PAL Model)
15
Initial Settings
16
4 Specifications
19
5 Location of Controls and Components
21
Selecting the Recording Mode
23
Recording Motion Pictures
25
6 Service Mode
26
Error Code Memory Function
26
7 Troubleshooting Guide
28
Checking Method of Body and Interchangeable Lens
28
Checking Method of Drive Circuit
33
About Electronic Level
35
8 Service Fixture & Tools
37
Service Fixture and Tools
37
Clean Box
38
Service Position
39
9 Disassembly and Assembly Instructions
40
Camera Body Part
40
Disassembly Procedure
41
Disassembly and Assemble Procedure for the Lens (H-PS14042)
51
Disassembly and Assemble Procedure for the Lens (H-FS014042)
52
Disassembly and Assemble Procedure for the Lens (H-H014)
54
10 Measurements and Adjustments
56
Matrix Chart for Replaced Part and Necessary Adjustment
56
11 Maintenance
58
Notice in External Cleaning
58
General Description (Interchangeable Lens/H-PS14042)
59
About the Lens
59
General Description (Lens Cleaning: Interchangeable Lens/H-FS014042)
60
Assembly Procedure
62
General Description (Lens Cleaning: Interchangeable Lens/H-H014)
63
Parts List
65
S2. Block Diagram
66
S2.1. Overall Block Diagram
66
S3. Schematic Diagram
67
S3.1. Interconnection Diagram
67
S3.2. Top Operation Schematic Diagram
68
S3.3. Flash Schematic Diagram
69
S3.4. EX LVF Schematic Diagram
70
S4. Print Circuit Board
71
S4.1. Top P.C.B
71
S4.3. Ex Lvf P.C.b
72
S5. Replacement Parts List
73
S6. Exploded View
83
S6.1. Frame and Casing Section
83
S6.2. Camera Lens Section (1
84
S6.3. Camera Lens Section (2
85
S6.4. Camera Lens Section (3
86
S6.5. Packing Parts and Accessories Section (1
87
S6.6. Packing Parts and Accessories Section (2
88
S6.7. Packing Parts and Accessories Section (3
89
S6.8. Packing Parts and Accessories Section (4
90
