11.3.1. Disassembly procedure
Important:
It must be performed inside of satisfied clean level.
(Satisfied clean level: Less than class 10,000 (Federal
Standard 209D))

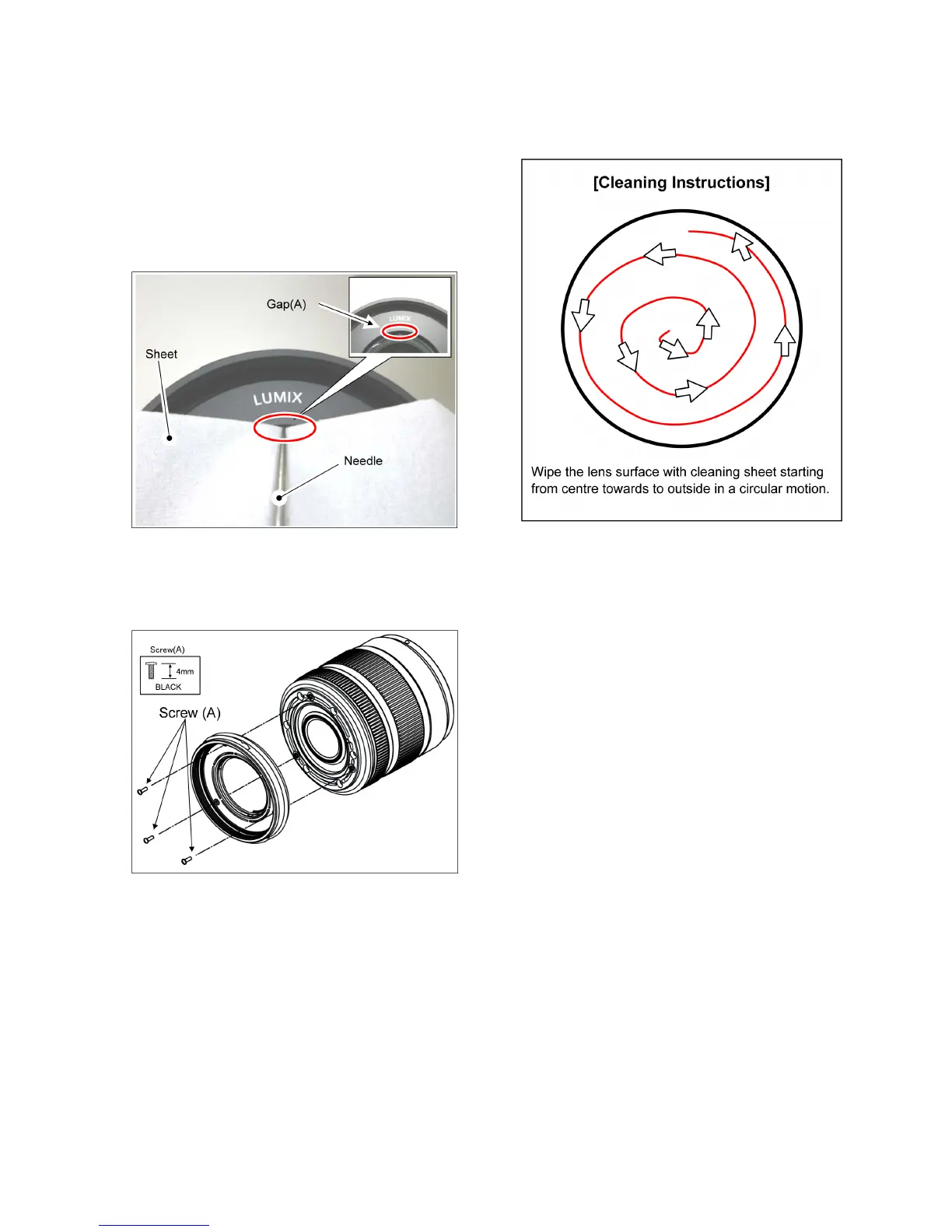

11.3.1.1. Removal of the Decoration Ring
1. Decoration ring is sticked on the 1st lens frame unit.
2. Put the sheet so that the lens glass is fully covered.
3. Insert the needle to Gap (A) (between the decoration ring
and lens glass), and peel off the decoration ring gently.
11.3.1.2. Removal of the 1st Lens Frame
Unit
1. Remove the 3 screws (A).
11.3.1.3. Removal of a dust /dirt
1. Blow off the dust on the surface of the lens with a blower
brush.
2. Use lens cleaning KIT(BK) (VFK1900BK), if necessary.
