DVQX1208 (SPA)
28

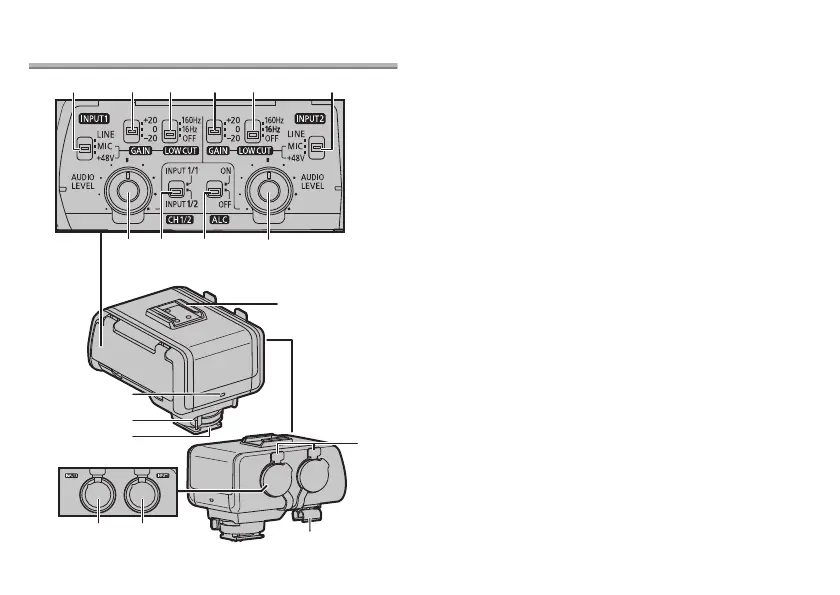

Nombres de las piezas
1 Interruptor LINE/MIC/i48V (INPUT1)
2 Interruptor GAIN (INPUT1)
3 Interruptor LOW CUT (INPUT1)
4 Interruptor GAIN (INPUT2)
5 Interruptor LOW CUT (INPUT2)
6 Interruptor LINE/MIC/i48V (INPUT2)
7 Dispositivo AUDIO LEVEL (INPUT2)
8 Interruptor ALC
9 Interruptor CH1/2
: Dispositivo AUDIO LEVEL (INPUT1)
; Zapata
< Lámpara de POWER
= Palanca de bloqueo
> Montaje de la zapata caliente
? Palanca del disparador
@ Soporte del cable
A Terminal XLR (INPUT1)
B Terminal XLR (INPUT2)
