DVQX1208 (ENG)
8

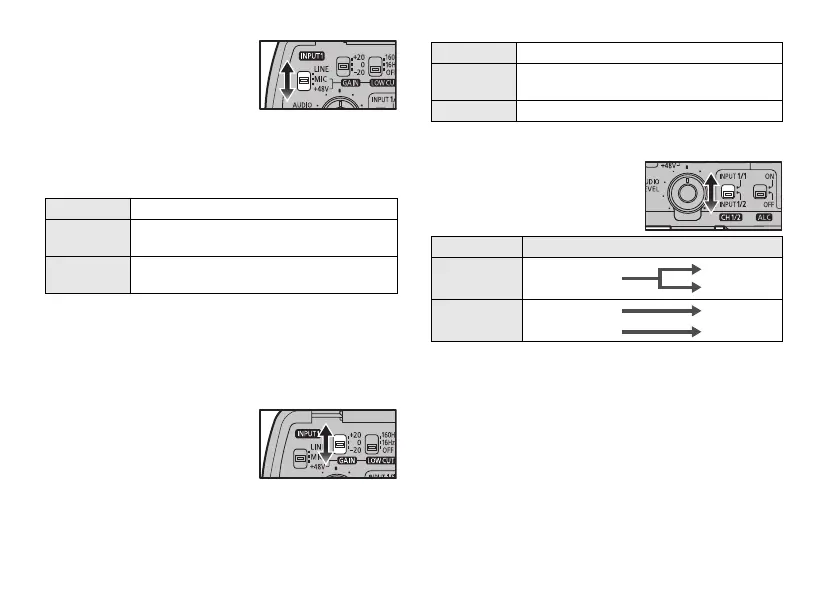

∫ Using external audio
devices
1 Set the LINE/MIC/i48V
switch (INPUT1, INPUT2)
to match the connected
device.
Set the switch to the match the device connected to the
XLR terminals (INPUT1, INPUT2).
• When set to [i48V], connecting a device that does not
support i48V power supply may cause damage to the
connected device. Check the device before
connecting.
• If noise from the unconnected terminal is bothering, set
the LINE/MIC/i48V switch to [LINE].
2 (When [MIC], [i48V] is
set) Set the input level
with the GAIN switch
(INPUT1, INPUT2).
When the LINE/MIC/i48V switch is set to [MIC] or
[i48V], the input gain can be changed with the GAIN
switch.
• If the LINE/MIC/i48V switch is set to [LINE], the input
gain cannot be changed.
3 Set the recording
channel with the CH1/2
switch.
• If using a stereo microphone with two XLR (3 pin)
plugs, connect the Lch to XLR terminal (INPUT1), and
the Rch to XLR terminal (INPUT2), and set the CH1/2
switch to [INPUT 1/2].
[LINE] External audio devices (such as mixers).
[MIC]
Dynamic microphone or microphone with
built-in battery.
[i48V]
Microphone that supports i48V power
supply (phantom power supply).
[i20] i20 dB
[0]
0dB
(Default setting, standard level: j40 dBu)
[j20] j20 dB
Settings Audio recorded with CH1/CH2
[INPUT 1/1] INPUT1
CH1
CH2
[INPUT 1/2]
INPUT1 CH1
INPUT2 CH2
DMW-XLR1PP&E&GK-DVQX1208ZA.book 8 ページ ２０１７年２月６日 月曜日 午後５時１１分
