11

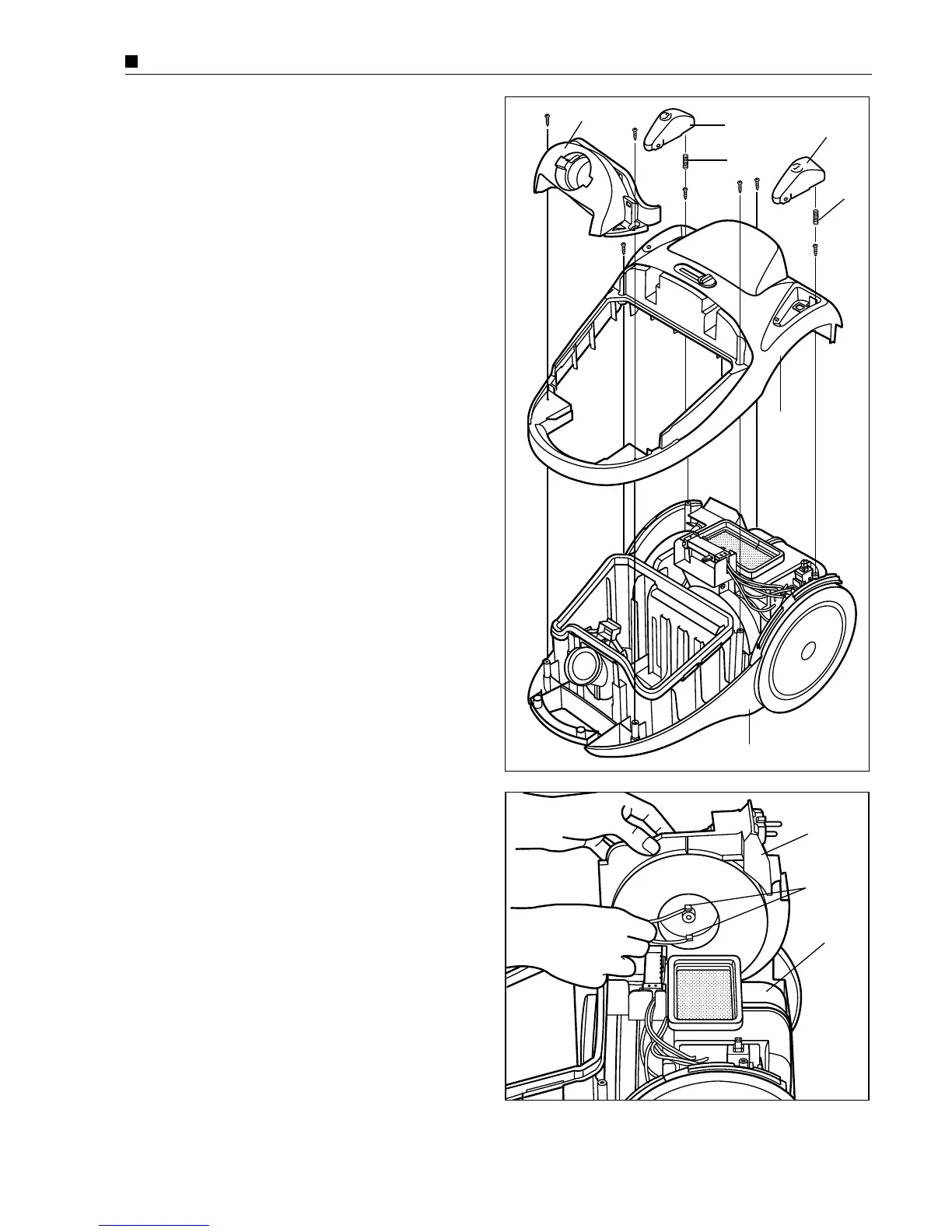

REPLACEMENT OF MAIN PARTS
3. Remove 7 screws from upper body and take out front cover
and upper body. (Fig. 3)
4. Take out cord reel ass’y and remove black and white lead
wires (provided with quick-connect terminal) from the
contact spring tabs. (Fig. 4)
Fig. 4
Motor unit
Fig. 3
Front cover
Cord reel
Pedal
Switch
Pedal
Upper
body
Lower body
Spring
Spring
Contact
spring
tabs
Cord reel
ass’y
