10

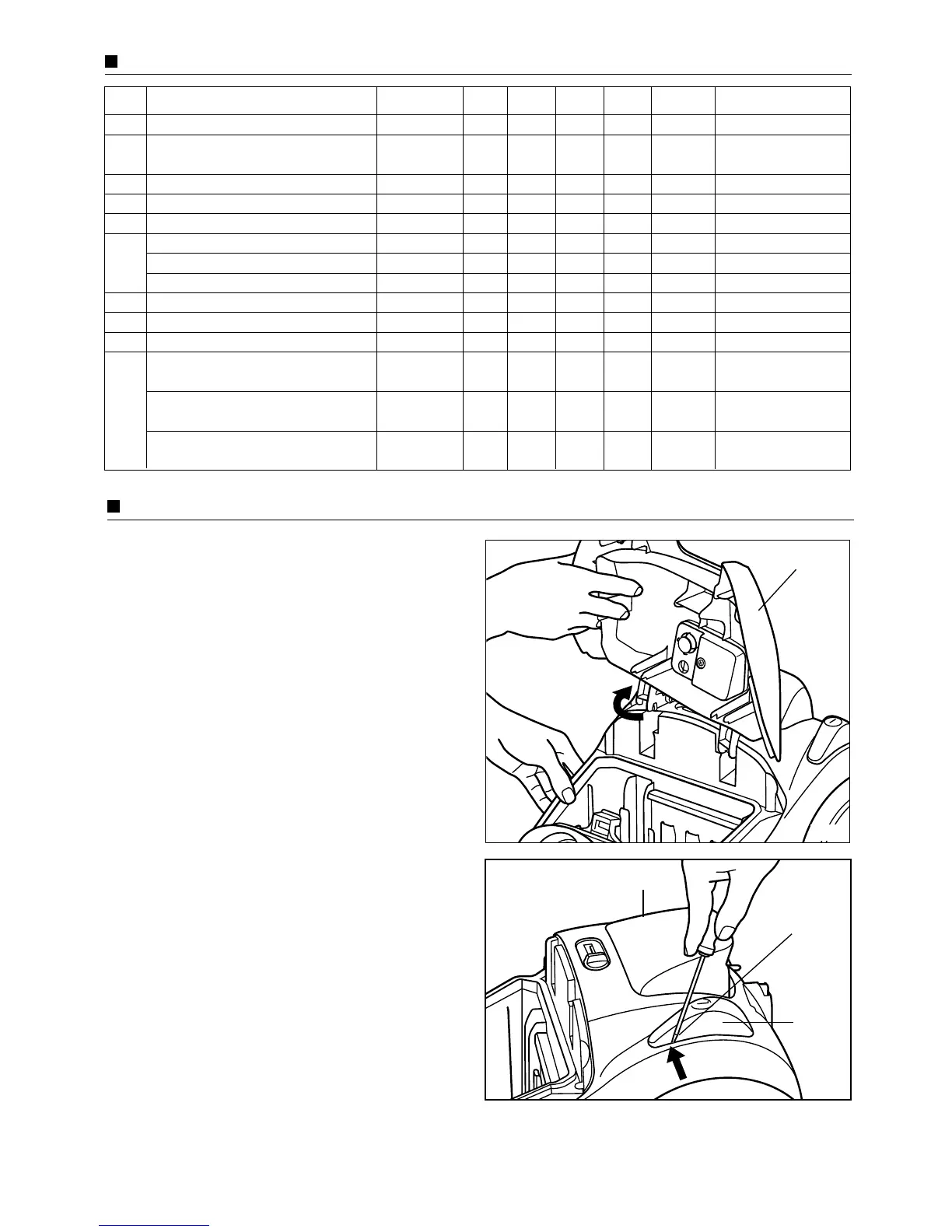

SPARE PARTS LIST
REF. No. DESCRIPTION PART No. Pcs/Set REMARKS
71 CORD REEL SUPPORT UNIT AMC8P91T1000 1 ••• ✓
72 TAPPING SCREW (CORD REEL) XTT4*16C 1 ••• ✓
73 DUST PAPER BAG (PACK OF 5/PC.) AMC8F96T1000 1 ••• ✓
Detachable type C-20E
74 CLOTH DUST BAG (RE-USABLE) AMC8F99T1000 - ••• ✓
Optional
75 SET COVER AMC8Z05P1000 1 ••• ✓
76 CARTON BOX AMC8Z01T0000 1 • ✓
CARTON BOX AMC8Z01T1000 1 • ✓
CARTON BOX AMC8Z01T3000 1 • ✓
77 CUSHION A AMC8Z02T1000 1 ••• ✓
78 CUSHION B AMC8Z03T1000 1 ••• ✓
79 CUSHION SUPPLEMENT AMC8Z09J2000 1 ••• ✓
80 OPERATING INSTRUCTIONS AMC8Z07T1010 1 •••
OPERATING INSTRUCTIONS AMC8Z07T1070 1 •••
OPERATING INSTRUCTIONS AMC8Z07T1020 1 •••
MC-E780
Applied for
all countries (✓)
MC-E781
MC-E783
Needed a screwdriver type
TORK T20 H
Depend on
language
Spanish, English, Portuguese,
Italian, Finish and Greek
Depend on
language
German, Dutch, French,
Swedish, Norwegian and
Danish.
Depend on
language
Russian
REPLACEMENT OF MAIN PARTS
IMPORTANT: Before replacing any part always
DISCONNECT THE CLEANER FROM THE
ELECTRICITY SUPPLY.
• MOTOR / CARBON BRUSHES
(1) Motor
1. To remove the dust cover first pull it out from one side and
then rotate it up wards to take it out. (Fig.1)
2. Remove cord reel and switch pedal prying out as indicated
with a flat-head screwdriver. (Fig. 2)
NOTE: When prying out take care not to damage the body.
Fig. 2
Fig. 1
Dust cover
Cord reel Pedal
Switch
Pedal
Flat-head
screwdriver
To Next Page
