16
REPLACEMENT OF MAIN PARTS
• BRAKE LEVER UNIT
1. Remove upper body as explained in paragraph (1) Motor,
points 1-3.
2. Take out cord reel pedal prising on its shaft with a flat-head
screwdriver. (Fig. 18)

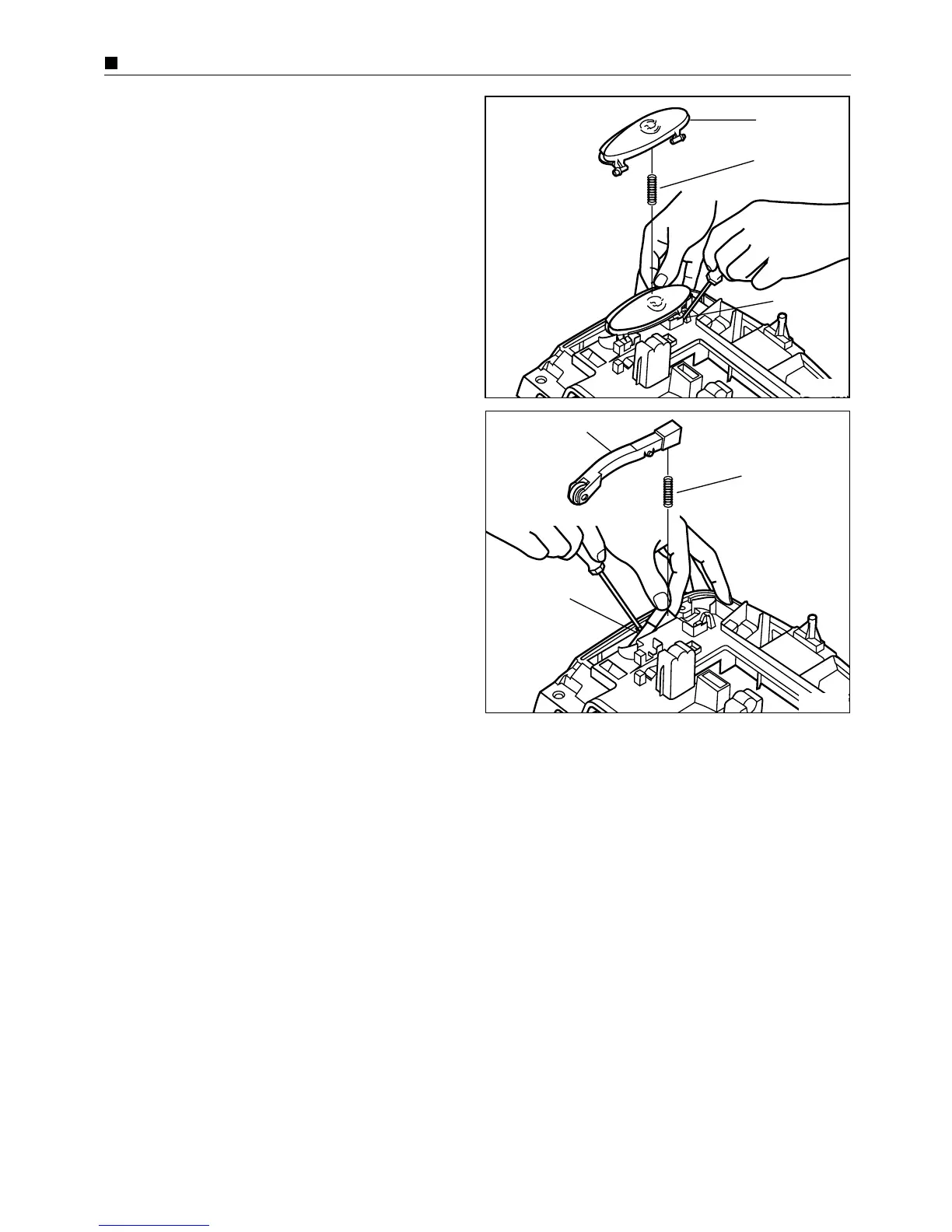

Fig. 18
Fig. 19
3. Release brake lever unit prising on its shaft with a flat-head
screwdriver and pushing it up underneath. (Fig. 19)
4. Replace the brake lever unit with a new one and reinstall.
Then reassemble the remaining parts in the reverse order.
Cord reel
pedal
Spring
Pedal shaft
Spring
Brake lever unit
Brake lever
shaft
