REPLACEMENT OF MAIN PARTS
IMPORTANT: Before replacing any part always
DISCONNECT THE CLEANER FROM THE
ELECTRICITY SUPPLY.
• MOTOR / CARBON BRUSHES
(1) Motor

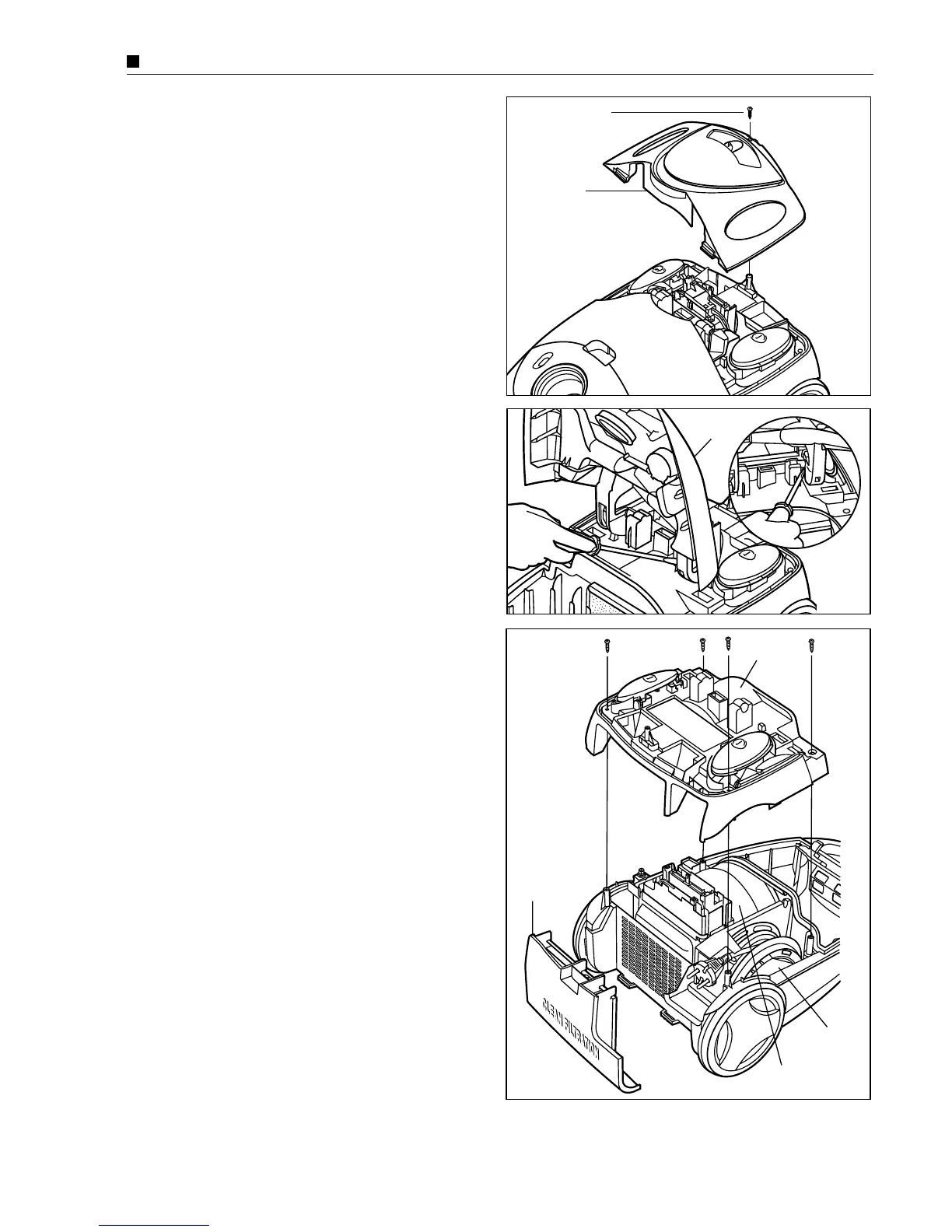

1. Remove 1 screw from the pedal cover and take it out.
(Fig. 1)
2. Remove dust cover ass’y prising on its support with a
flat-head screwdriver. (Fig. 1-a)
Fig. 2
Fig. 1-a
Dust cover
assembly
Upper body
Exhaust
cover
Motor
assembly
Cord reel
assembly
Fig. 1
Screw
3. Take out exhaust cover. Then remove 4 screws from the
upper body and take it out. (Fig. 2)
Pedal
cover
To Next Page
