- 46 -

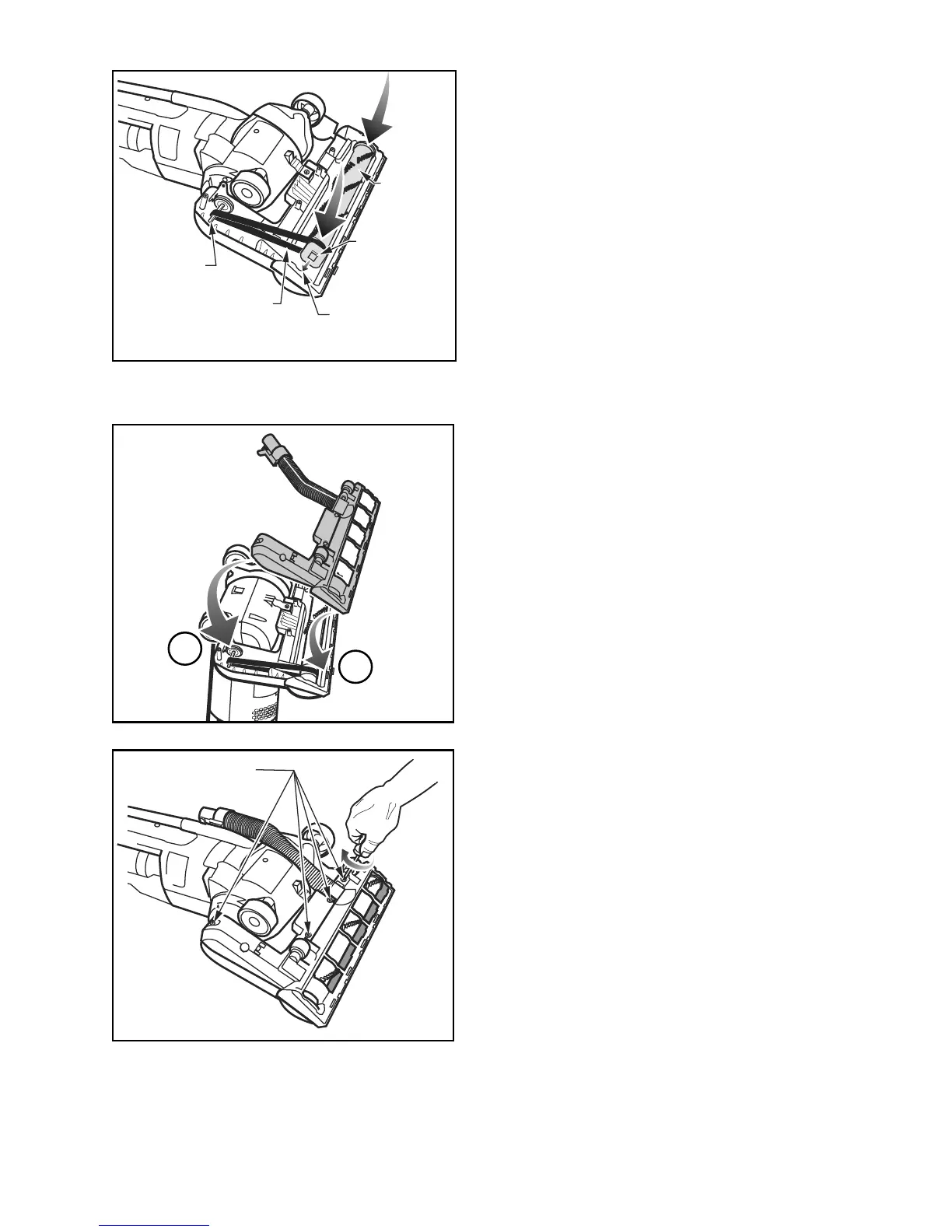

➢ Loop new belt (part number
MC-V390B, Type UB12) around
motor shaft and agitator belt
groove. Make sure belt is routed in
the belt guide as shown. See
illustration for correct belt routing.
➢ Reinstall agitator back into nozzle
by placing end caps into grooves.
➢ After reinstalling the agitator, turn it
by hand to make sure that belt is
not twisted or pinched and that all
rotating parts turn freely.
Belt
Correa
Courroie
Motor Shaft
Arbre d’entrainement
du moteur
Eje del motor
End Cap
Tapa del
extremo
Bouchon
Agitator
Agitateur
Agitador
Groove
Rainure
Ranura
2
1
➢ Place the vacuum in the upright
position standing on the handle.
This will minimize wheel
interference when installing nozzle
bottom plate.
➢ Reinstall nozzle cover by (1)
aligning front edge of the cover with
the nozzle and (2) rotating to
installed position.
Four Screws
Quatre vis
Cuatro Tornillos
➢ Lay unit on floor bottom up with
nozzle flat.
➢ Install the four screws to the nozzle
cover.
➢ Route nozzle hose to hose holder.
Align nozzle hose bracket with
retaining bracket on body and slide
down unit it clicks into place.
➢ Return the vacuum cleaner to the
upright position before plugging
into an electrical outlet.
