TEMPERATURE RECORDER (OPTION)
Setting of MTR-G85A or MTR-G85C
If the warning is required for the internal temperature record or the interior temperature deviates from the
target temperature, an optional temperature recorder is available. Install the recorder properly as
described below.

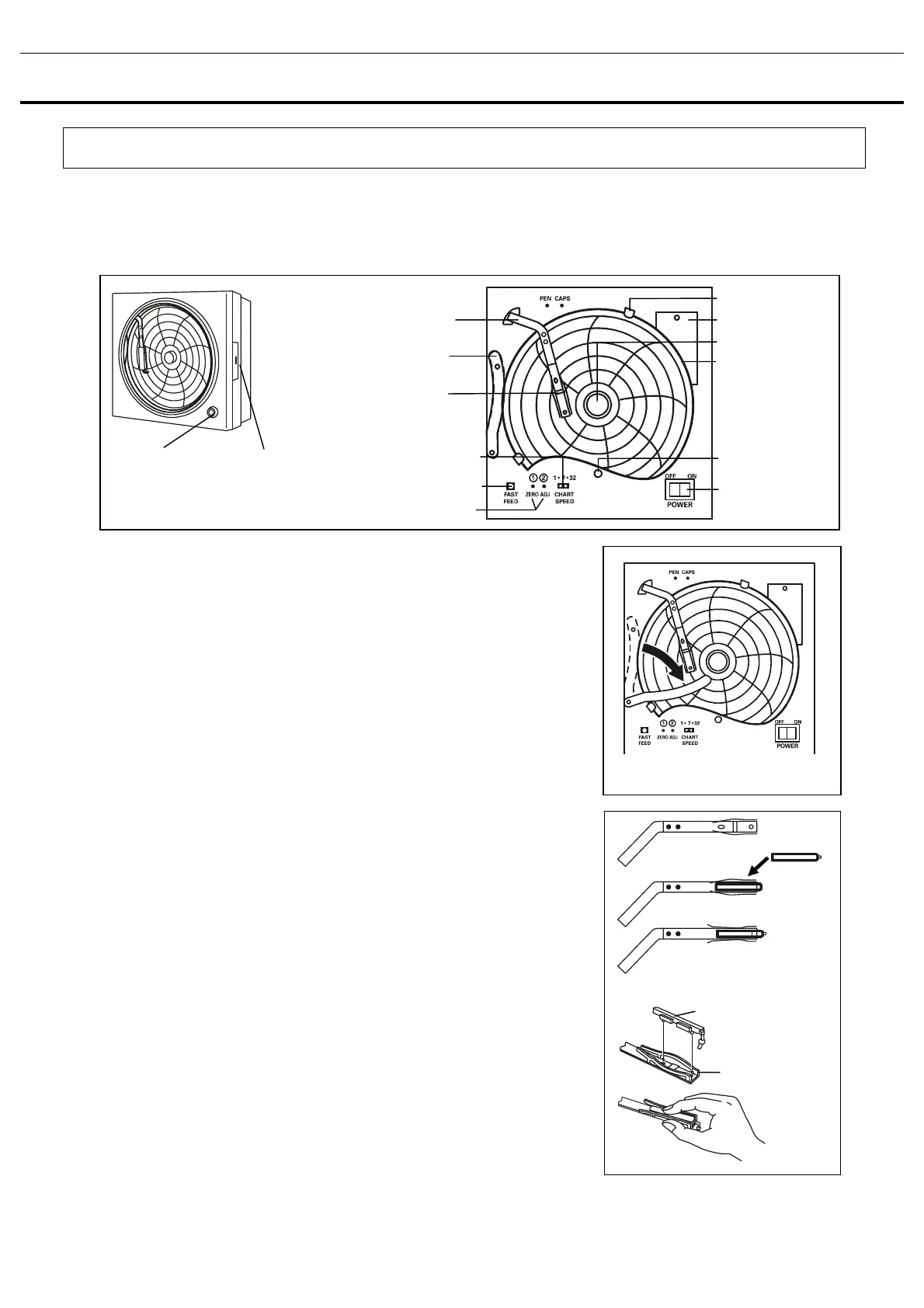

Loading the pen cartridge:
1.
Slightly raise the end of the pen lifter and remove from the lifter
stopper. Then rotate clockwise as shown in Fig. 1.
2.
Remove the ink pen from the bag and remove its cap. The cap
can be conveniently kept on the cap holder located at the upper left
corner.
NOTE:
Loading a ink pen, turn the power OFF and then ON again to
return to the normal mode. (Refer to Fig. 2 when loading a ink pen.
3.
Press both sides of the ink pen arm as indicated by the arrows to
open the head clamp at A and B. (See to Fig. 2 illustration 1)
4.
Position the ink pen so that the guide pins fit into the guide holes on
the ink pen arm. (See to Fig. 2 illustration 2)
5.
Press the two sides of the head clamp as indicated by the arrows to
secure the ink pen. (See to Fig. 2 illustration 3) From the side view,
the ink pen should fit perfectly on the arm. Confirm that the ink pen
arm is attached to both sides of the ink pen.
6.
After loading the ink pen, return the ink pen lifter to the original
position. Confirm that the ink pen lifter has securely entered the ink
pen lifter stopper.
Fig. 1
Open cover latch
Key lock
Ink pen arm
Ink pen lifter
Ink pen
Chart guides
Back-up battery
Power switch
Chart hub cover
Recording paper
Pilot lamp
Zero adjustment screw
Fast feed button
Chart speed selector
Fig. 2
Ink pen
Ink pen
Pen arm
1
2
3
