DISPOSAL OF BATTERY
Location of a nickel-metal-hydride battery
This unit is provided a nickel-metal-hydride battery for the power failure warning device. The battery is

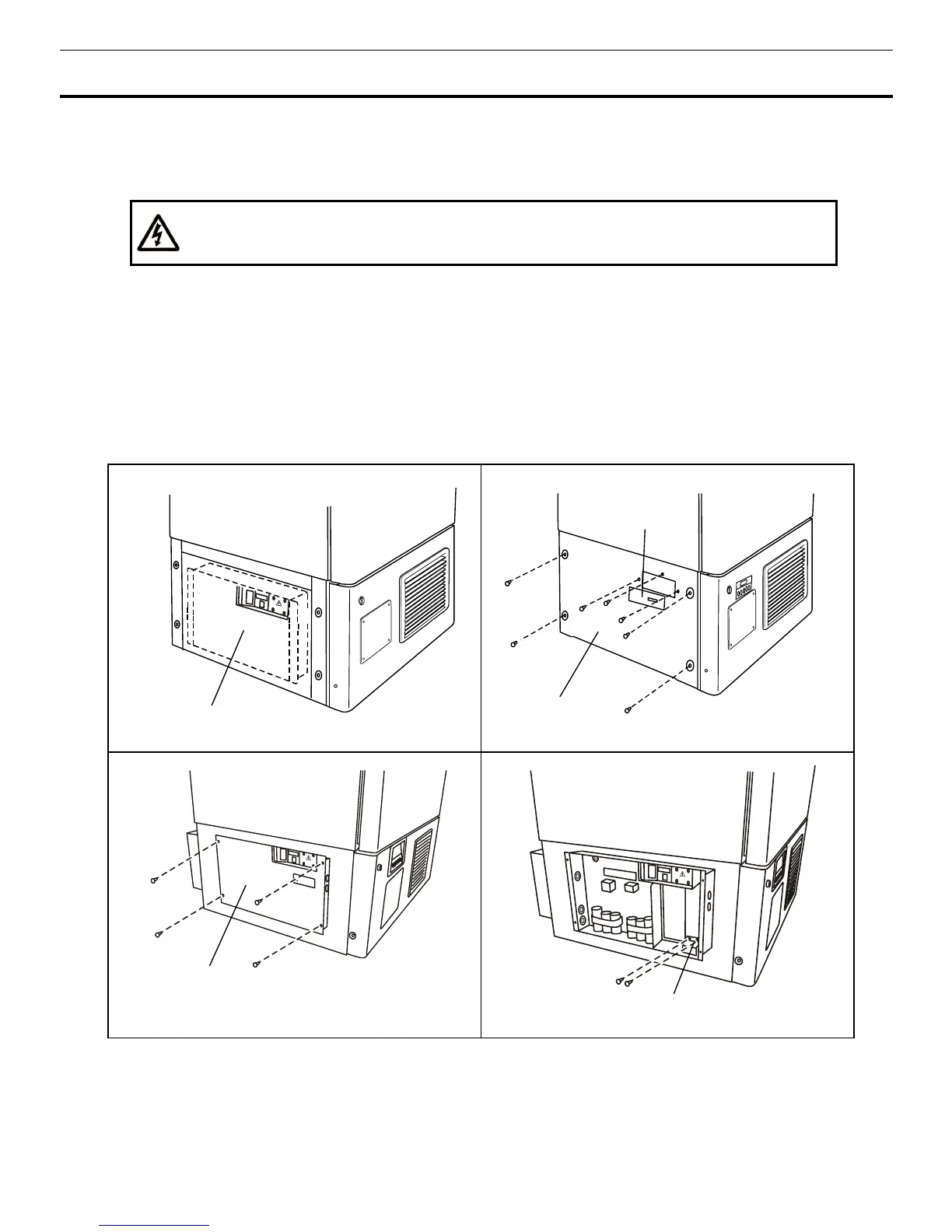

located in the electrical box inside the cover on the lower left side. (Fig. 1)
The high voltage components are enclosed in the electrical box. The cover should be removed
by a qualified engineer or a service personnel only to prevent the electric shock.
Removal of nickel-metal-hydride battery
1.
Turn off the power switch and disconnect the power supply plug.
2.
As shown in the Fig. 2, remove 7 screws fixing with a screw driver and remove the side cover and
switch cover.
3.
Remove 4 screws fixing the electrical box cover with a screw driver. (Fig. 3)
4.
Disconnect the battery connector and remove 2 screws fixing the battery mounting plate. (Fig. 4)
5.
Take out the battery.
6.
Follow the procedure for recycle.
