Panasonic MINAS-BL GV Series - Installation

－
E9
－－
E8
－
English

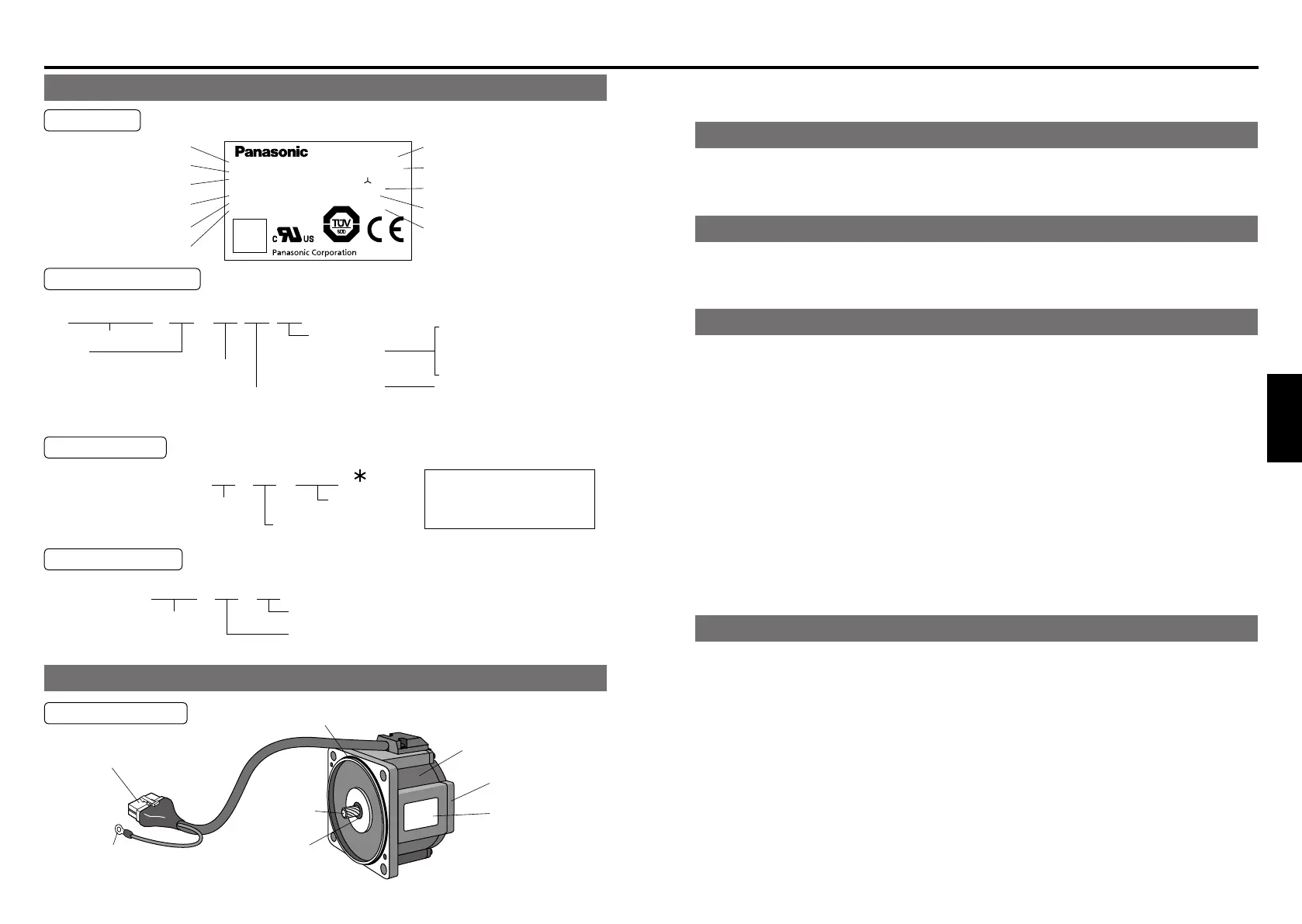

Product designation/ Name of each part
Model designation
MBMU 5A ZAX
Type
Function
A: Standard
Input power supply
1: 100 V
2: 200 V
Z: 100/200 V
Shaft specification
Output
5A: 50 W
9A: 90 W
1E: 130 W
GV series
(Velocity control type)
GP series
(Position control type)
X: For gear head MX8G
Z:
For gear head MZ9G, MY9G
S: Round shaft
B:
For gear head MB8G, MB9G
Serial number
Production date
12 08 0001Example) Ser. No.
Year of production
(Lower 2 digits of AD year)
Consecutive
number
The motor manufactured
in Aug. 2012 is given
the Serial number 0001.
Month of production
Checking the model number of brushless motor
Nameplate
IP65
Model No.
INPUT 3Φ AC
0 – 240 V
0.53 A
200 H z
0.16
N · m
105(A)–UL
130(B)–TUV
12080001N
20120801
TE,40 ° C
S1(CONT.)
3000 r/min
50 W
CONT.TORQUE
THERMAL
CONNECTION
SER. No.
RATING
RATED OUTPUT
RATED FREQ.
RATED REV.
S1: Continuous rating
Thermal class
Serial number
Production date
Motor type
Model number
Rated input voltage
Rated output
Rated frequency
Rated speed
Protection structure
Made in China
BRUSHLESS MOTOR
MBMU5AZAX
Connector for motor cable and
CS signal cable
Ground terminal
Oil seal
Output shaft
Safety precaution label
is affixed to the product.
O-ring (not provided on a round shaft model)
Motor nameplate
Bracket B
Frame
Name of part
Brushless motor
2012 08 01Example)
Year of production
(AD year)
Day of production
Month of production
Installation
This section describes the installation guidelines and the various considerations
that must be taken into account when planning the installation.
Transport
Use caution enough in transporting the unit to prevent injury by drop or fall, and
avoid damage to the equipment.
Storage
Keep the unit indoors in a clean and dry place free from vibration with little change
of temperature.
Location
Location gives great inuence upon the life of brushless amplier, therefore choose
a place in conformance with the conditions below:
(1) Indoors where the motor is not subjected to rain water and direct sun beam.
(2) Do not use the motor in corrosive atmosphere such as hydrogen sulde, sulfurous
acid, chlorine, ammonia, sulfur, gas chloride, gas sulde, acid, alkali, and salt, in the
atmosphere of combustible gas, or in the vicinity of ammables.
(3) Place not exposed to grinding liquid, oil mist, iron powder, and cutting particle.
(4) Well-ventilated place with little moisture, oil, or inundation, and place far from heat
source such as a furnace.
(5) Place easy to check and clean
(6) Place free from vibration
(7) Do not use the unit in an enclosed environment. Enclosing may raise the temperature
of motor (amplier), and shorten their life.
Caution in installing gear head
Install a device that will ensure safety operation of the system even if the following
failures should occur on the life end of gear head: idling by damaged teeth, locking
by bite, grease leakage, and the like.
•
As for application such as on a lifter or the like device, install a device for preventing drop
by damaged teeth.
•
As for application such as opening and closing of door, install a release device against
locking by gear biting.
•
As for food or textile equipment, install an oil pan for measures against grease leakage.
•
Do not install an encoder, sensor, contact, etc., in the proximity of gear head. Or
otherwise, protect such devices against grease leakage.
•
In order to prevent unexpected accident, be sure to perform daily check.
