NA-F62G6 / F65G6 / F70G6 / F75G6 / F75S6 / F70S6
18

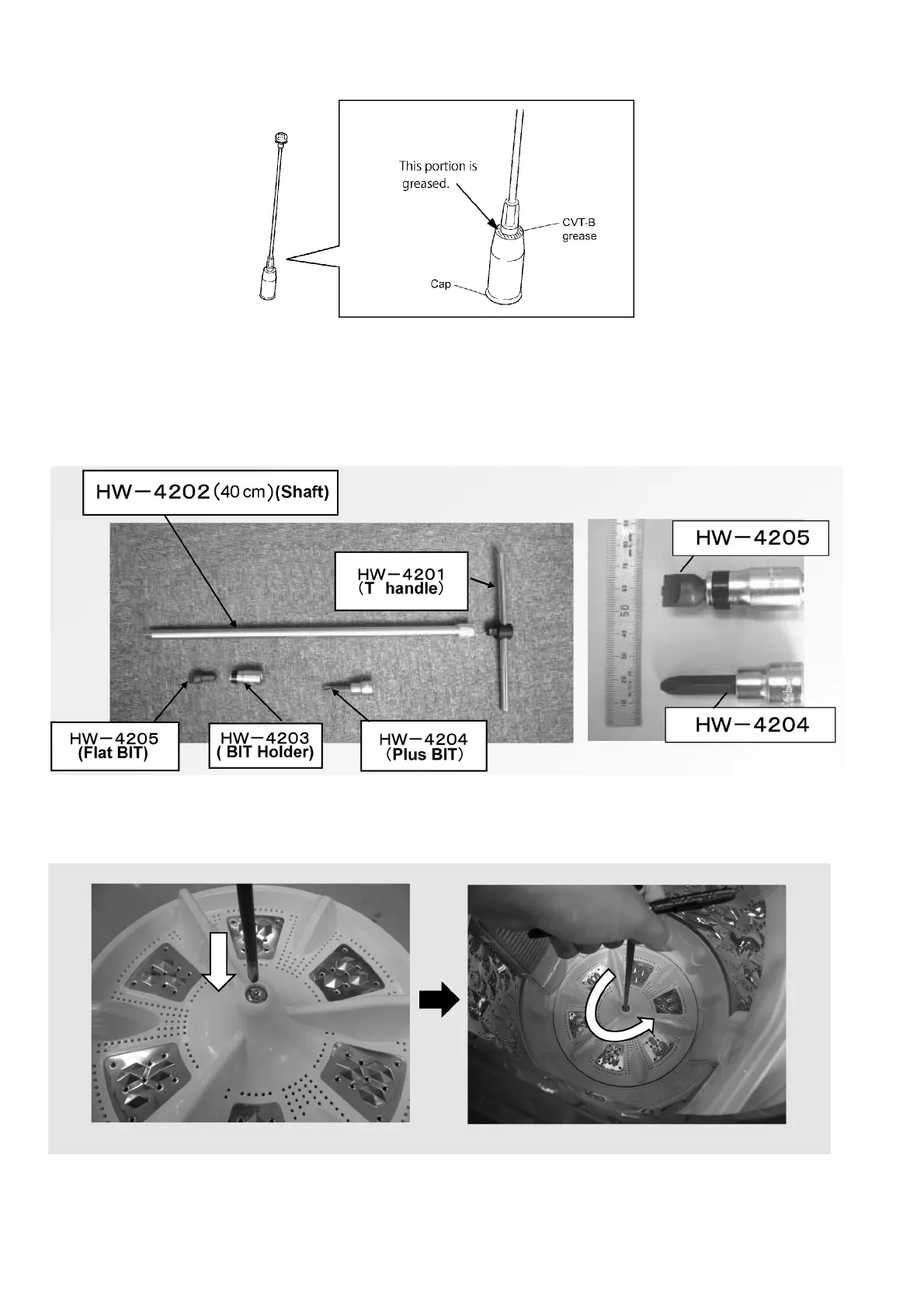

• CVT-B Grease
Please do not let this grease adhere to a cap and slide part absolutely.
The part becomes a damage.
It becomes a cause of abnormal vibration.
8.2. The option component tool for a repair service.
8.2.1. HW-42(Pulsator screw remover tool)
• It uses when removing the screw of a pulsator.
How to use
1. The shaft(HW-4202) and the T-handle(HW4201) are attached.
2. It uses attaching a Flat Bit(HW4205) or Plus Bit(HW4204) to A sets.
3. Remove the screw of the pulsator.
