Panasonic NA-F75G6

NA-F62G5 / F65G5 / F70G5 / F75G5 / F75S6 / F70S6
19

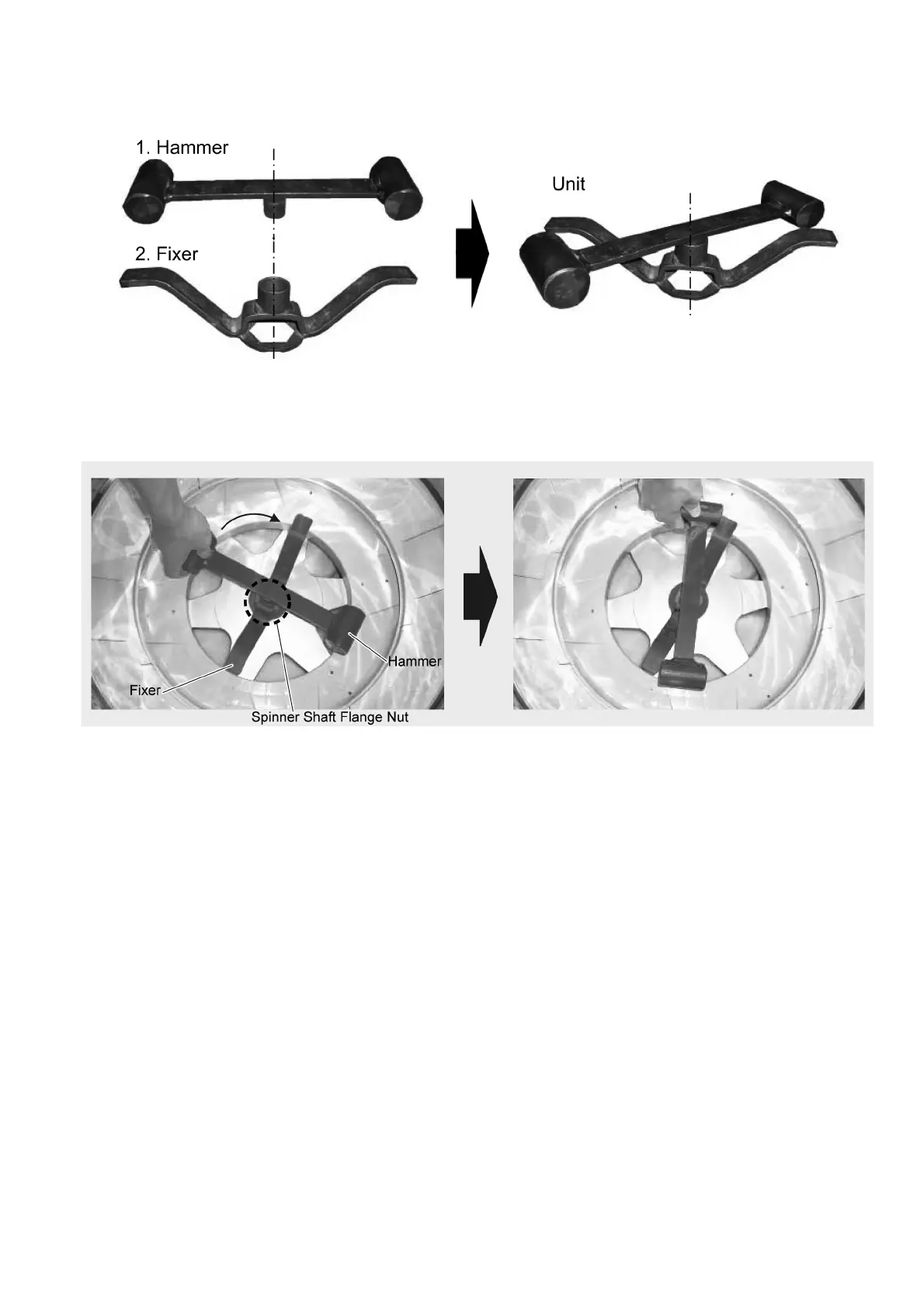

8.2.2. HW-25K (Flange nut remover tool)
• It uses when removing the screw of a Spinner Shaft Flange Nut.
How to use
1. Attach the "Fixer" to "Spinner Shaft Flange Nut".
2. Attach the "Hammer".
3. Rotate the "Hammer". (If a Fixer is struck, the nut will loosen.)
