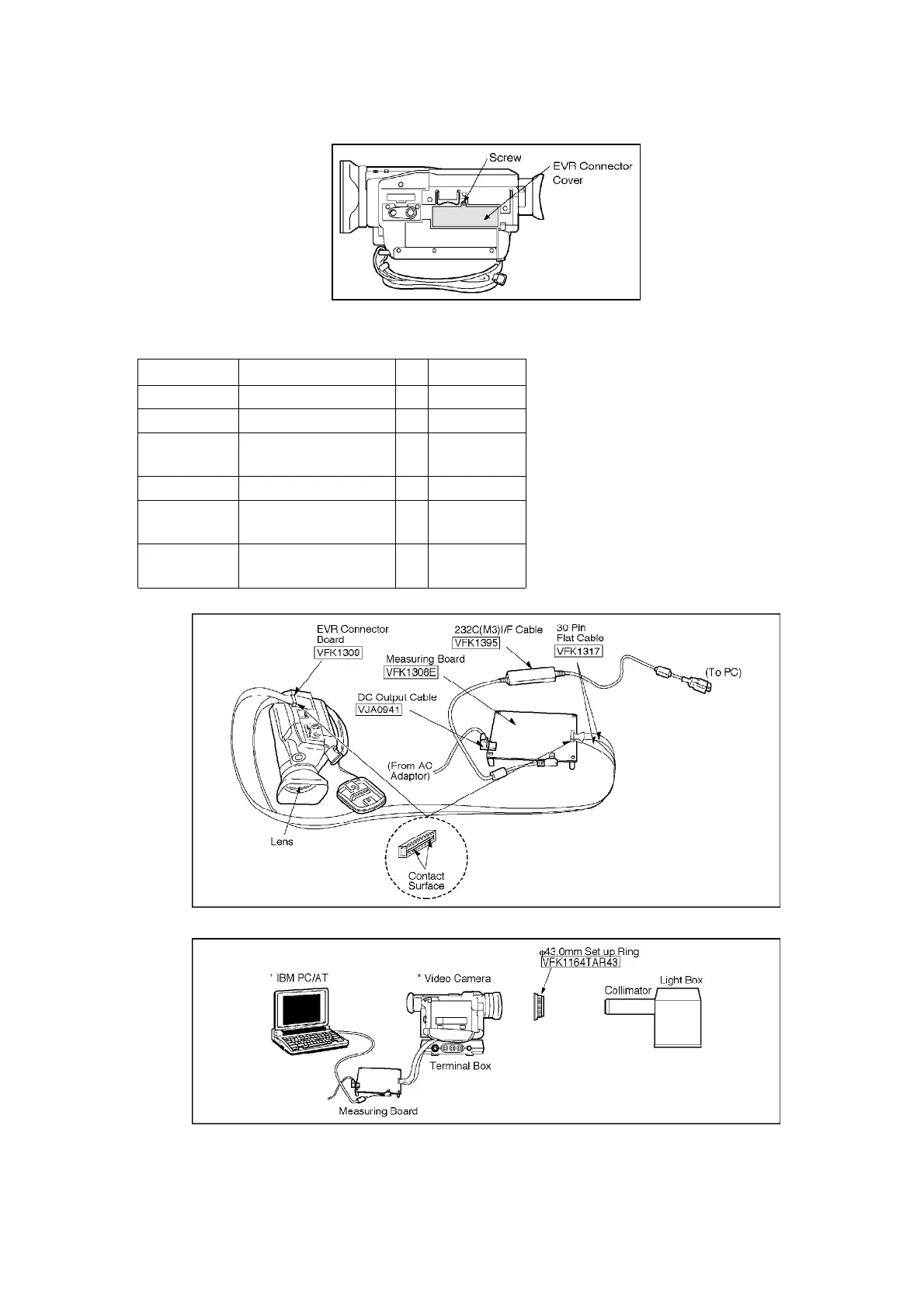

Fig.E1
Then connect the following cables as shown in Fig. E2.
Part No. Part Name
Q'ty
Remarks
VFK1395 232C (M3) I/F Cable 1
VFK1308E Measuring Board 1
VFK1309 EVR Connector
Board
1
VFK1317 30 Pin Flat Cable 2
VJA0941 DC Output Cable 1 For AC
Adapter
VFK1164TAR3A
Setup Ring (Φ
30.5mm)
1 For
Collimator
Fig.E2
Fig.E3
