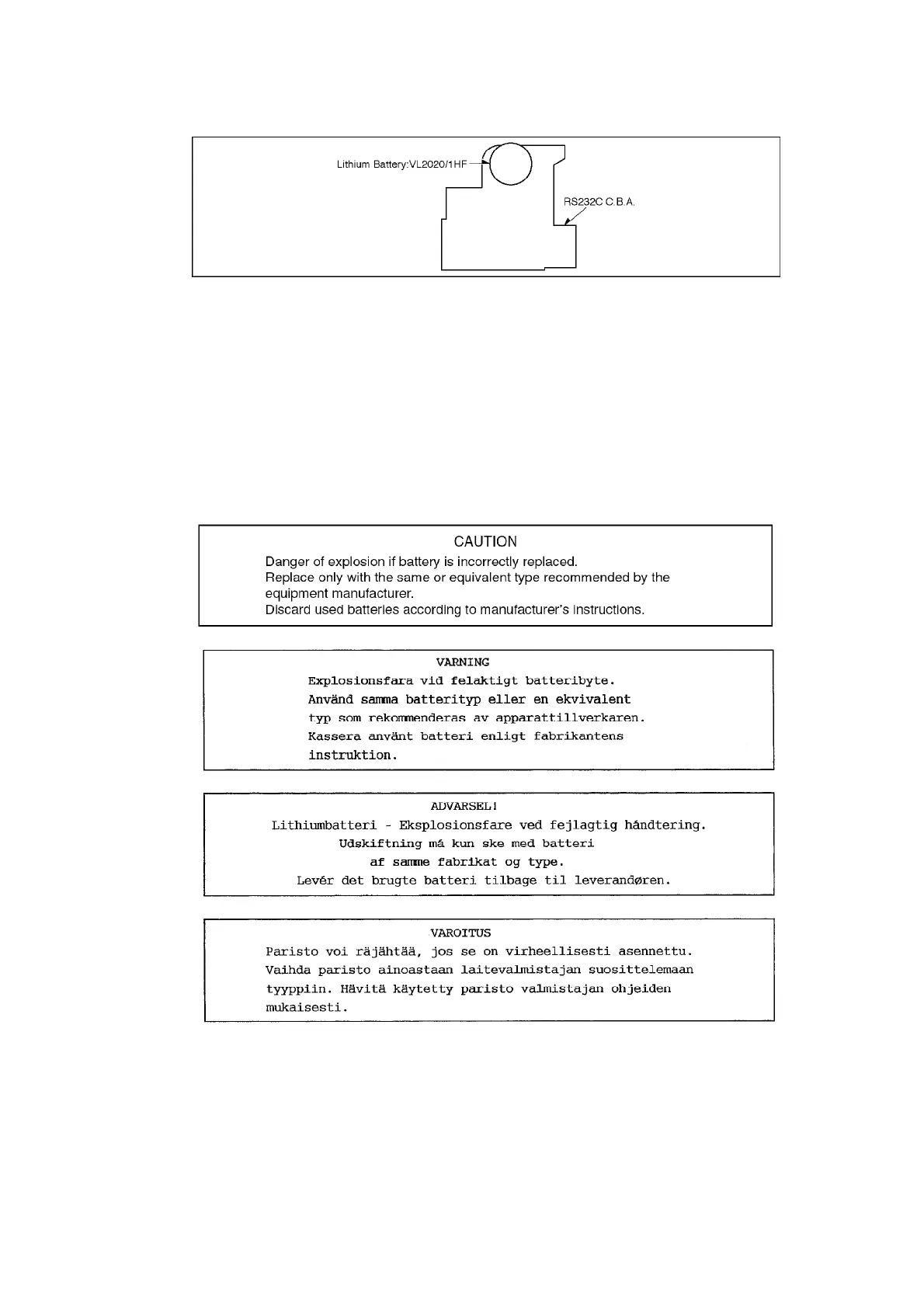

Fig.B1
Note:
The lithium battery is a critical component (Type No.: VL2020/1HF Manufactured by Panasonic.) /
It must never be subjected to excessive heat or discharge. / It must therefore only be fitted in
equipment designed specifically for its use. / Replacement batteries must be of the same type
and manufacture. / They must be fitted in the same manner and location as the original battery,
with the correct polarity contacts observed. / Do not attempt to re-charge the old battery or re-
use it for any other purpose. / It should be disposed of in waste products destined for burial
rather than incineration.
4. GENERAL DESCRIPTION
5. ADJUSTMENT PROCEDURES
5.1. DISASSEMBLE FLOW CHART
8
