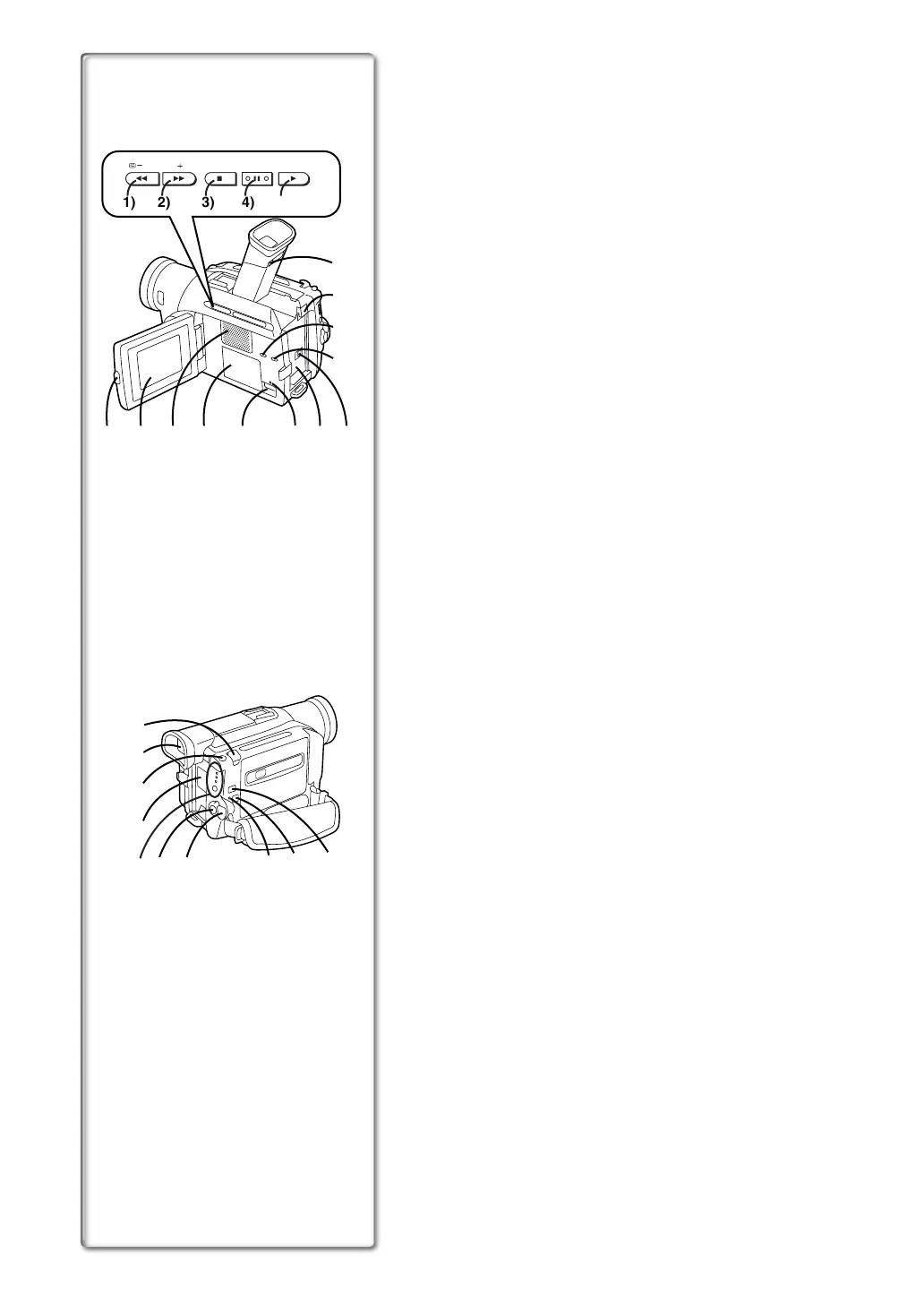

Controls and Components
1) Reverse Search Button [jSEARCH] (l 18)
Rewind/Review Button [6] (l 26)
Recording Check Button [S] (l 18)
2) Forward Search Button [SEARCHi] (l 18)
Fast Forward/Cue Button [5] (l 26)
3) Fade Button [FADE] (l 20)
Stop Button [∫] (l 26, 35)
4) Still Button [STILL] (l 19)
Pause Button [;] (l 27, 35)
5) Backlight Button [BLC] (l 22)
Play Button [1] (l 26, 35)
6) LCD Monitor Open Button [PUSH OPEN] (l 12)
7) LCD Monitor (l 12, 45)
.........................................................................................................................
≥Due to limitations in LCD production technology, there may be some
tiny bright or dark spots on the LCD Monitor screen. However, this is
not a malfunction and does not affect the recorded picture.
.........................................................................................................................
8) Speaker (l 26)
9) Card Compartment Cover (NV-DS37/DS38 only) (l 33)
10) Card Compartment Open Lever [OPEN] (NV-DS37/DS38 only) (l 33)
11) Card Access Lamp [ACCESS] (NV-DS37/DS38 only) (l 33)
12) Battery Holder
13) DC Input Socket [DC IN] (l 10)
14) Card Multi-Picture Button [CARD MULTI] (NV-DS37/DS38 only)
(l 34)
15) Title Button [TITLE] (NV-DS37/DS38 only) (l 36)
16) Battery Eject Button [PUSH] (l 10)
17) Eyepiece Corrector Knob (l 12)
18) Zoom Lever [W/T] (l 19)
19) Viewfinder (l 12, 45)
.........................................................................................................................
≥Due to limitations in LCD production technology, there may be some
tiny bright or dark spots on the Viewfinder screen. However, this is not
a malfunction and does not affect the recorded picture.
.........................................................................................................................
20) Photoshot Button [PHOTO SHOT] (l 19, 33, 34, 36)
21) Cover of the Button-type Battery’s Compartment
[BACKUP BATTERY] (l 17)
22) Mode Button [MODE]/Mode Lamps (l 12, 18, 26, 34)
23) Recording Start/Stop Button (l 18)
24) Movie Camera Off/On Switch [OFF/ON] (l 12, 18, 42)
25) Reset Button [RESET] (l 39)
26) Cassette Eject Lever [<EJECT] (l 11)
27) Tape/Card Photoshot Selector [TAPE/CARD] (NV-DS37/DS38 only)
(l 33)
