Before Use
-8-

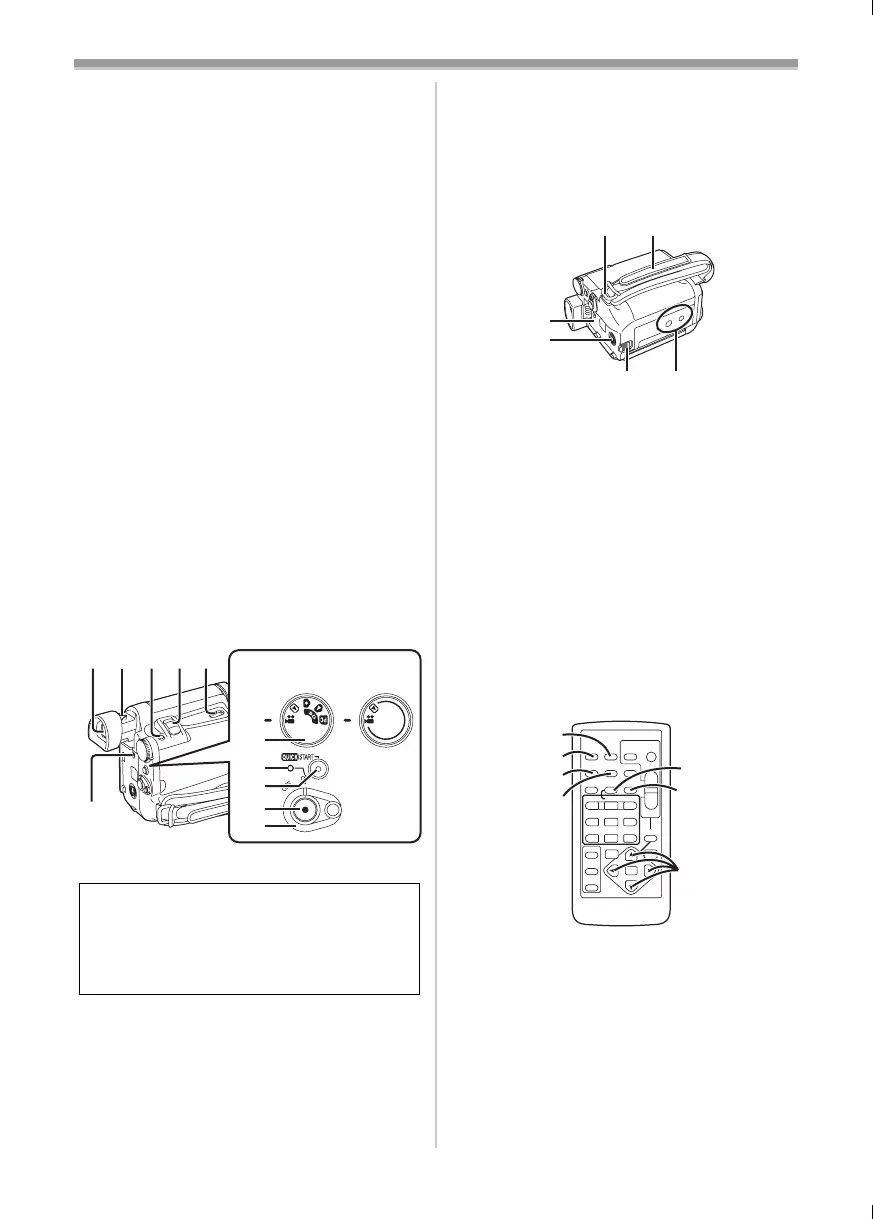

(29) DV Terminal [DV]
(Input function on NV-GS15 Model only)
-43-
≥Connect this to the digital video equipment
(30) Built-in LED Video Light -22-
(31)
White Balance Sensor -27-
Remote Control Sensor -10-
(32)
Audio-Video Output Socket [A/V OUT] -40-
Socket for Free Style Remote Controller
[REMOTE]
Headphone Socket [PHONES]
≥Connecting an AV Cable to this socket
activates the Movie Camera’s built-in
speaker, but connecting a headphone, etc.
deactivates it.
≥When connecting the pin plug of the AV
Cable to this socket, plug it in as far as it
goes.
≥When connecting the pin plug of the Free
style Remote Controller to this socket, plug
it in as far as it goes.
≥When using headphones, set [AV JACK] of
the [INITIAL] sub-menu to [OUT/PHONES].
If you set [AV JACK] to [OUT], you may
hear noises on the right.
(33) Microphone Socket [MIC]
≥When connecting an external microphone
or audio equipment to this socket, the
built-in microphone does not operate.
(34) Viewfinder -14-, -56-
(35)
Eyepiece Corrector Knob -14-
(36)
Photoshot Button [PHOTO SHOT] -21-,
-22-, -41-
(37)
Zoom Lever [W/T] [`VOL/JOG_] -23-
(38)
Cassette Eject Lever [OPEN/EJECT] -13-
(39)
Mode Dial -14-
(40)
Power Lamp -14-, -20-, -32-
Due to limitations in LCD production
technology, there may be some tiny bright or
dark spots on the Viewfinder screen.
However, this is not a malfunction and does
not affect the recorded picture.
(39)
(40)
(41)
(42)
(43)
(34)(35)(36)(37)(38)
NV-GS15
NV-GS8/
NV-GS11
(44)
(41)
Quick Start Recording Button
[QUICK START]
-23-
Quick Start Recording Lamp -23-
(42)
Recording Start/Stop Button -20-
(43)
Power Switch [OFF/ON] -14-, -20-, -53-
(44)
DC Input Socket [DC/C.C.IN] -10-
(45)
Shoulder Strap Holders -12-
(46)
Grip Belt -12-
(47)
Battery Holder
(48) S-Video Output Socket [S-VIDEO OUT]
-40-
(49)
Battery Release Lever
[BATTERY RELEASE]
-11-
(50)
Tripod Receptacle
≥Used for mounting the Movie Camera on an
optional tripod.
ª Remote Controller
(supplied with NV-GS11 and NV-GS15)
Using the wireless Remote Controller that is
supplied with the Movie Camera, most of the
Movie Camera functions can be operated from a
distance.
(51) Date/Time Button [DATE/TIME] -47-
(52)
Indication Output Button [OSD] -40-
(53)
Display Button [DISPLAY] -47-
(54)
Reset Button [RESET] -60-
(55)
Recording Button [¥REC] (Available only
with NV-GS15)
-43-
(56)
Audio Dubbing Button [A.DUB] -41-
(57)
Cursor Buttons for Variable Speed
Search Function [π, ∫]
-33-
Direction Buttons for Playback Zoom
Function [π, ∫, ∑, ∏]
-35-
(45) (46)
(49) (50)
(47)
(48)
ZOOM
INDEX INDEX
SELECT
STORE
STOP
KL
∫
OSD
DISPLAY
V
/REW
STILL ADV
OFF/ON
P.B.DIGITAL
DATE/
TIME
RESET
TITLE
T
W
sVOL r
¥REC
MULTI/
P-IN-P
SHOT
START/
STOP
A.DUB
PLAY
PAU SE
FF/
W
STILL ADV
ENTER
61 5
;
ED
VAR .
SEARCH
MENU
P.B. ZOOM
(51)
(52)
(53)
(54)
(55)
(56)
(57)
