Handling of OLED TV
Handling NG area
(Handling OK)
Rear cover area
w/ reinforcement parts
(Handling NG)
Panel upper side area
w/o reinforcement parts
1. Notes of handling the OLED TV
The thickness of the OLED TV is much thinner than that of LCD. The minimum thickness of OLED TV is about 7mm.
(There is no rear cover at top side.)
So the shape of OLED TV(panel) bends or undulates more easily than that of LCD.
When setting or moving OLED TV, it is necessary to handle politely and carefully.
FZ1000/950/800
2. Handling rule for Service

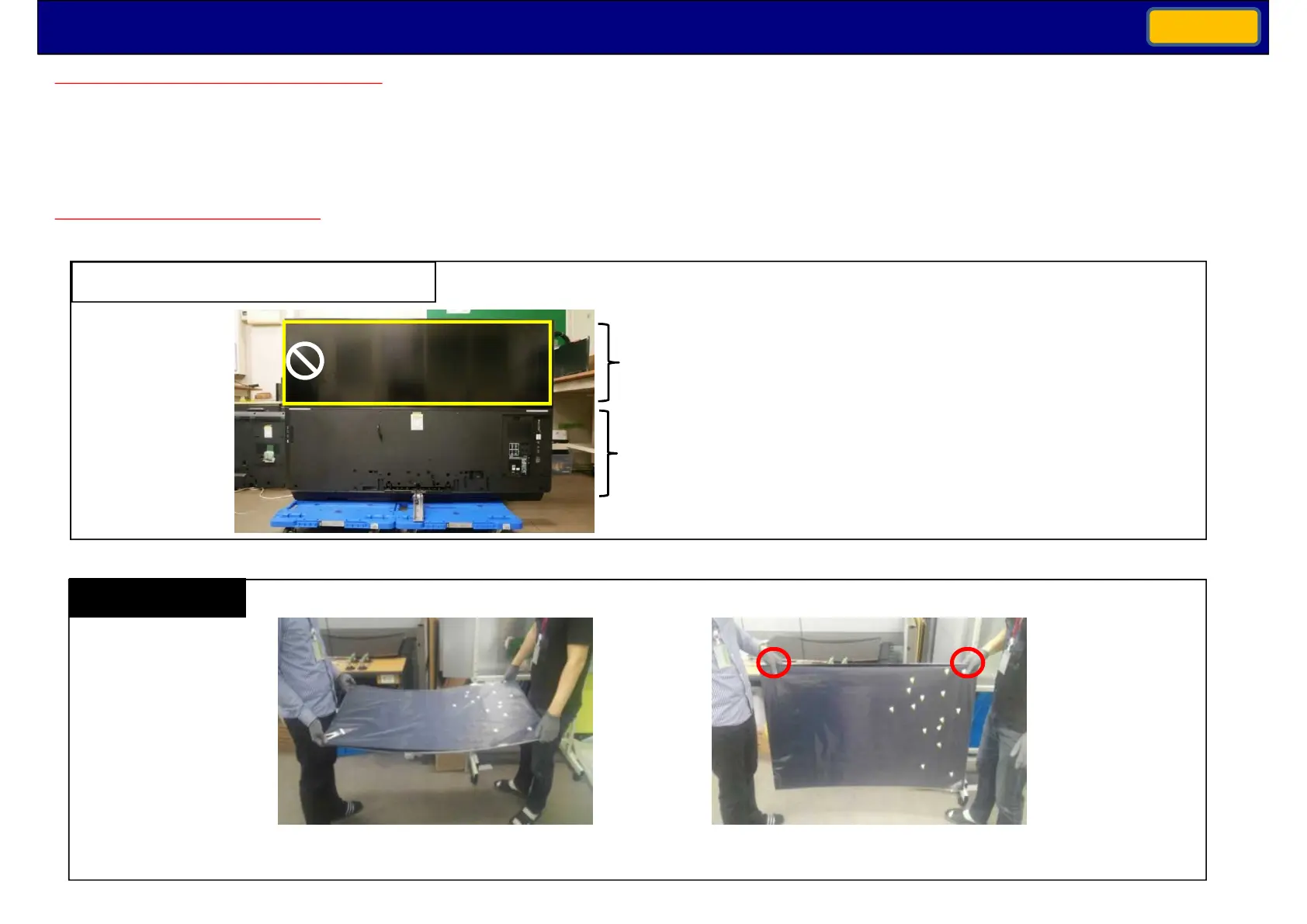

Handling area : Rear cover area (= Area where reinforcement parts are mounted on the back of panel)
Handling NG
*Not to move OLED TV (panel)
in parallel position.
*Not to move OLED TV (panel) with one hand
grasping at upper side.
Example 1 Example 2
79
OLED
* TH-TC-**FZ1000 / TX-**FZ950 :
Don’t handle the separate speaker
To Next Page
