Panasonic Omnivision PV-8450 User Manual

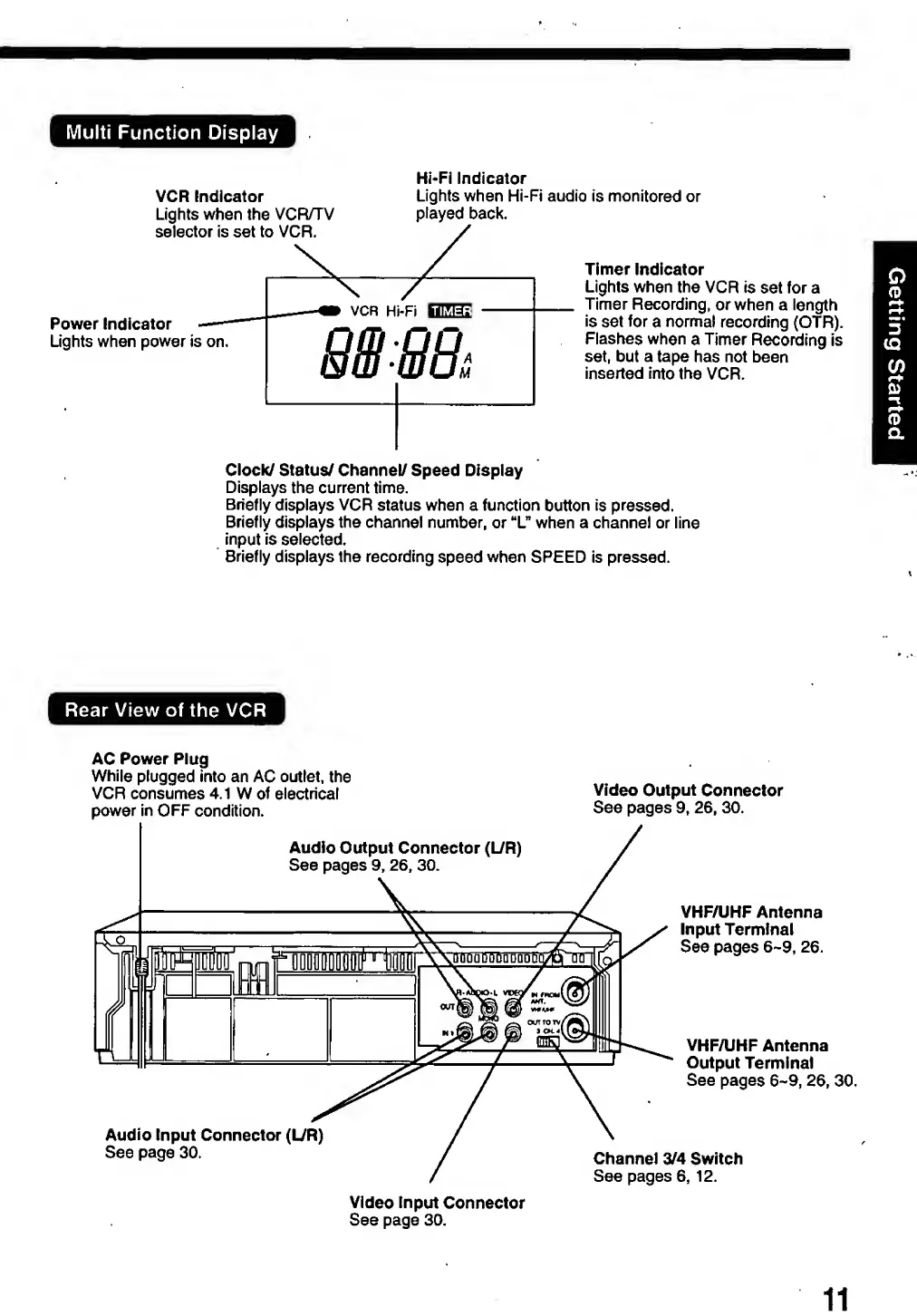

Multi Function Display
VCR Indicator
Lights when the VCR/TV
selector is set to VCR.
Hi<Fi Indicator
Lights when Hi-Fi audio is monitored or
played back.
Power Indicator -—-
Lights when power Is on.
4m VCR Hi-Fi
8sm
Timer Indicator
Lights when the VCR Is set for a
Timer Recording, or when a length
is set for a norma! recording (OTR).
Flashes when a Timer Recording is
set, but a tape has not been
inserted Into the VCR.
Clock/ Status/ Channel/ Speed Display
Displays the current time.
Briefly displays VCR status when a function button is pressed.
Briefly displays the channel number, or “L" when a channel or line
Input is selected.
Briefly displays the recording speed when SPEED is pressed.
Rear View of the VCR
AC Power Plug
While plugged into an AC outlet, the
VCR consumes 4.1 W of electrical
power in OFF condition.
Video Output Connector
See pages 9, 26, 30.
Audio Output Connector (L/R)
See pages 9, 26, 30.
VHF/UHF Antenna
Input Terminal
See pages 6~9, 26.
VHF/UHF Antenna
Output Terminal
See pages 6-9, 26, 30.
Audio Input Connector (L/R)
See page 30.
Channel 3/4 Switch
See pages 6,12.
Video Input Connector
See page 30.
11
Getting
Started

Panasonic Omnivision PV-8450 Specifications

General

Brand	Panasonic
Model	Omnivision PV-8450
Category	VCR
Language	English
