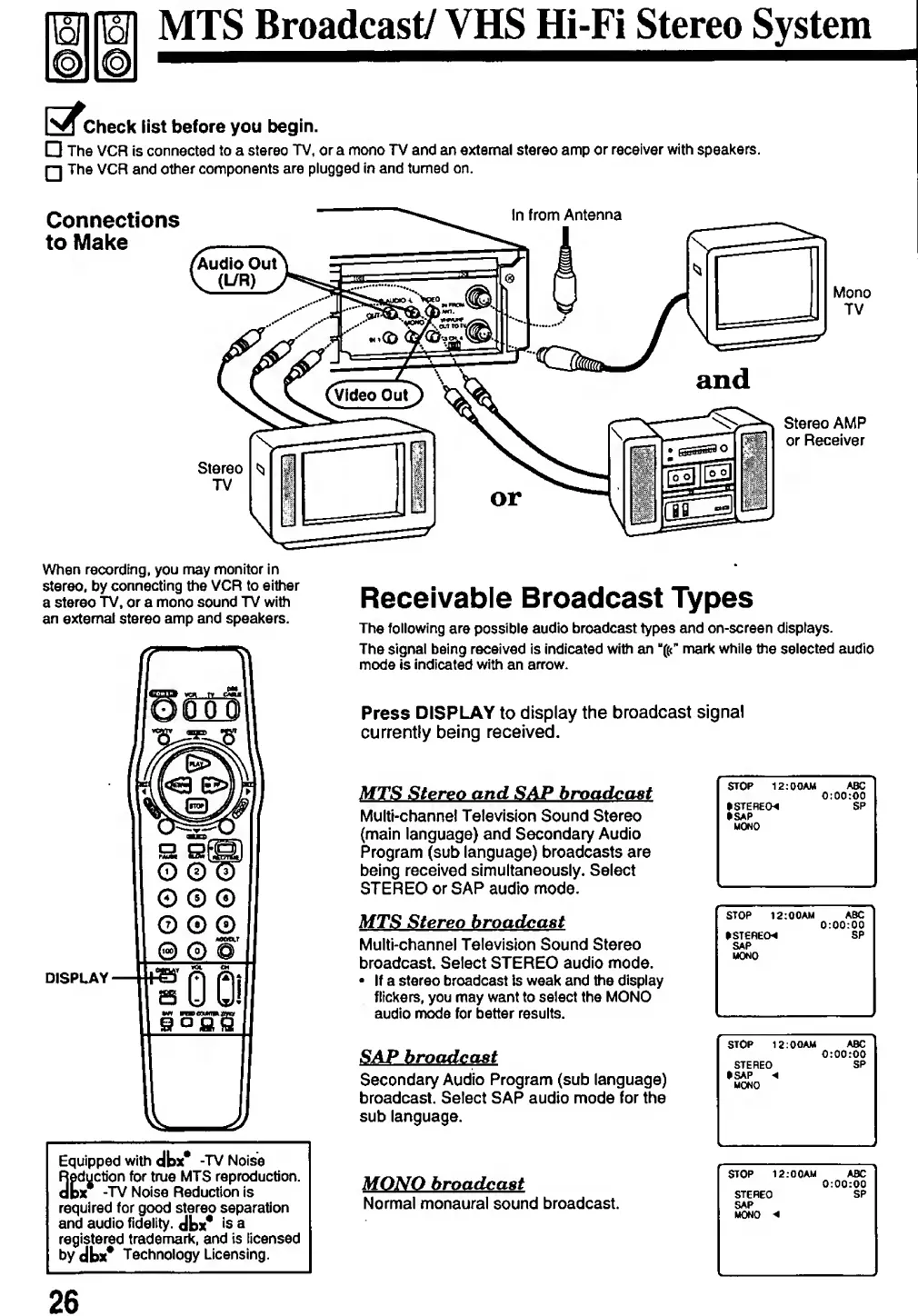

MTS Broadcast/ VHS Hi-Fi Stereo System
1^9 Check list before you begin.
D The VCR is connected to a stereo TV, or a mono TV and an external stereo amp or receiver with speakers.
Q The VCR and other components are plugged in and turned on.
Connections
to Make
'Audio Out
^ (L^R) >
Stereo
TV
In from Antenna
,,<J)
.Video Out
and
Stereo AMP
or Receiver
When recording, you may monitor in
stereo, by connecting the VCR to either
a stereo TV, or a mono sound TV with
an external stereo amp and speakers.
Receivable Broadcast Types
The following are possible audio broadcast types and on-screen displays.
The signal being received is indicated with an “(ct” mark while the selected audio
mode is indicated with an arrow.
DISPLAY-
I 1
15 S p i^a]
O © G)
O 0 ©
© © ©
© © ©
Press DISPLAY to display the broadcast signal
currently being received.
Multi-channel Television Sound Stereo
(main language) and Secondary Audio
Program (sub language) broadcasts are
being received simultaneously. Select
STEREO or SAP audio mode.
MTS Stereo broadcast
Multi-channel Television Sound Stereo
broadcast. Select STEREO audio mode.
• If a stereo broadcast is weak and the display
flickers, you may want to select the MONO
audio mode for better results.
Secondary Audio Program (sub language)
broadcast. Select SAP audio mode for the
sub language.
STOP 12:00AM
ABC
( >:00:00
• STERECM
• SAP
MONO
SP
STOP 12:00AM
ABC
0:00:00
• STERE04 SP
SAP
MONO
STOP 12:00AM ABC
0:00:00
STEREO SP
• SAP ^
MONO
Equipped with dbx* -TV Noise
Reduction for true MTS reproduction,
dbx* -TV Noise Reduction is
required for good stereo separation
and audio fidelity. dbx* is a
registered trademark, and is licensed
by dbx* Technology Licensing.
Normal monaural sound broadcast.
STOP 12:O0AM ABC
0 : 0 0:00
STEREO SP
SAP
MONO ■ *
26
