Panasonic Omnivision PV-8450 User Manual

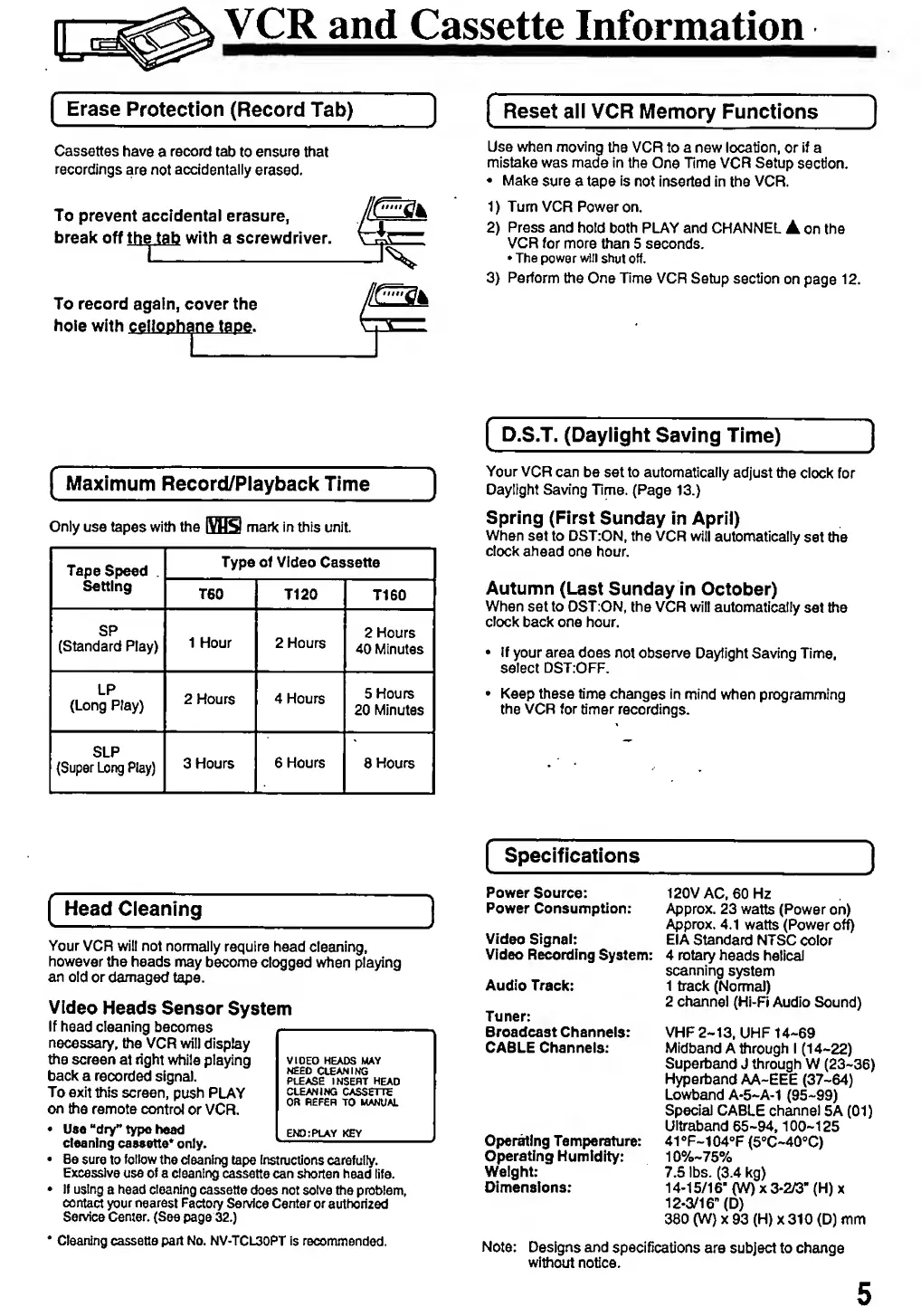

VCR and Cassette Information
. . \
Erase Protection (Record Tab)
- >
Reset all VCR Memory Functions
Cassettes have a record tab to ensure that
recordings are not accidentally erased.
To prevent accidental erasure,
break off the tab with a screwdriver.
To record again, cover the
hole with cellophane tape .
Use when moving the VCR to a new location, or if a
mistake was made in the One Time VCR Setup section.
• Make sure a tape is not inserted in the VCR.
1) Turn VCR Power on.
2) Press and hold both PLAY and CHANNEL A on the
VCR for more than 5 seconds.
• The power wUI shut off.
3) Perform the One Time VCR Setup section on page 12.
Maximum Record/Playback Time
Only use tapes with the ivnsi mark in this unit.
Tape Speed .
Setting
Type of Video Cassette
T60 T120
T160
SP
(Standard Play)
1 Hour
2 Hours
2 Hours
40 Minutes
LP
(Long Play)
2 Hours
4 Hours
5 Hours
20 Minutes
SLP
(Super Long Play)
3 Hours
6 Hours
8 Hours
D.S.T. (Daylight Saving Time)
Your VCR can be set to automatically adjust the clock for
Daylight Saving Time. (Page 13.)
Spring (First Sunday in April)
When set to DST:ON, the VCR will automatically set the
clock ahead one hour.
Autumn (Last Sunday in October)
When set to OST:ON, the VCR will automatically set the
clock back one hour.
• If your area does not observe Daylight Saving Time,
select DST:OFF.
• Keep these time changes in mind when programming
the VCR for timer recordings.
Head Cleaning
—
Your VCR will not normally require head cleaning,
however the heads may become clogged when playing
an old or damaged tape.
Video Heads Sensor System
If head cleaning becomes
necessary, the VCR will display
the screen at tight while playing
back a recorded signal.
To exit this screen, push PLAY
on the remote control or VCR.
• Use “dry” type head
cleaning cassette* only.
• Be sure to follow the cleaning tape instmctions carefully.
Excessive use of a cleaning cassette can shorten head life.
• If using a head cleaning cassette does not solve the problem,
contact your nearest Factory Service Center or authorized
Service Center. (See page 32.)
• Cleaning cassette part No. NV-TCL30PT is recommended.
VIDEO HEADS MAY
NEED CLEANING
PLEASE INSERT HEAD
CLEANING CASSETTE
OR REFER TO MANUAL
ENOrPLAY KEY
Specifications
Power Source:
Power Consumption:
Video Signal:
Video Recording System:
Audio Track:
Tuner:
Broadcast Channels:
CABLE Channels:
Operating Temperature:
Operating Humidity:
Weight:
Dimensions:
120V AC, 60 Hz
Approx. 23 watts (Power on)
Approx. 4.1 watts (Power off)
El A Standard NTSC color
4 rotaiy heads helical
scanning system
1 track (NormaJ)
2 channel (Hi-R Audio Sound)
VHF2~13, UHF 14-69
Midband A through I (14-22)
Superband J through W (23-36)
Hyperband AA-EEE (37-64)
Lowband A-5-A-1 (95-99)
SpeciEii CABLE channel 5A (01)
Ultraband 65-94,100-125
41*F-104“F (5"C-40°C)
10%-75%
7.5 lbs. (3.4 kg)
14-15/16’(W)x 3*2/3” (H)x
12*3/16" (D)
380 (W) X 93 (H) X 310 (D) mm
Note: Designs and specifications are subject to change
without notice.
5
