Panasonic Omnivision PV-8450 User Manual

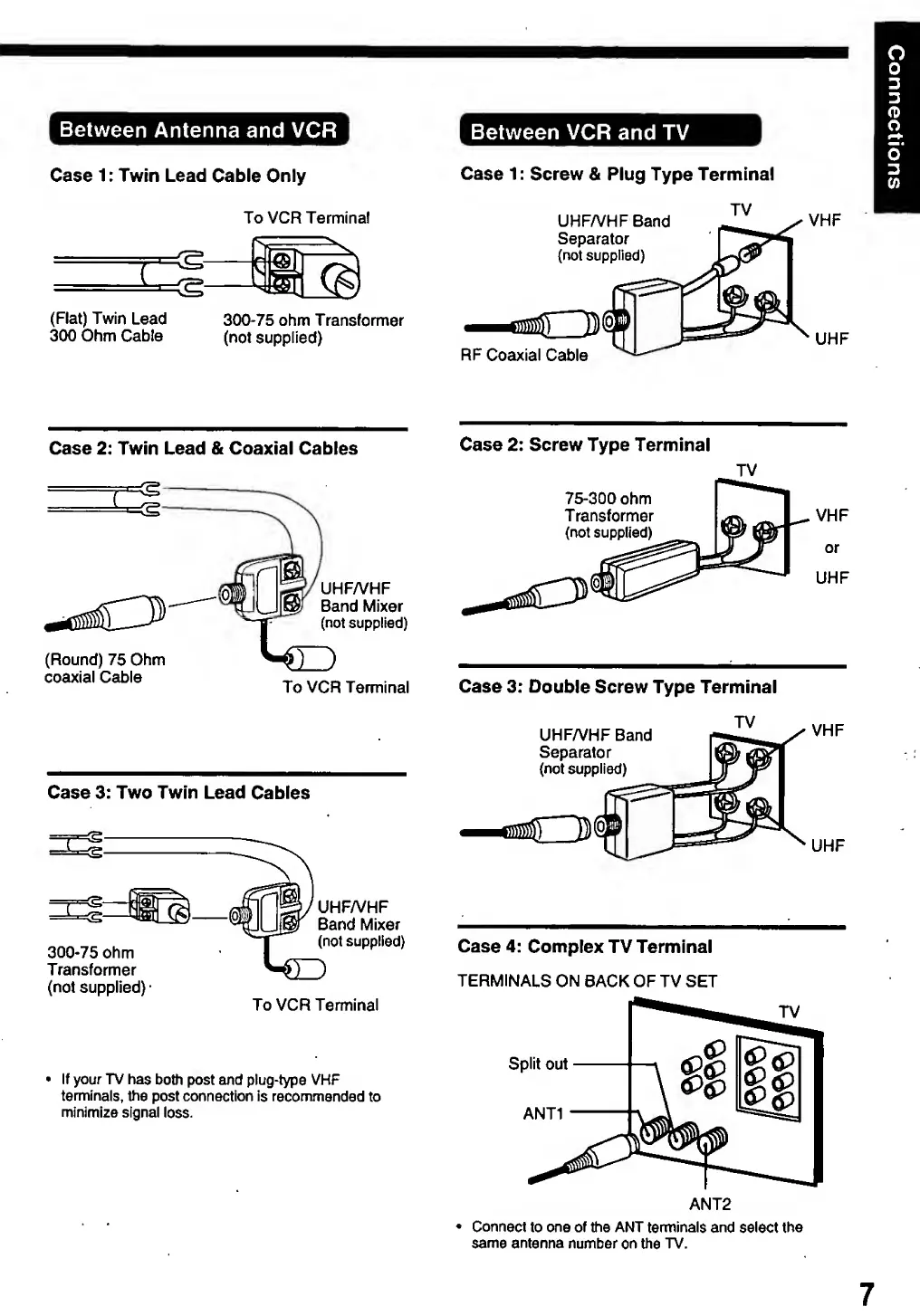

Case 2 : Twin Lead & Coaxial Cables
Case 2: Screw Type Terminal
(Round) 75 Ohm
coaxial Cable
r U H F A/HF
Band Mixer
(not supplied)
To VCR Terminal
75-300 ohm
T ransformer
(not supplied)
Case 3: Double Screw Type Terminal
Case 3: Two Twin Lead Cables
UHFA/HF Band
Separator
(not supplied)
300-75 ohm
Transformer
(not supplied)
UHFA/HF
Band Mixer
(not supplied)
To VCR Terminal
If your TV has both post and plug-type VHF
terminals, the post connection is recommended to
minimize signal loss.
Case 4: Complex TV Terminal
TERMINALS ON BACK OF TV SET
gill
ANT2
Connect to one of the ANT terminals and select the
same antenna number on the TV.
7
