o
3
3
O
IN FROM
CABLE or Antenna in FROM
1) Record and view any channel including
scrambled channels; channel selection
must be made at the DSS Receiver.
2) Program one channel for unattended
recording.
NOTE: The DSS receiver must be turned off to view
programs from a cable box or antenna. See the
DSS manual for details. VHF/UHF
••DSS® is a registered trademark of DIRECTV, INC., a unit of GM Hughed Electronics.

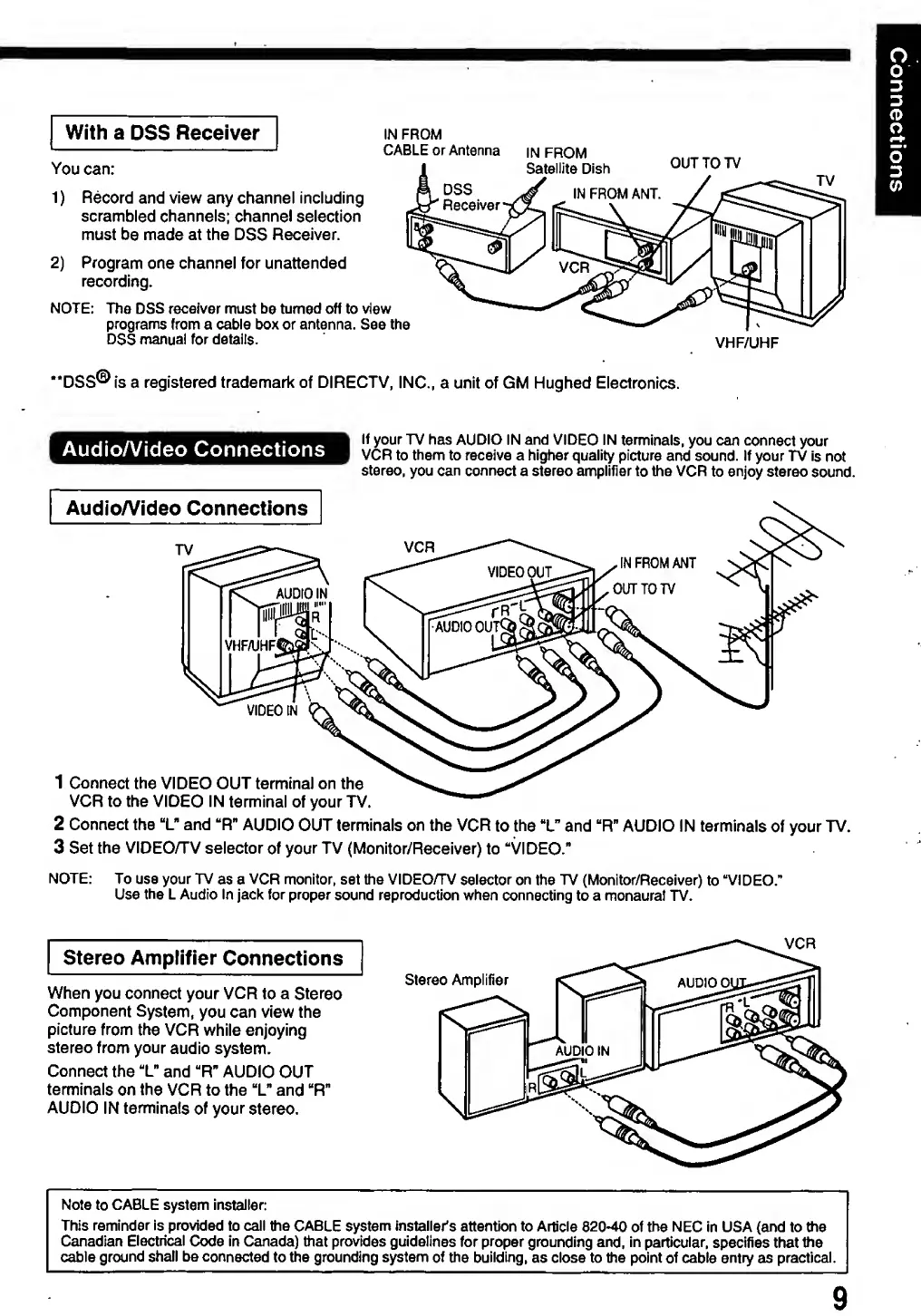

With a DSS Receiver
You can:
AudloA/ideo Connections
If your TV has AUDIO IN and VIDEO IN terminals, you can connect your
VCR to them to receive a higher quality picture and sound. If your TV is not
stereo, you can connect a stereo amplifier to the VCR to enjoy stereo sound.
Audio/Video Connections
AUDIO IN
VHF/UHF<
VIDEO IN
IN FROM ANT
1 Connect the VIDEO OUT terminal on the
VCR to the VIDEO IN terminal of your TV.
2 Connect the “L” and “R" AUDIO OUT terminals on the VCR to the “L” and “R" AUDIO IN terminals of your TV.
3 Set the VIDEO/TV selector of your TV (Monitor/Receiver) to “VIDEO."
To use your TV as a VCR monitor, set the VIDEO/TV selector on the TV (Monitor/Receiver) to “VIDEO.”
Use the L Audio In jack for proper sound reproduction when connecting to a monaural TV.
Stereo Amplifier Connections
When you connect your VCR to a Stereo
Component System, you can view the
picture from the VCR while enjoying
stereo from your audio system.
Connect the “L" and “R” AUDIO OUT
terminals on the VCR to the “L" and “R”
AUDIO IN terminals of your stereo.
Note to CABLE system installer;
This reminder is provided to call the CABLE system installer's attention to Article 820*40 of the NEC in USA (and to the
Canadian Electrical Code in Canada) that provides guidelines for proper grounding and, in particular, specifies that the
cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical
