5.1.8.1 Disassembly Procedure
TOP PREVIOUS NEXT
1. Slide Holder Unit (refer to " METHOD FOR LOADING/UNLOADING OF MECHANISM "
in Service Notes) to gain access to 2 Screws (J) for removal.
2. Remove Screw (K).
3. Unhook Spring (A).
4. Slide the Cassette Up Ass´y towards the front to release Locking Tab (J). Then, lift it up and
remove.

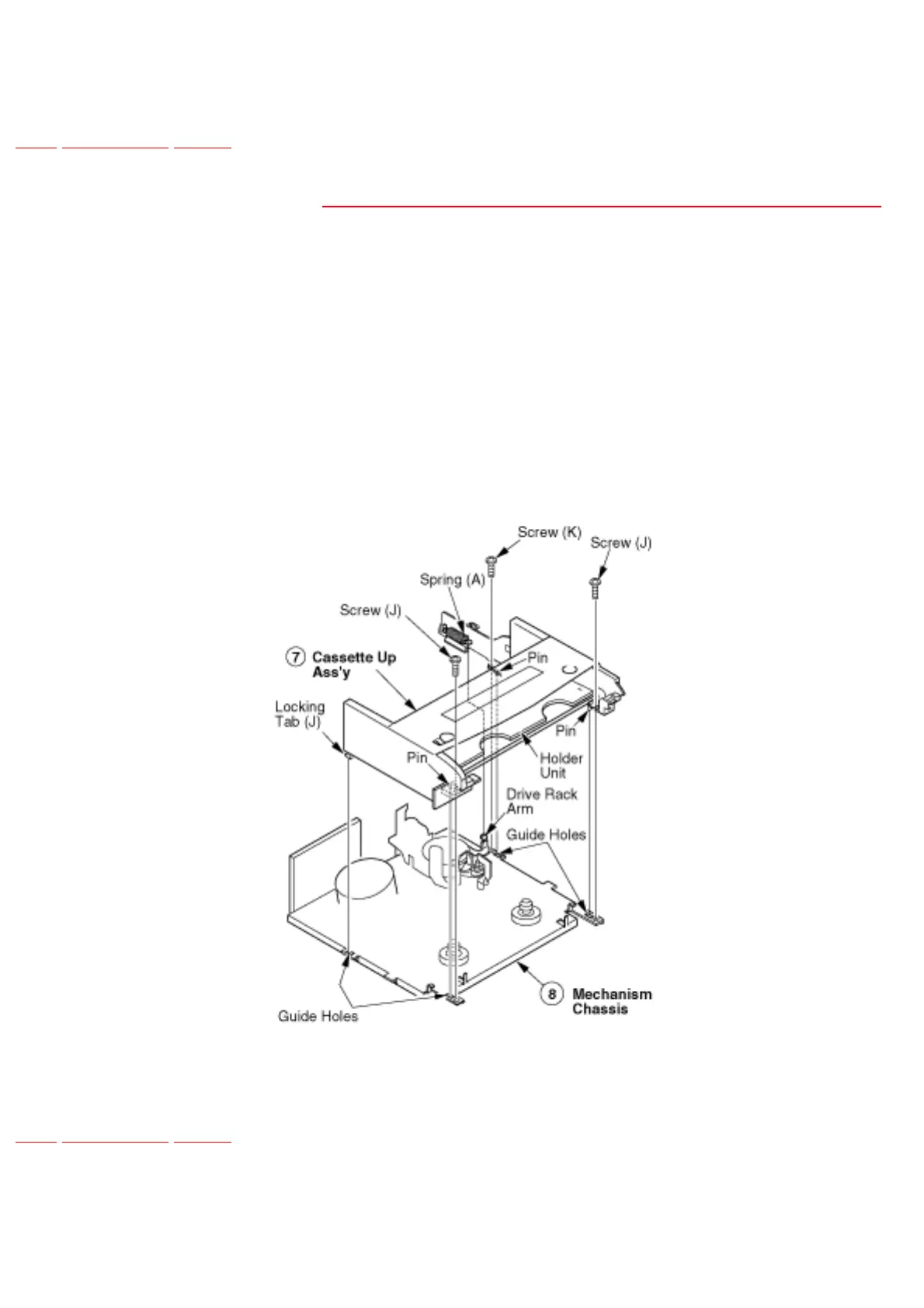

Fig. D8
