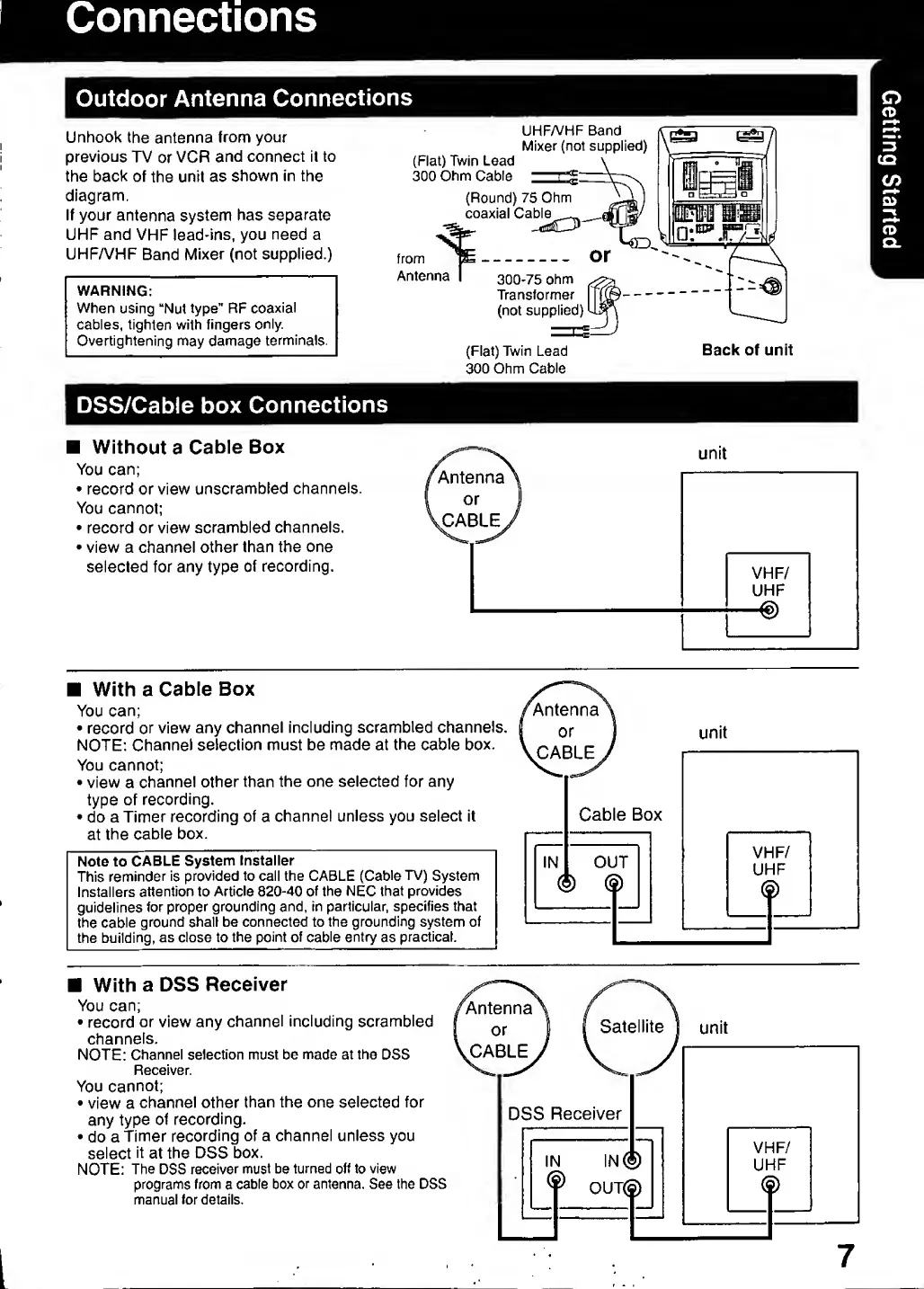

Connections
Outdoor Antenna Connections
Unhook the antenna from your
previous TV or VCR and connect it to
the back of the unit as shown in the
diagram.
If your antenna system has separate
UHF and VHF lead-ins, you need a
UHF/VHF Band Mixer (not supplied.)
WARNING:
When using “Nut type" RF coaxial
cables, tighten with fingers only.
Overtightening may damage terminals.
from
Antenna
(Flat) Twin Lead
300 Ohm Cable
Back of unit
DSS/Cable box Connections
■ Without a Cable Box
You can;
• record or view unscrambled channels.
You cannot;
• record or view scrambled channels.
• view a channel other than the one
selected for any type of recording.
■ With a Cable Box
You can;
• record or view any channel including scrambled channels.
NOTE: Channel selection must be made at the cable box.
You cannot;
• view a channel other than the one selected for any
type of recording.
• do a Timer recording of a channel unless you select it
at the cable box.
Note to CABLE System Installer
This reminder is provided to call the CABLE (Cable TV) System
Installers attention to Article 820-40 of the NEC that provides
guidelines for proper grounding and, in particular, specifies that
the cable ground shall be connected to the grounding system of
the building, as close to the point of cable entry as practical.
Cable Box
—
IN
£
OL
b d
JT
»
\ _
unit
■ With a DSS Receiver
You can;
• record or view any channel including scrambled
channels.
NOTE: Channel selection must be made at the DSS
Receiver.
You cannot;
• view a channel other than the one selected for
any type of recording.
• do a Timer recording of a channel unless you
select it at the DSS box.
NOTE: The DSS receiver must be turned off to view
programs from a cable box or antenna. See the DSS
manual for details.
