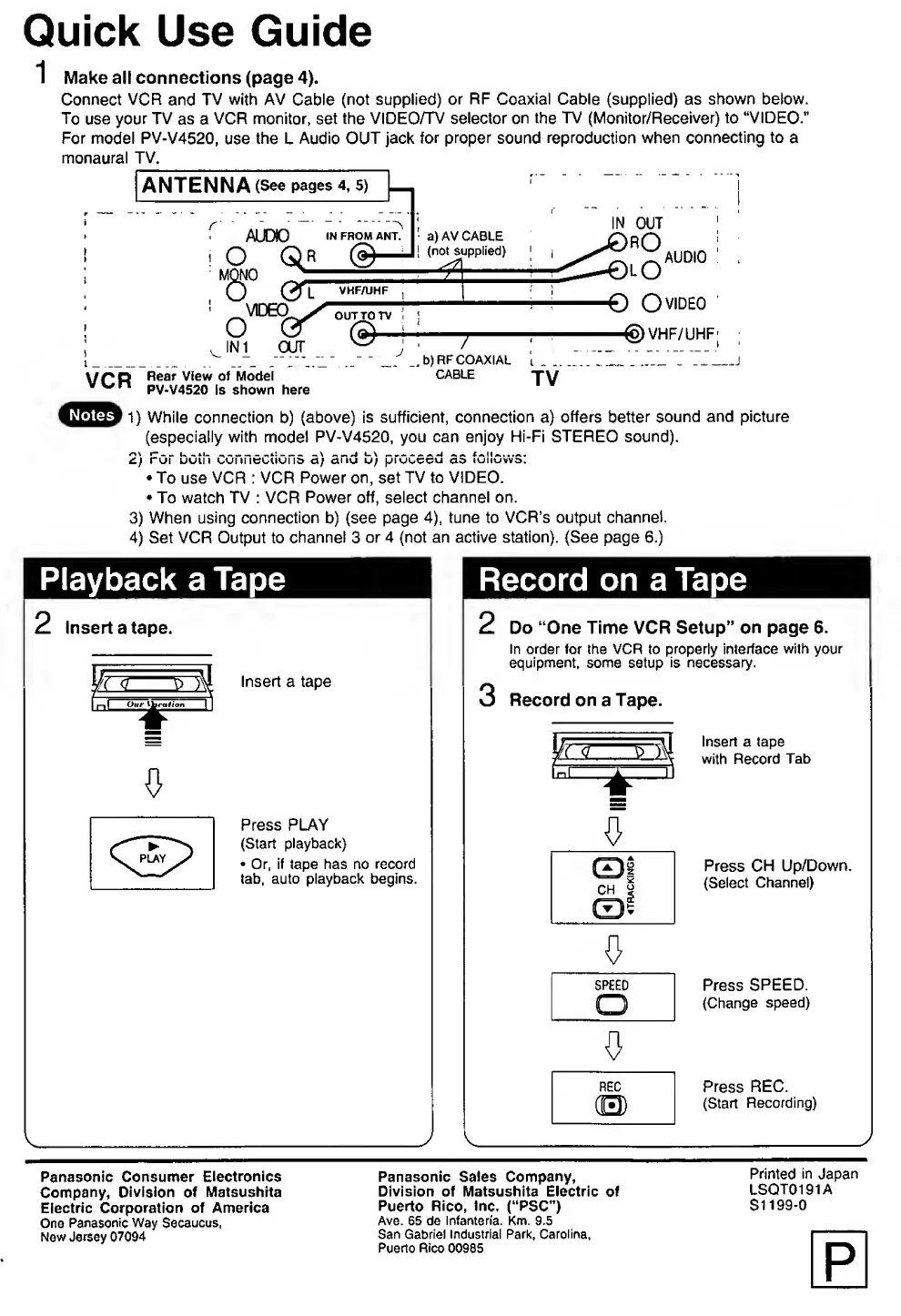

Panasonic Omnivision PVQ-V200 User Manual

Quick Use Guide
Make all connections (page 4).
Connect VCR and TV with AV Cable (not supplied) or RF Coaxial Cable (supplied) as shown below.
To use your TV as a VCR monitor, set the VIDEO/TV selector on the TV (Monitor/Receiver) to “VIDEO."
For model PV-V4520, use the L Audio OUT jack for proper sound reproduction when connecting to a
monaural TV.
ANTENNA (See pages 4^5) L_ I
VCR
: AUDIO
' O G
MONO .
Rear View of Model
PV-V4520 is shown here
_ , -
IN FROM ANT.
a) AV CABLE
[ (not supplied)
b)RF COAXIAL l..
CABLE JY
IN OUT '
0rO
0 O VIDEO
—©VHF/UHF-
1) While connection b) (above) is sufficient, connection a) offers better sound and picture
(especially with model PV'V4520, you can enjoy Hi-Fi STEREO sound).
• To use VCR : VCR Power on, set TV to VIDEO.
• To watch TV : VCR Power off, select channel on.
3) When using connection b) (see page 4), tune to VCR’s output channel.
4) Set VCR Output to channel 3 or 4 (not an active station). (See page 6.)
Playback a Tape
Insert a tape.
Insert a tape
Record on a Tape
2 Do “One Time VCR Setup” on page 6.
In order for the VCR to properly interface with your
equipment, some setup is necessary.
3 Record on a Tape.
Insert a tape
with Record Tab
Press PLAY
(Start playback)
• Or, if tape has no record
tab, auto playback begins.
Press CH Up/Down.
(Select Channel)
Press SPEED.
(Change speed)
Press REC.
(Start Recording)
Panasonic Consumer Electronics
Company, Division of Matsushita
Electric Corporation of America
One Panasonic Way Secaucus,
New Jersey 07094
Panasonic Sales Company,
Division of Matsushita Electric of
Puerto Rico, Inc. (“PSC”)
Ave. 65 de Infanten'a. Km. 9.5
San Gabriel Industrial Park, Carolina,
Puerto Rico 00985
Printed in Japan
LSQT0191A
S1199-0
