code is displayed in FIP.
4.1.2. USAGE SCREEN MODE
Function displayed on the TV monitor:
- the total elapsed ”Cylinder rotation ”time (in hours)
1. With power turned on and no cassette, press CH DOWN button on
VCR and 7 key on remote together.
(The USAGE SCREEN will be displayed on the TV Monitor.)

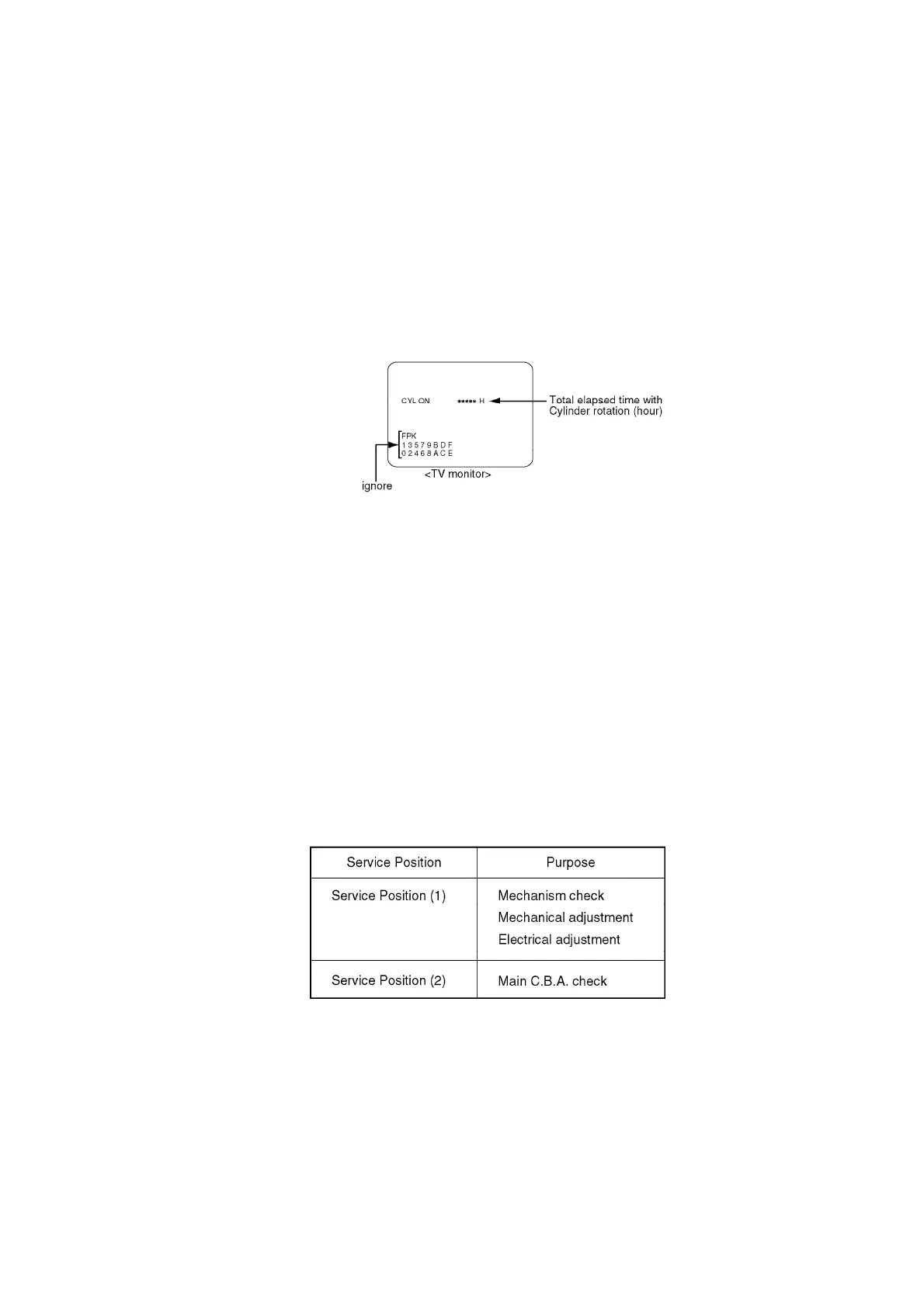

Fig. 2
Note:
1. After replacing the Cylinder Unit, press COUNTER RESET button on
remote in this mode. Total elapsed "Cylinder rotation" time (in hours)
will be cleared to 0.
2. To release from Usage Screen Mode, press any operation button on
VCR or insert a cassette tape in this mode. The VCR will return to
normal operation mode.
4.1.3. EEPROM IC (IC6005), MAIN C.B.A. REPLACEMENT NOTE
After replacing EEPROM IC (IC6005) or Main C.B.A., be sure to perform the "PG SHIFTER
ADJUSTMENT" in ELECTRICAL ADJUSTMENT procedures.
4.1.4. SERVICE POSITION
4.1.4.1. Service Position
CAUTION:
HOT CIRCUIT (Primary circuit) exists on the Main C.B.A.
Use extreme care to prevent accidental shock when servicing.
4.1.4.1.1. Service Position (1)
Fig. 3-1
7
To Next Page
