Panasonic Palmcorder Multicam PV-GS34PKG User Manual

11

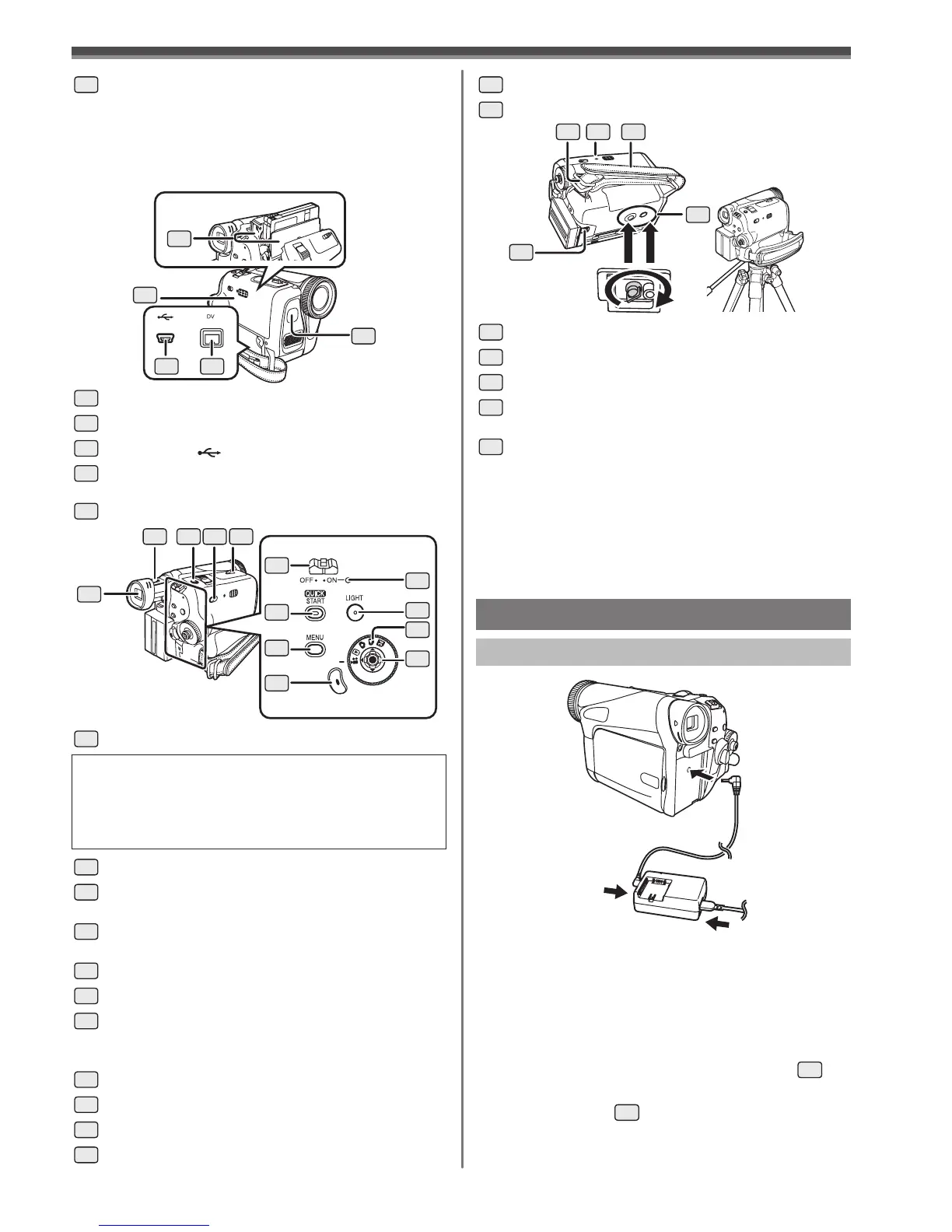

Before Using
Due to limitations in LCD production technology,
there may be some tiny bright or dark spots on the
Viewfinder screen.
However, this is not a malfunction and does not
affect the recorded picture.
20
18
16
19
17
15
Audio-Video Output Jack [AV OUT]
(pp. 36, 37)
• Connecting an AV Cable to this jack activates
the Camcorder’s built-in speaker.
• When connecting the pin plug of the AV Cable
to this jack, plug it in as far as it goes.
16
Cassette Holder
17
Cassette Compartment Cover (pp. 13~14)
18
USB Jack [ ] (pp. 40, 41, 43)
19
DV Input/Output Terminal (pp. 37, 38)
• Connect this to the digital video equipment.
20
Built-in LED Light (p. 24)
21
Viewfinder (pp. 16~17, 59)
22
Eyepiece Corrector Knob (p. 17)
23
Photoshot Button [PHOTO SHOT]
(pp. 22, 23)
24
Mode Selector Switch
[AUTO/MANUAL/FOCUS] (pp. 22, 28~31)
25
Cassette Eject Lever [OPEN/EJECT] (p. 13)
26
Power Switch [OFF/ON] (pp. 15, 22)
27
Quick Start Recording Button [QUICK
START] (p. 25)
Quick Start Recording Lamp (p. 25)
28
Menu Button [MENU] (p. 17)
29
Recording Start/Stop Button (p. 22)
30
Power Lamp [POWER] (p. 15)
31
Light Button [LIGHT] (p. 24)
34
Shoulder Strap Holders (p. 13)
35
Reset Button [RESET] (pp. 59, 61, 62)
36
Grip Belt (p. 13)
37
Battery Eject Switch [BATTERY RELEASE]
(p. 12)
38
Tripod Receptacle
• This is a hole for attaching the Camcorder
to optional tripod. (Please carefully read the
Operating Instructions for how to attach the
tripod to the Camcorder.)
• You cannot open the Card Slot Cover when
the tripod is used. Insert the card first and then
attach the tripod.
34 36
37
35
38
22 23 24 25
26
27
28
29
30
32
21
31
33
32
Mode Dial (p. 15)
33
Joystick Control (pp. 15~16, 17~18)
Power Supply
Using the AC Adaptor
1 Connect the DC Cable to the Camcorder.
2 Connect the DC Cable to the AC Adaptor.
3 Connect the AC Cable to the AC Adaptor
and the AC Jack.
• Before connecting or disconnecting the
power supply, set the [OFF/ON] Switch
26
on
the Camcorder to [OFF] and make sure that
[POWER] Lamp
30
is not lit. (p. 15)
